MK2 Escort Mexico Cosworth NAYB


Our latest restoration project is this MK2 Escort Mexico already fitted with a normally aspirated Cosworth YB Engine, although a reasonably tidy looking Mexico looks can be deceiving.

Like most good Mk2 Escorts, years of patching, repaints and various mods has left this Mexico in need of a full strip down and some TLC.

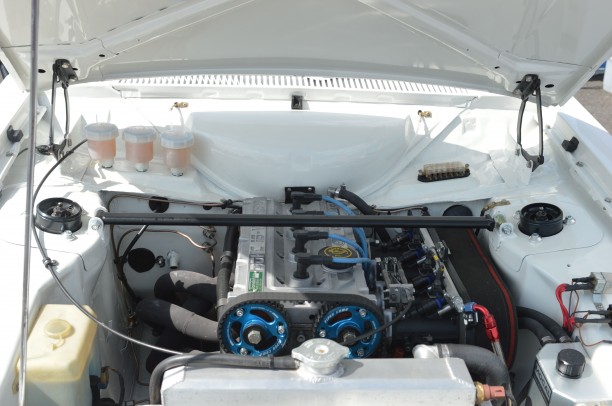

Fitted with a NYAB YB Cosworth engine built by Jondell Racing, mated to a 4 speed Quaife straight cut gearbox, narrowed Atlas axle with a  ZF limited Slip dif, Hi spec front brakes and compression struts and resting on a set of 7J RS 4 spokes.

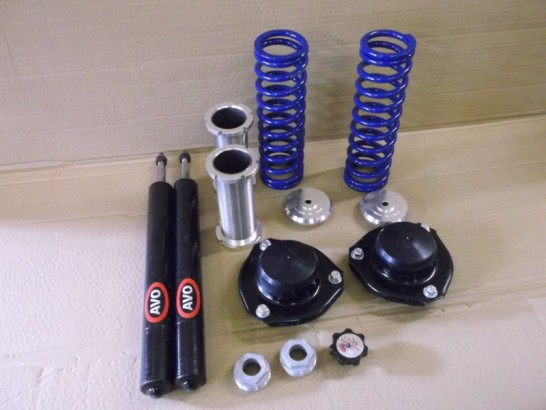

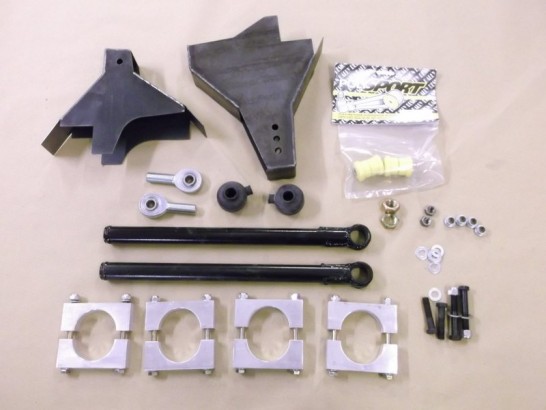

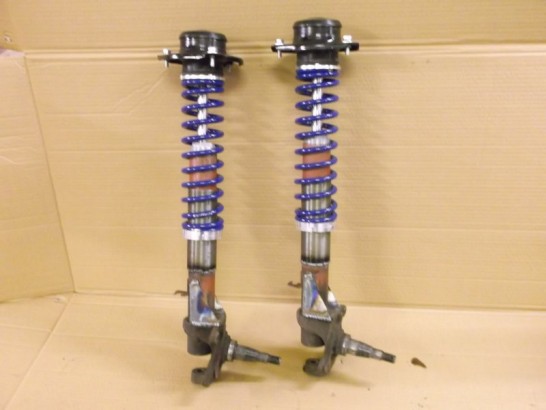

Unhappy with the quality of the installation and mods carried out on the Mexico, Jeremy is looking to rectify the issues and add more upgrades during the restoration; these include an alloy fuel tank and external swirl pot,  rear roll cage,  watts linkage,  rear disc kit, Avo inserts on the front and coil overs.

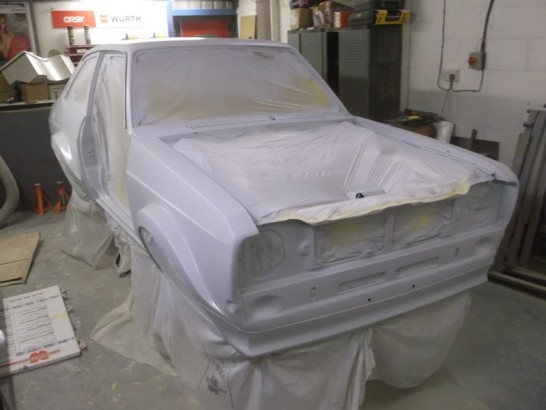

The car will be re finished in its original Diamond white

DSCF0039

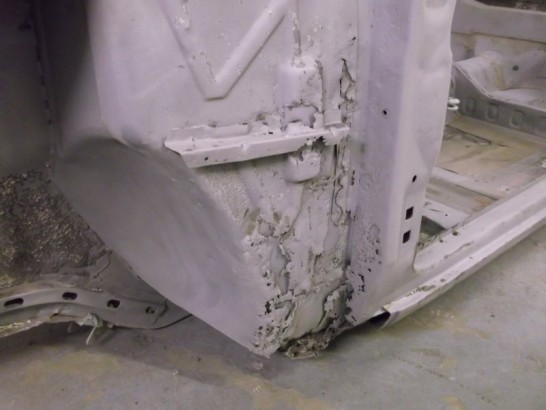

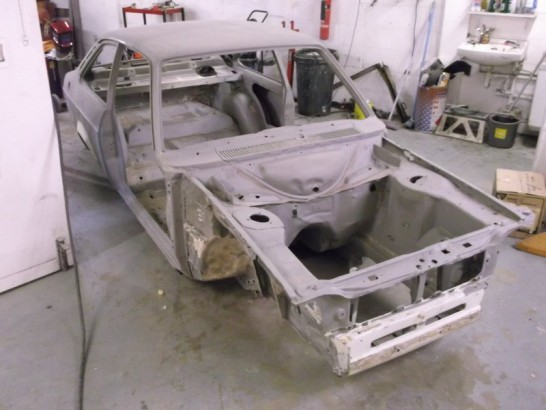

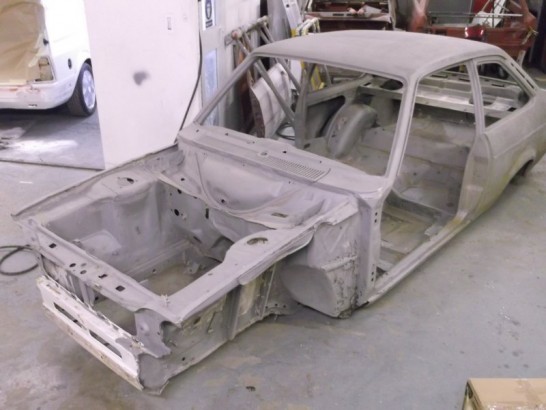

Stripped and blasted the true condition of the Mexico is revealed and its not good,DSCF0040 DSCF0041

Years of corrosion and numerous dodgy repairs has left the shell in desperate need of some new panels.

DSCF0042

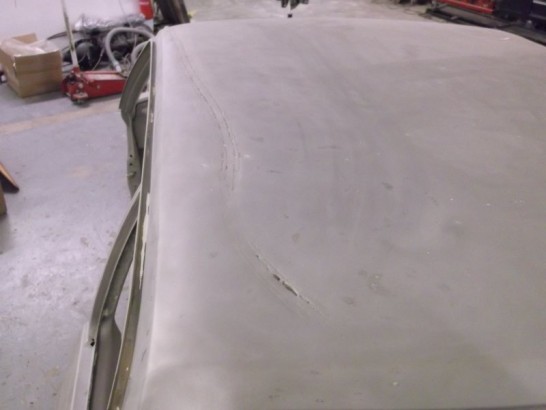

The Mexico has also suffered some accident damage over the years.

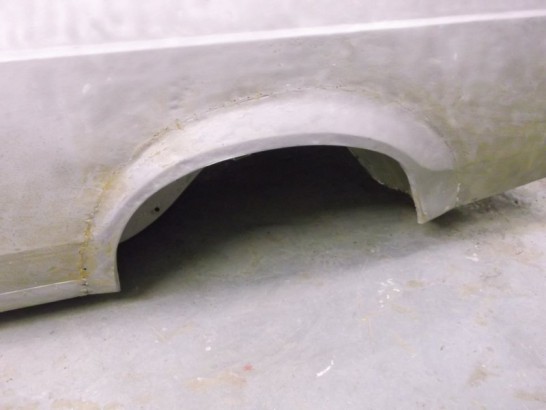

DSCF0043

The arches have been replaced at some time and have not been fitted very well so the owner has decided its finally  time to fit a set of Tarmac Arches.

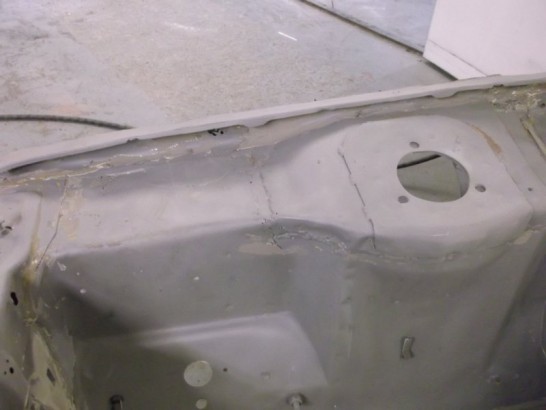

DSCF0045

The inner wings have previously been replaced due to some accident damage and have since been patched up various times so a new pair have been sourced.

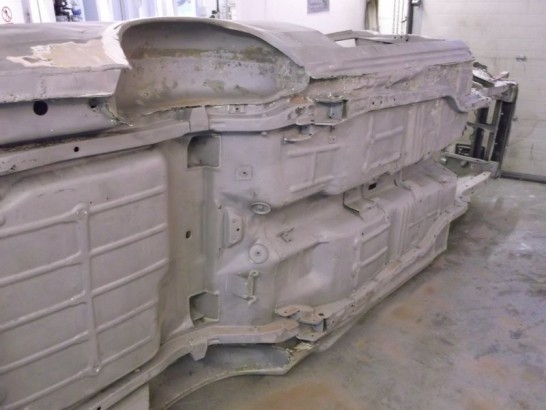

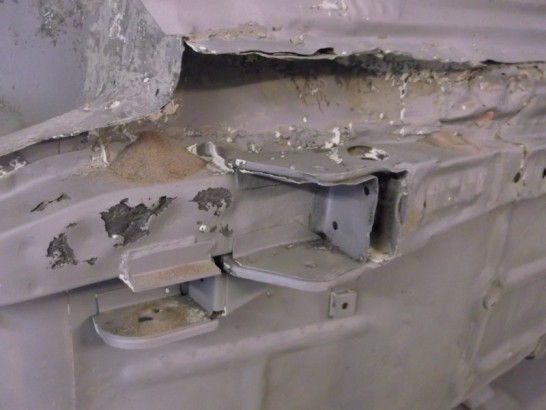

DSCF0046 DSCF0047

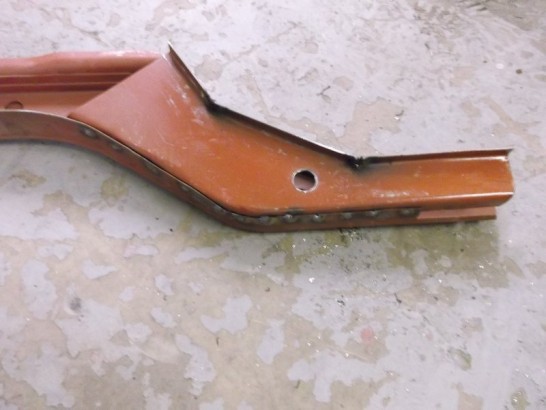

Five out of six of the chassis sections are riddled with corrosion so a combination of genuine Ford and pattern panels have been sourced.

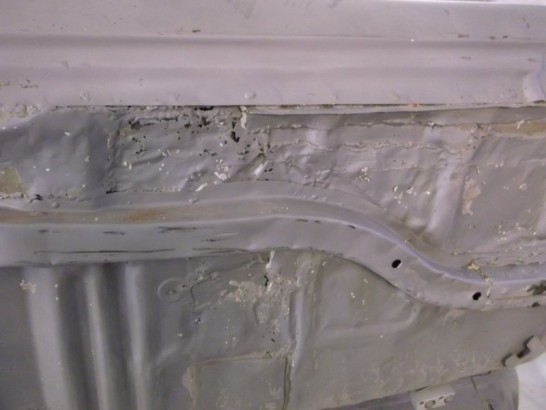

DSCF0048

The floor has also seen its fair share of corrosion and damage.

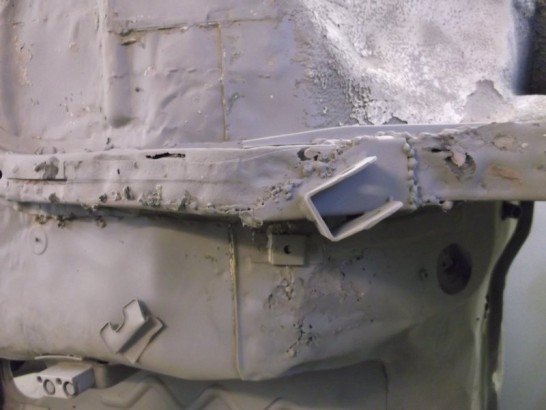

DSCF0049 DSCF0050

New compression strut brackets will be fitted once the new chassis sections have been fitted.

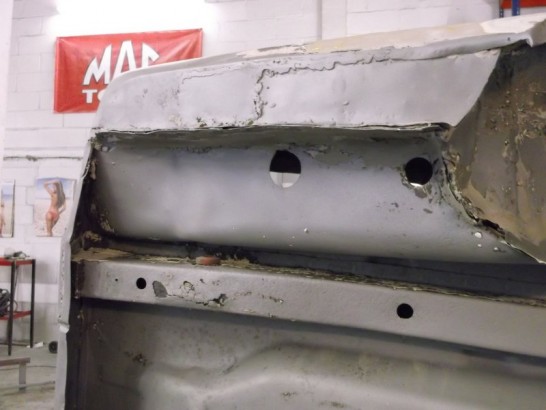

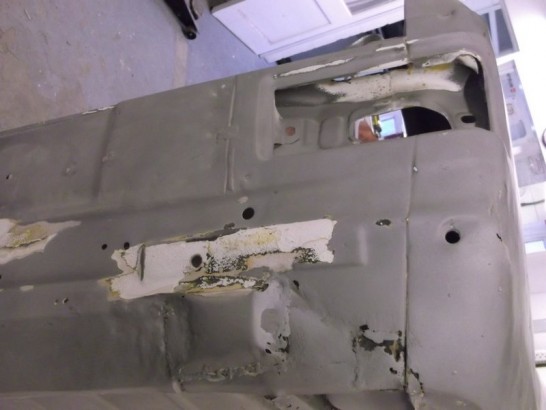

DSCF0051 DSCF0052

DSCF0068

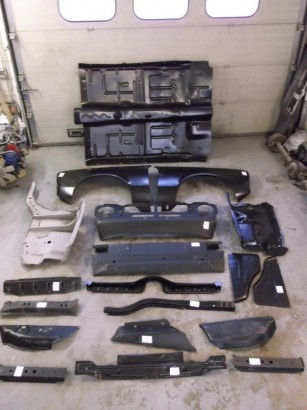

A selection of the panels needed to bring the Mexico back to its former glory.

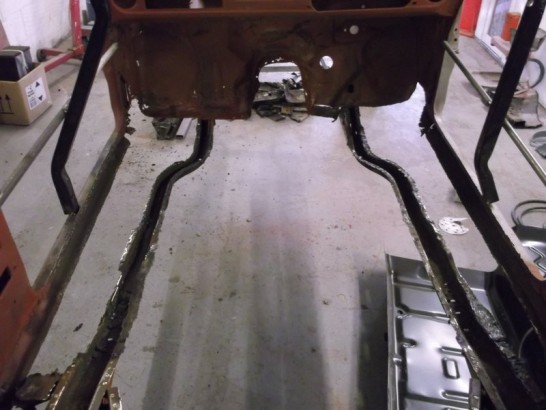

DSCF0112

Starting with the floor section the shell has been braced to maintain the cars integrity.

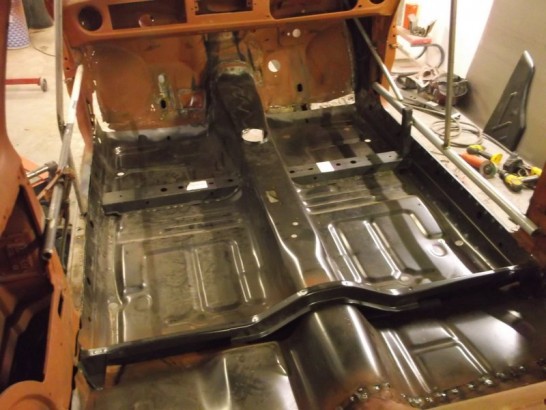

DSCF0132

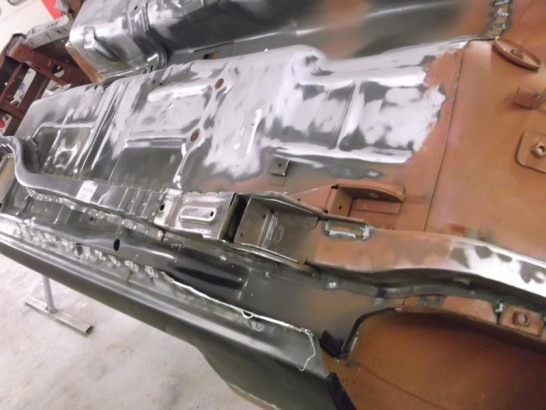

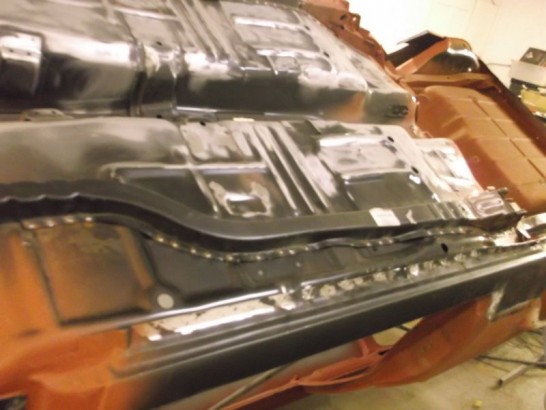

A recently new item on the market the the one piece complete floor pan is slotted into place and welded.

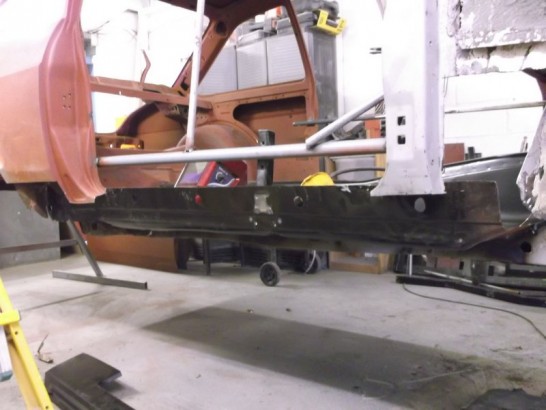

DSCF0121

With the new floor pan welded in place the outer sills can be removed .

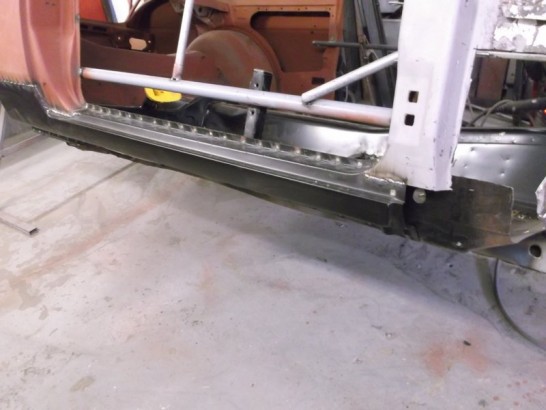

DSCF0124

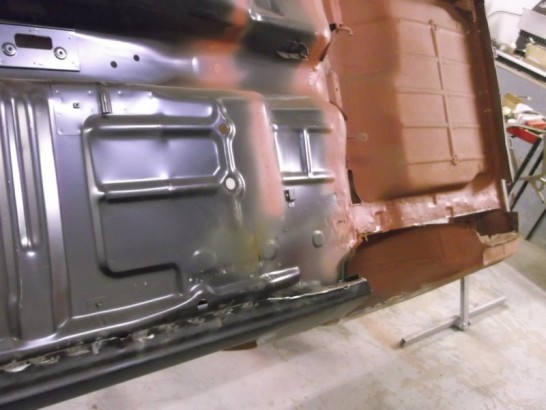

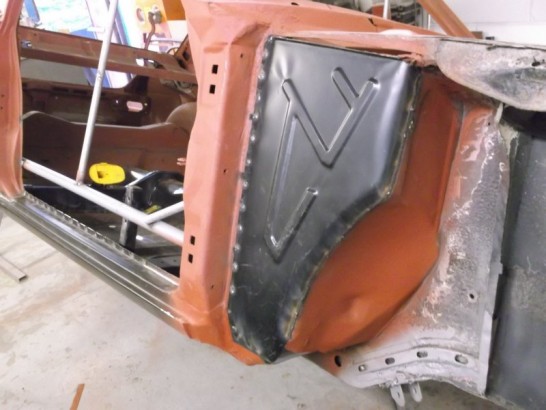

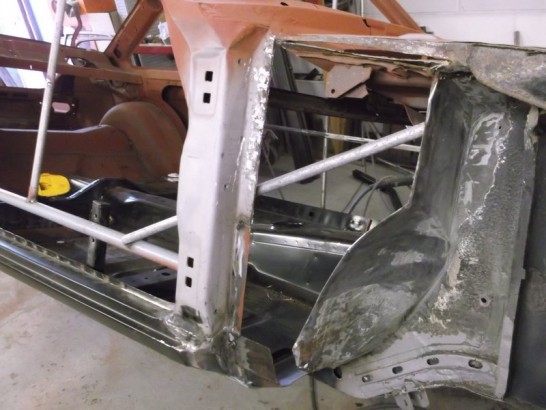

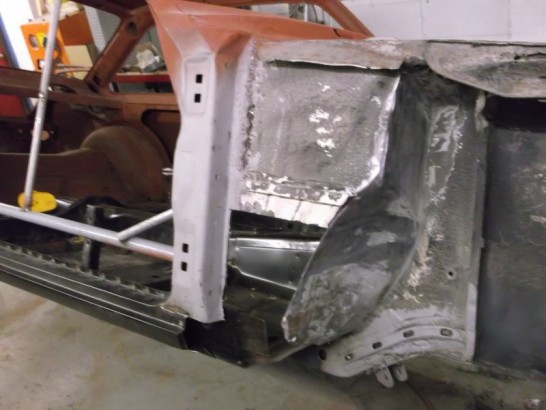

DSCF0127 DSCF0128 DSCF0129 DSCF0160 DSCF0161 DSCF0175 DSCF0178

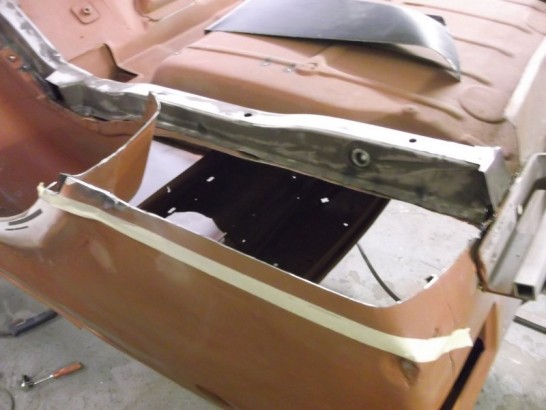

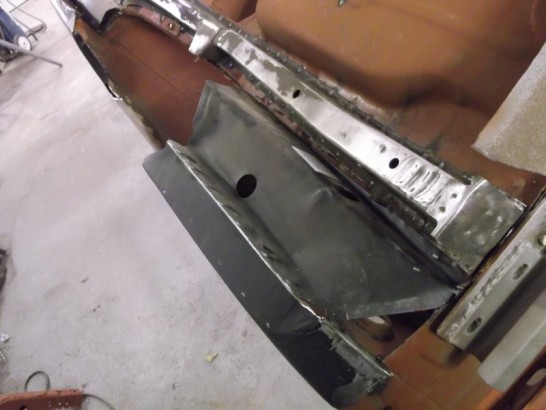

DSCF0172 DSCF0177

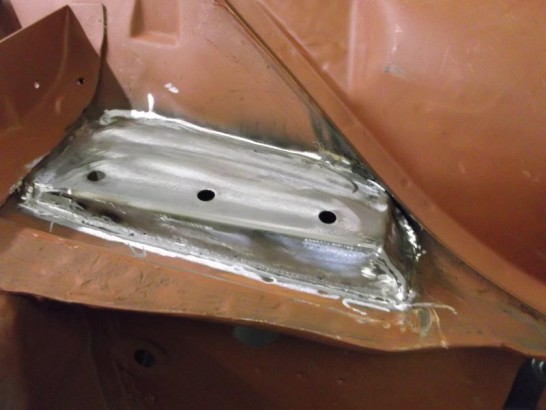

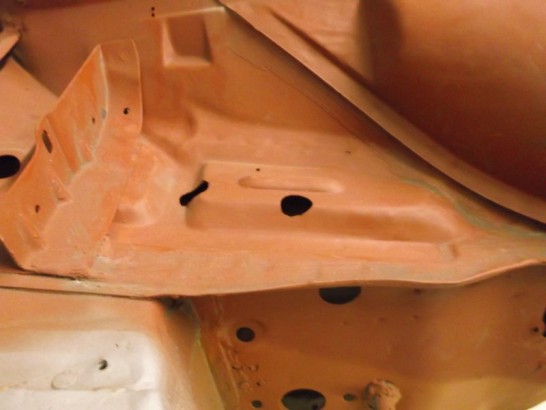

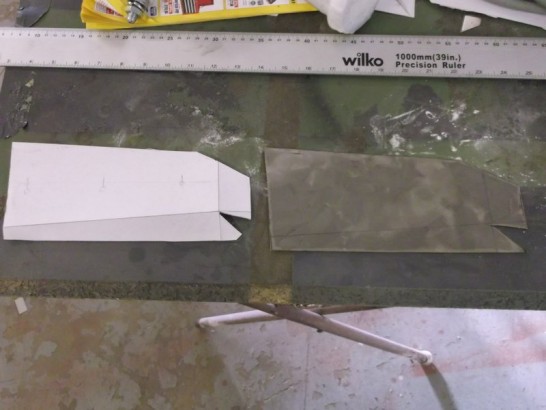

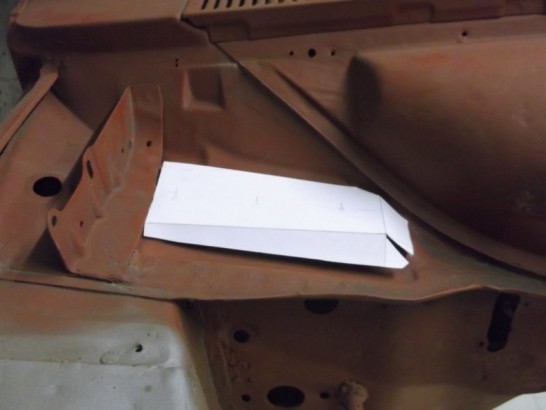

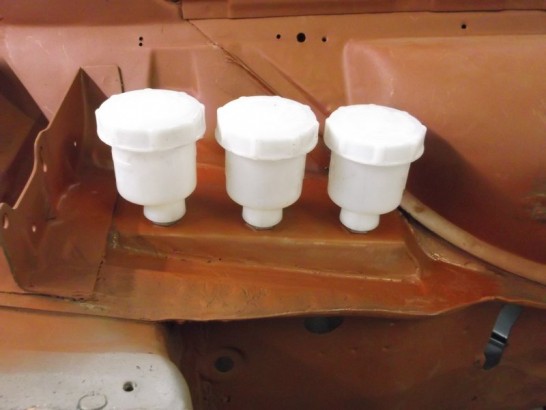

DSCF0146 DSCF0145 DSCF0147 DSCF0149 DSCF0150

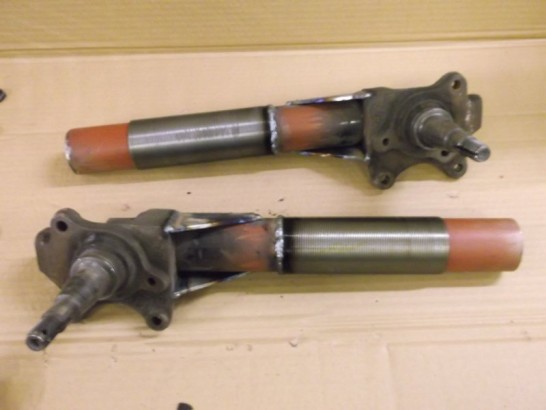

DSCF0110 DSCF0113 DSCF0114 DSCF0116

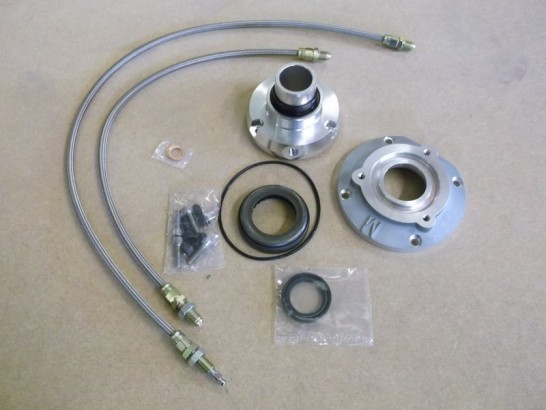

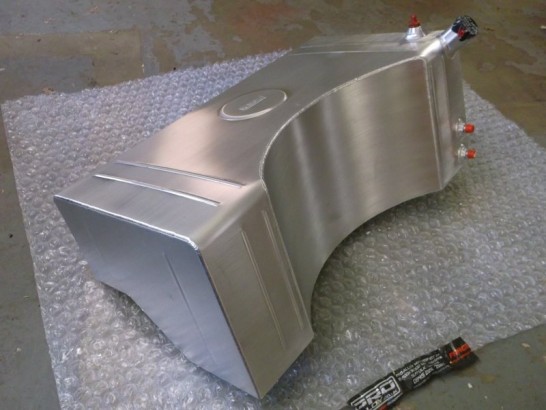

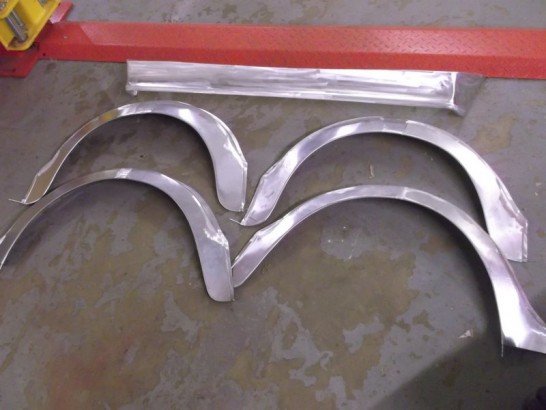

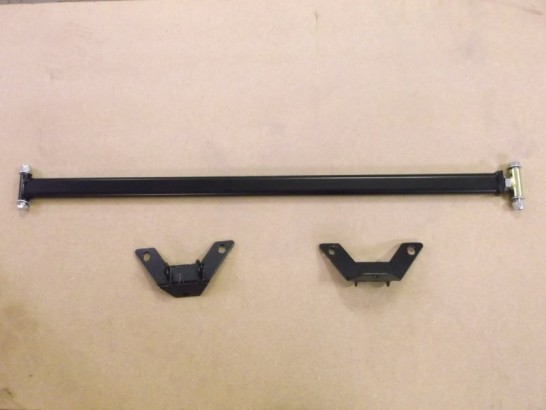

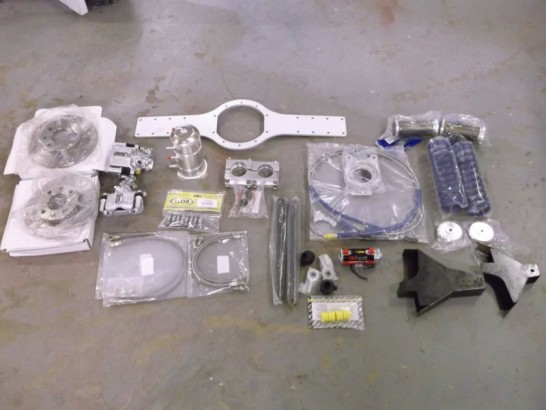

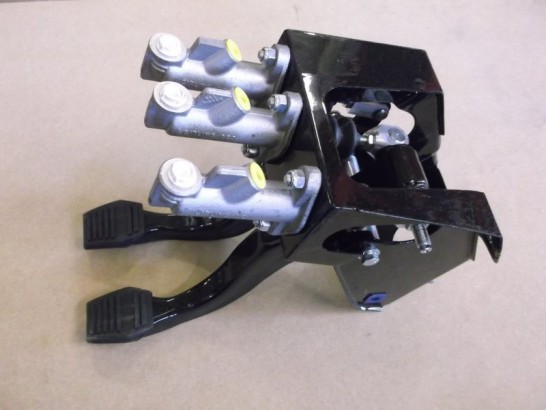

DSCF0022 DSCF0154 DSCF0155 DSCF0158 DSCF0173 DSCF0174

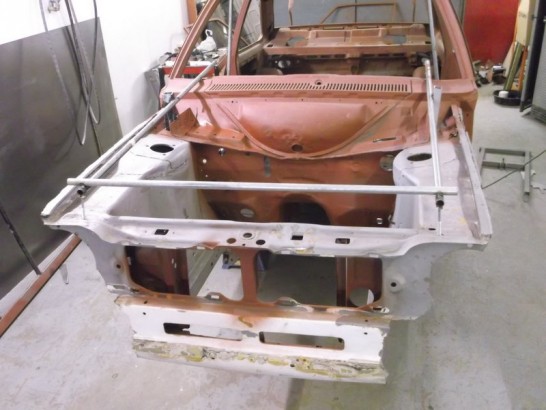

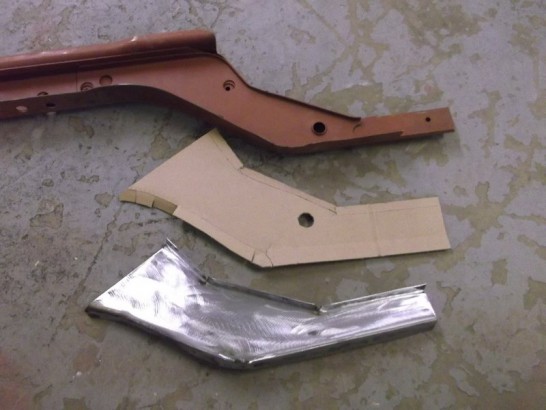

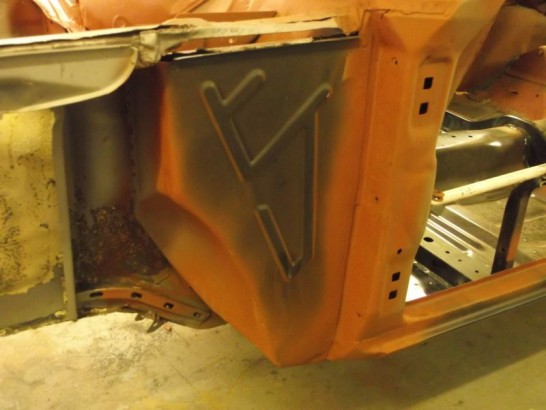

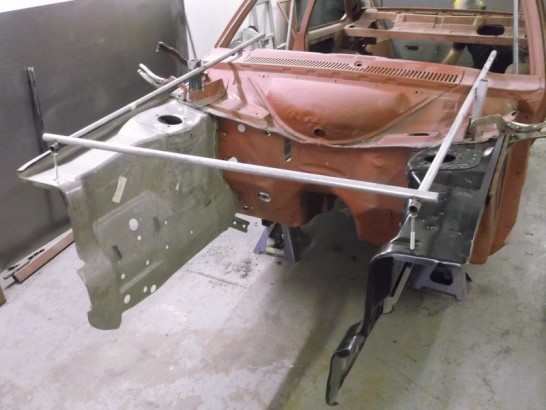

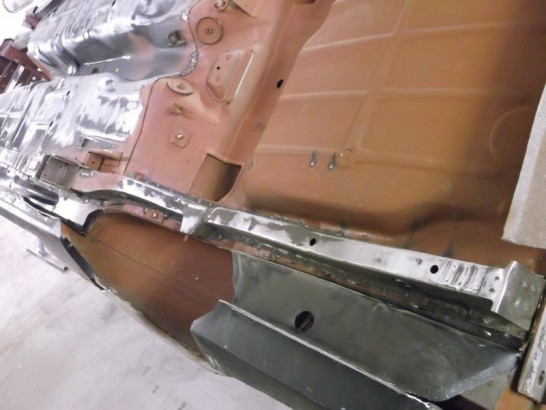

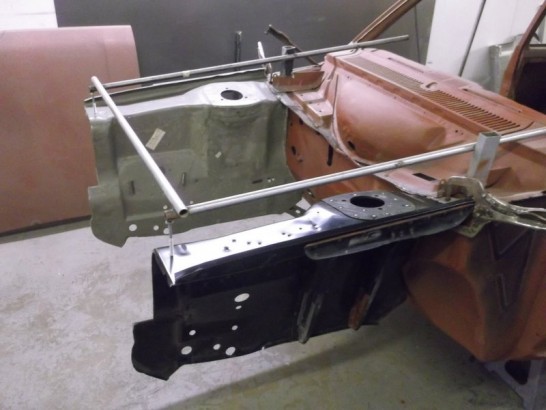

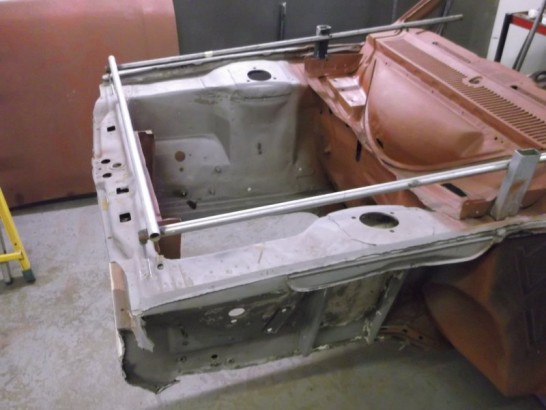

DSCF0160 DSCF0161 DSCF0172 DSCF0175 DSCF0176 DSCF0178 DSCF0181 DSCF0182 DSCF0187 DSCF0188 DSCF0189DSCF0192

DSCF0193

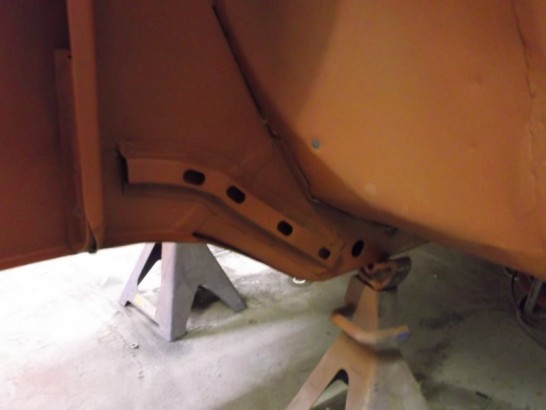

DSCF0280

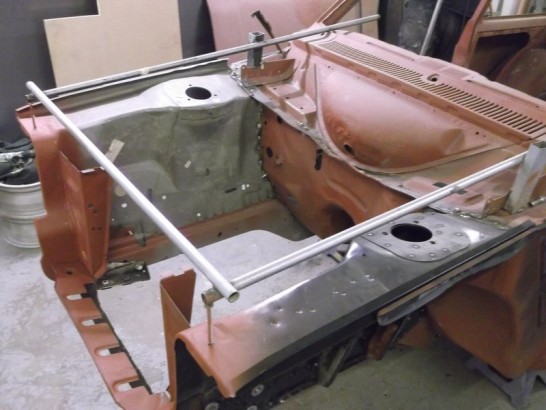

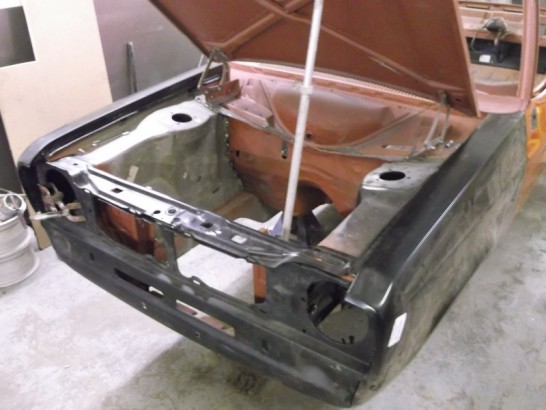

DSCF0194 DSCF0196 DSCF0198

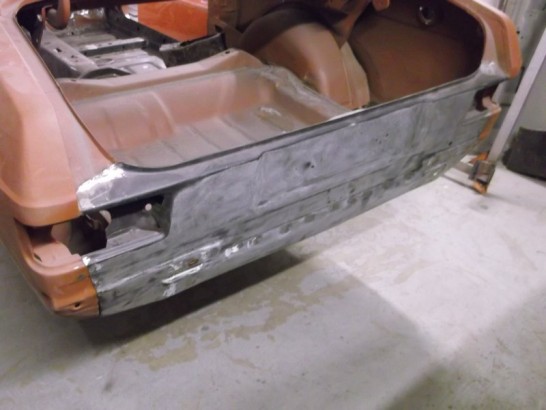

DSCF0276

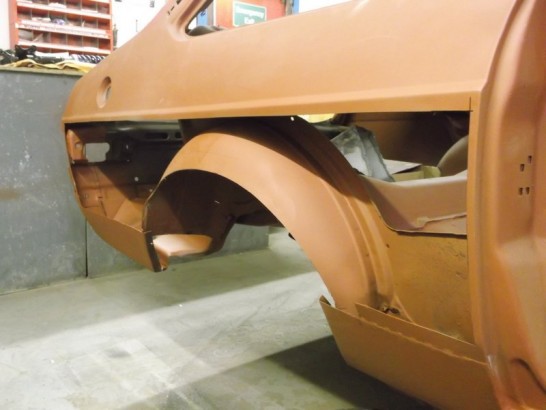

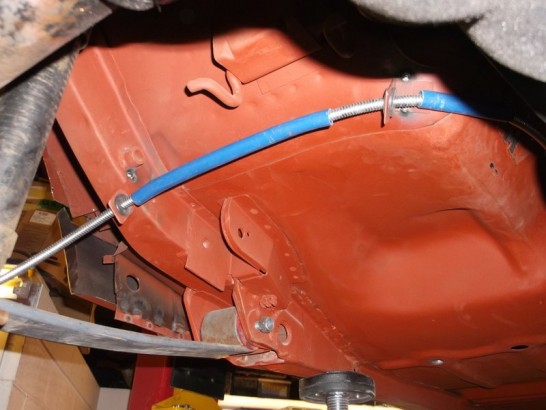

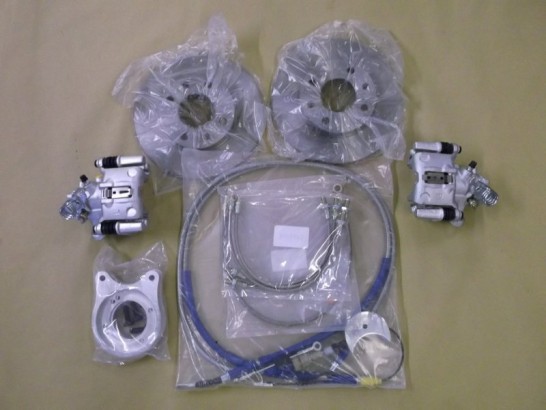

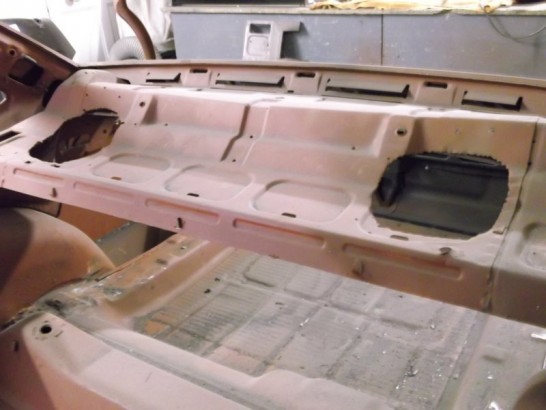

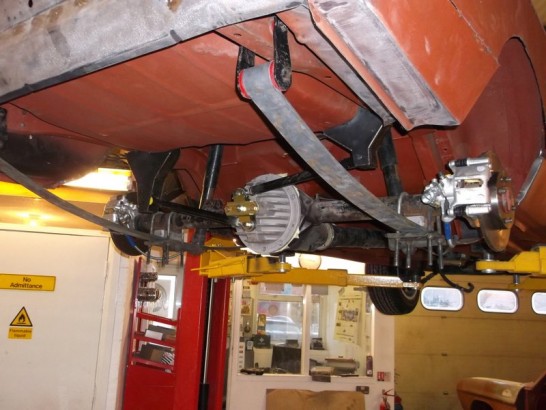

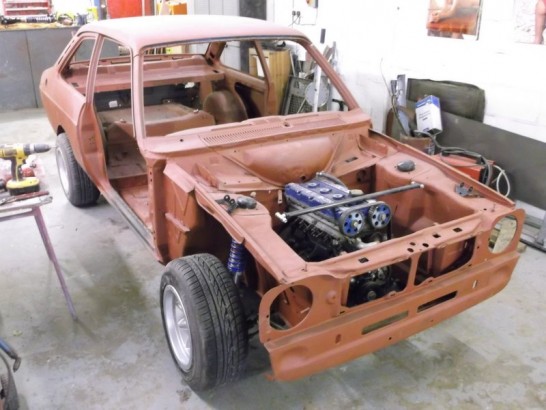

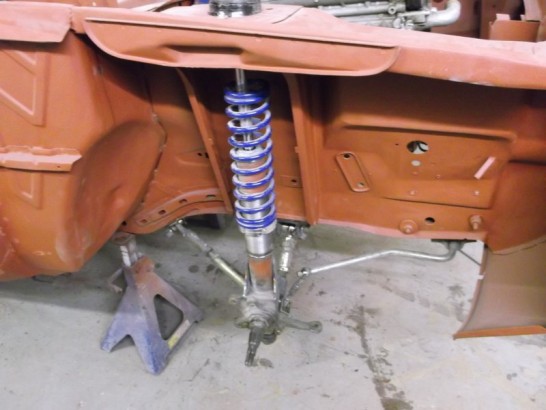

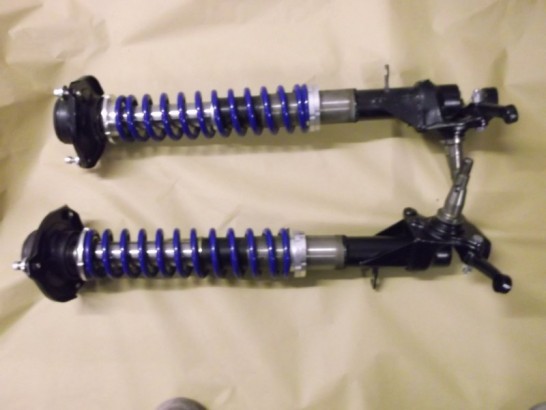

DSCF0228 DSCF0229 DSCF0232 DSCF0274 DSCF0310 DSCF0311 DSCF0312 DSCF0316 DSCF0318 DSCF0321 DSCF0329 DSCF0330 DSCF0331 DSCF0334 DSCF0335 DSCF0343

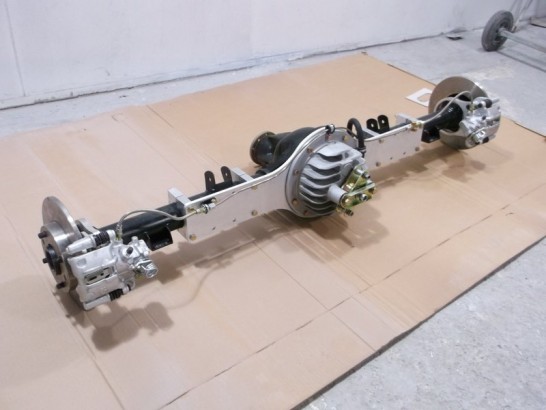

DSCF0636_zps5b9a8fe3

DSCF0628-001

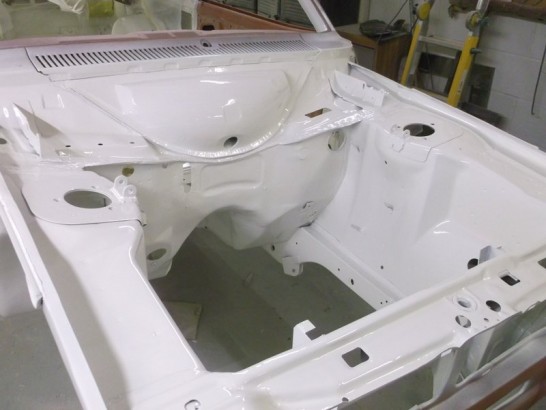

DSCF0611-001

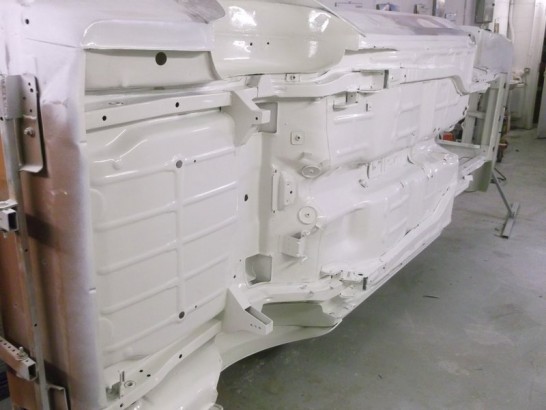

DSCF0612-001

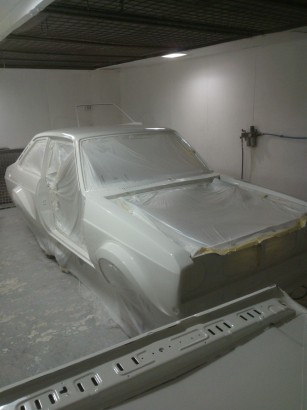

IMG_1036

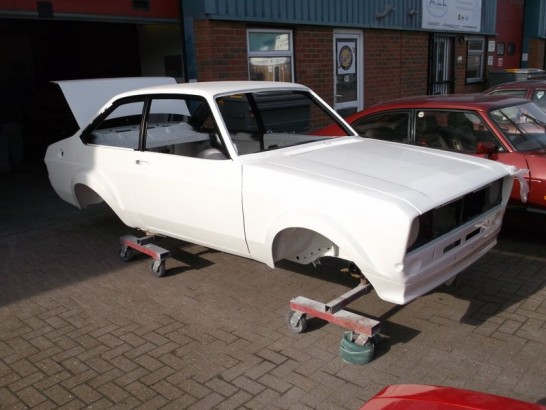

DSCF0644_zps27a9c7db

DSCF0646_zpsdcacce65

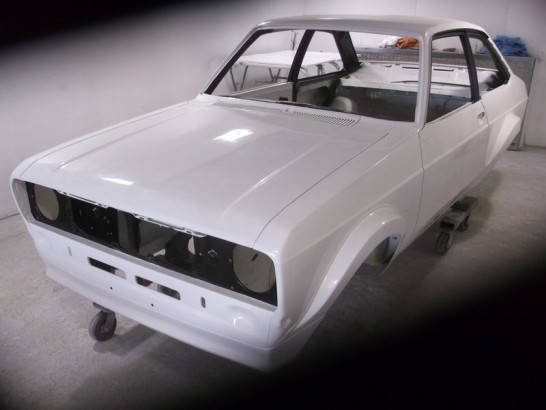

DSCF0630_zps35406507

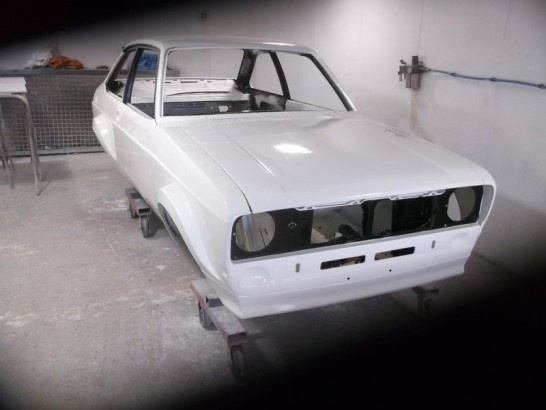

DSCF0629_zpsb9fbf8ba

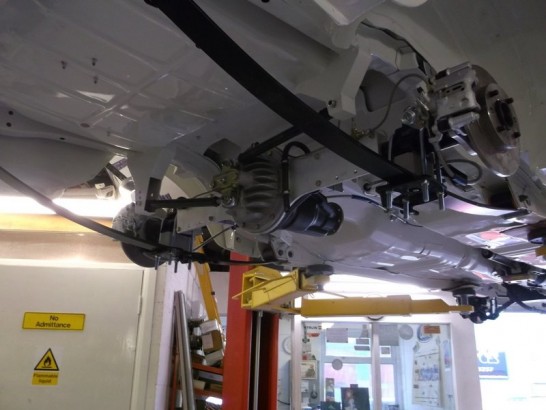

DSCF0659

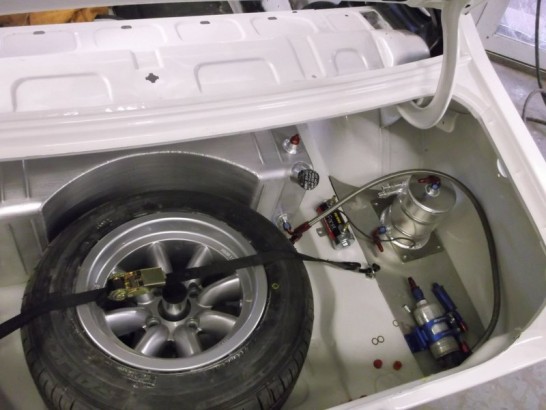

DSCF0653

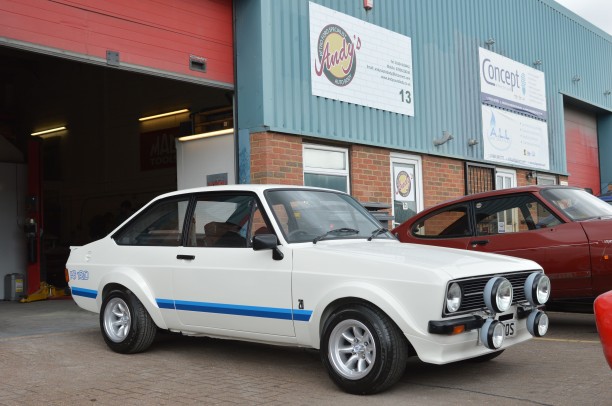

DSC_0066

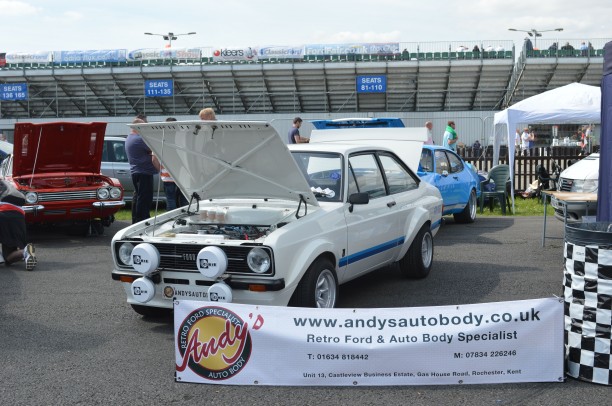

DSC_0137

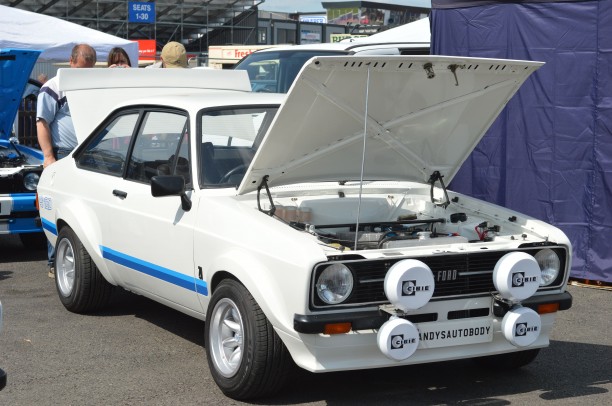

DSC_0133

DSC_0143

DSC_0117

DSC_0118

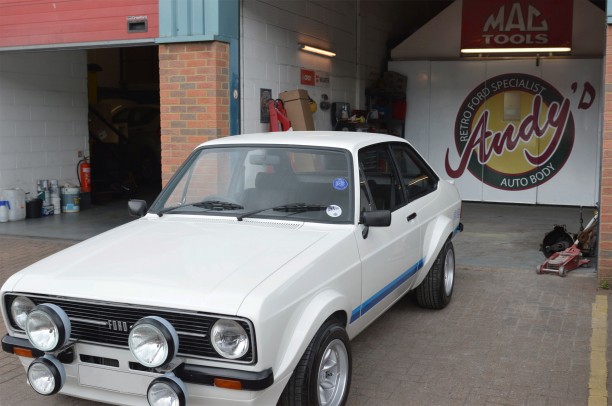

DSC_0063-copy
