Mk1 Escort Mexico Current Project


Rescued from the back of a barn after 15 years; with a fair amount of corrosion combined with some damage to the rear quarter means this Mk1 is in desperate need of a long list of new panels, arriving already stripped to a bare shell by the owner and media blasted.

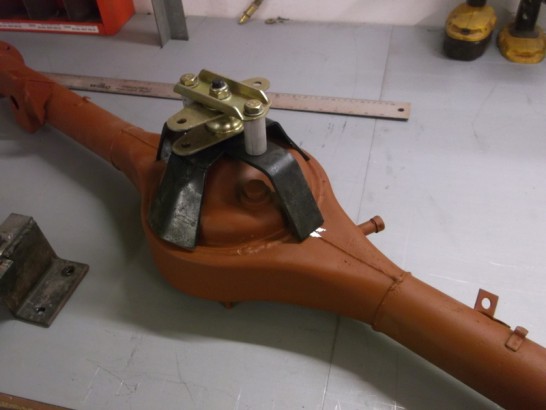

Along side the restoration some modifications will take place, these include a watts linkage,rear turrets, suspension and brake upgrades and a 5 speed conversion.

poster,375x360,ffffff

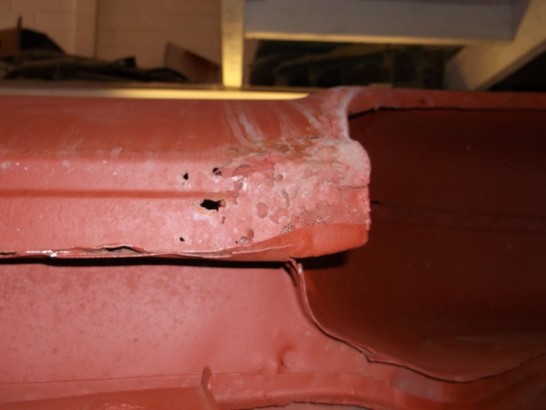

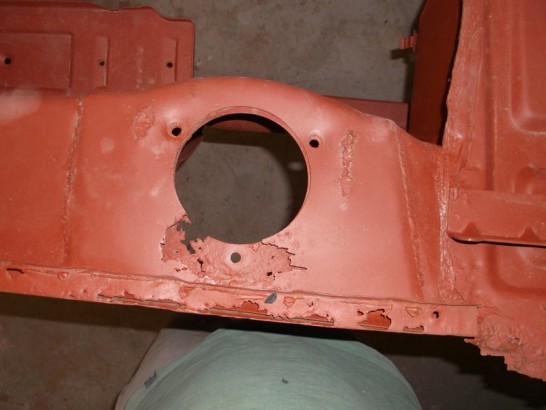

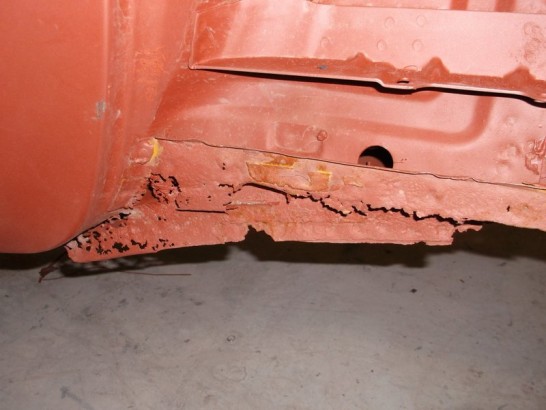

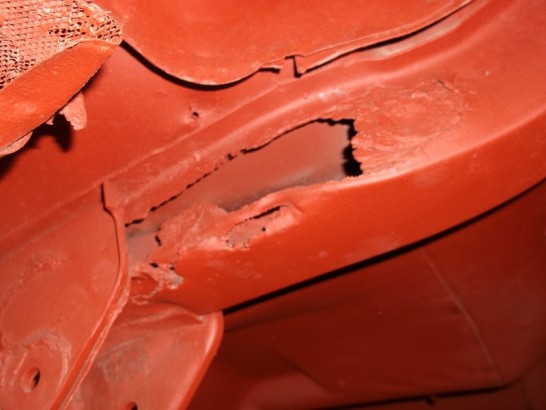

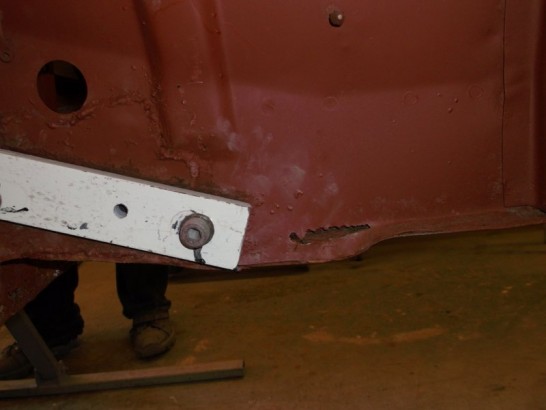

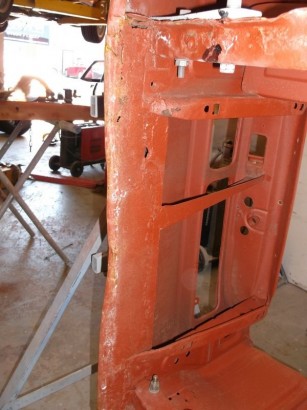

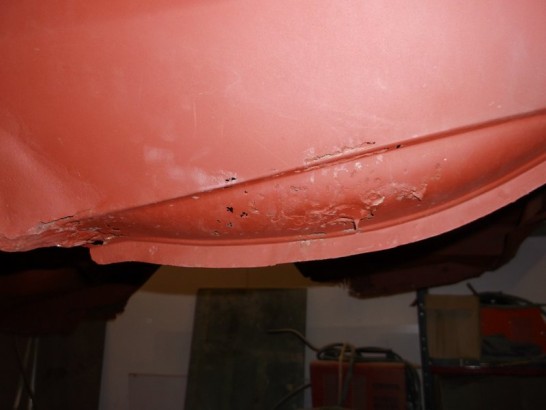

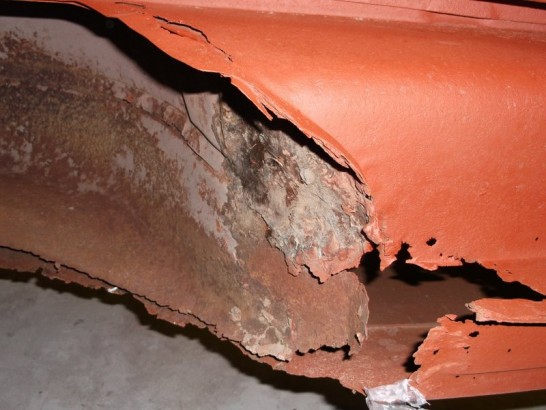

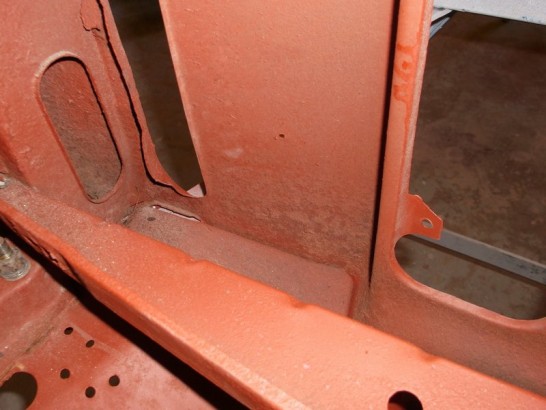

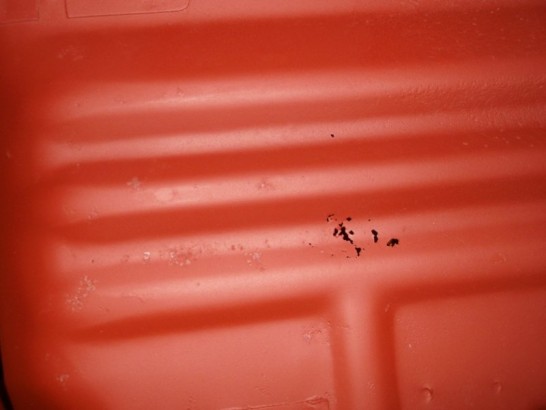

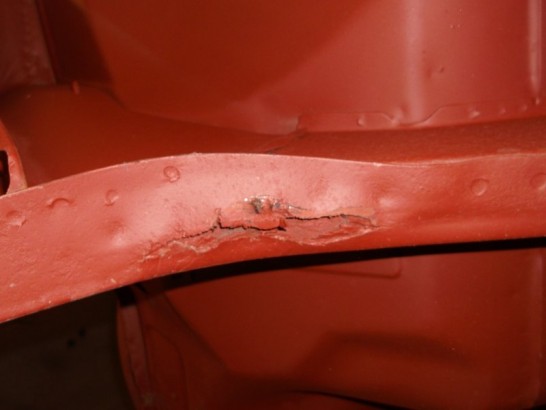

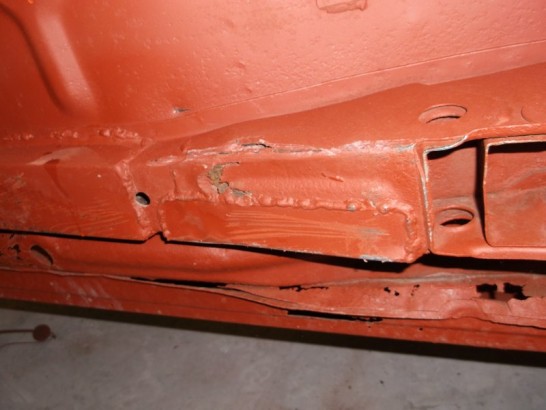

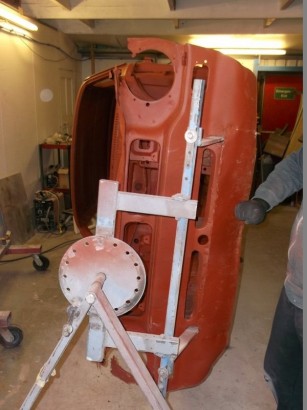

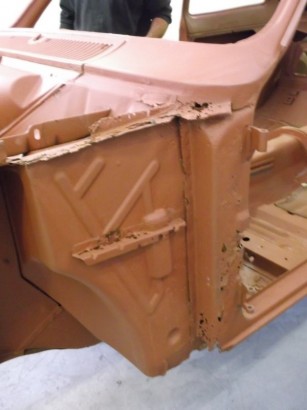

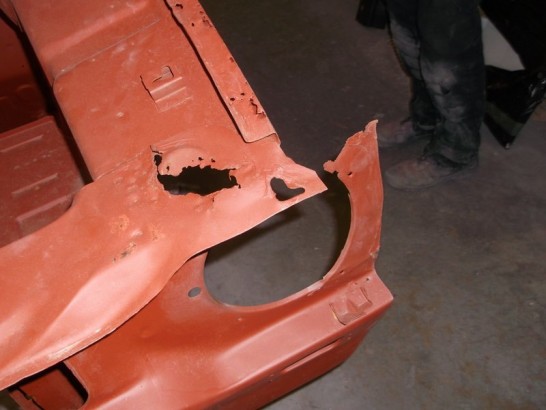

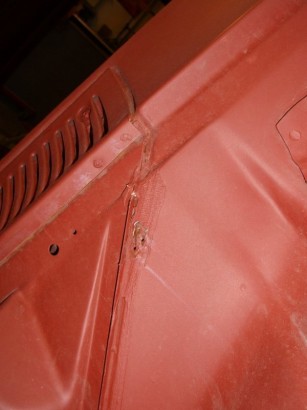

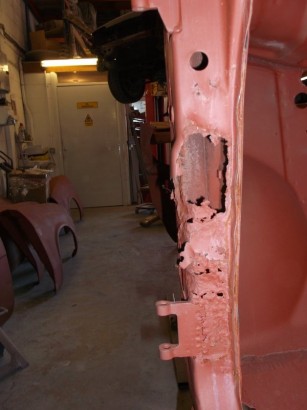

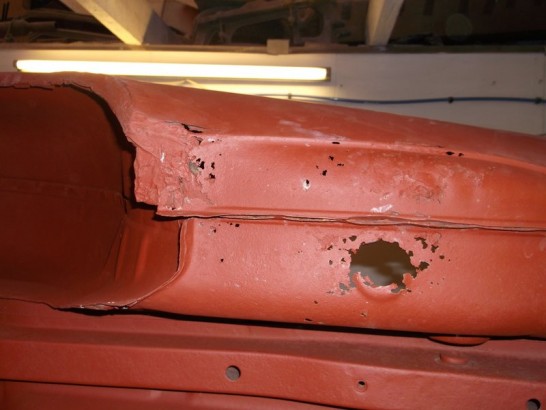

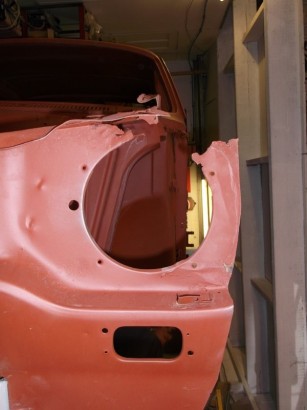

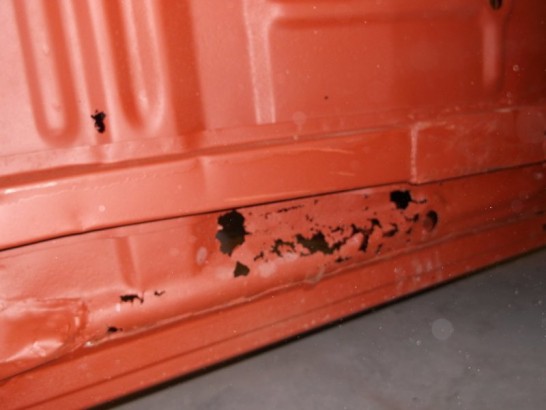

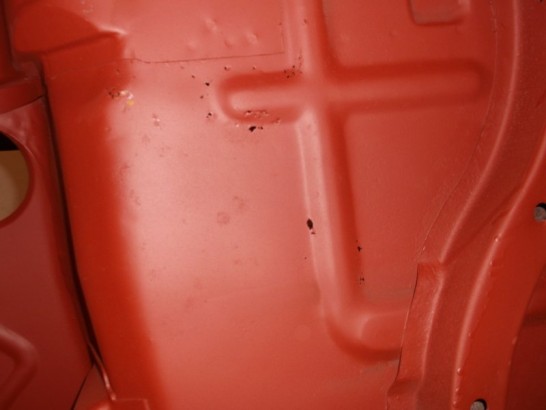

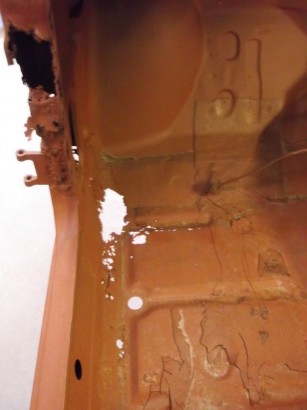

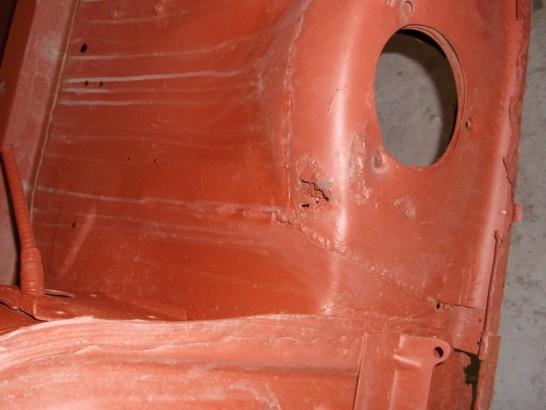

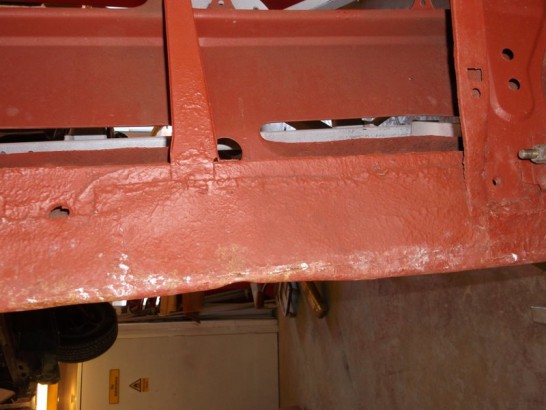

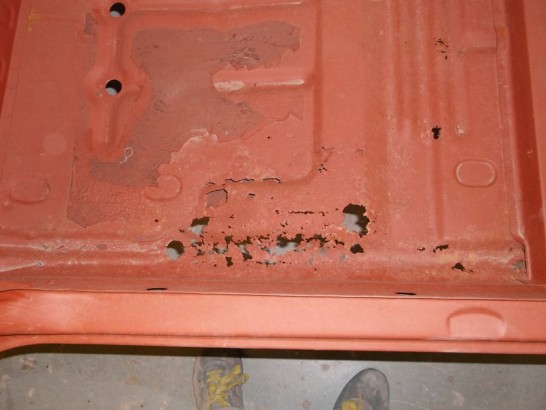

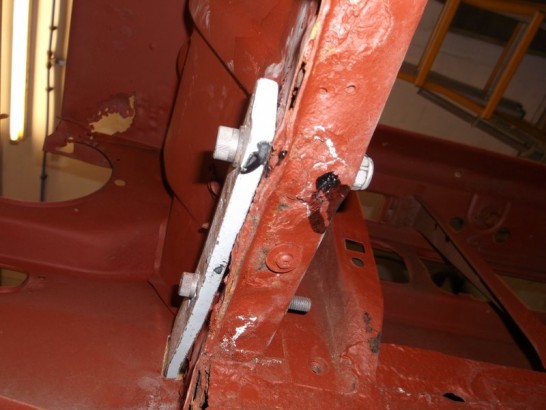

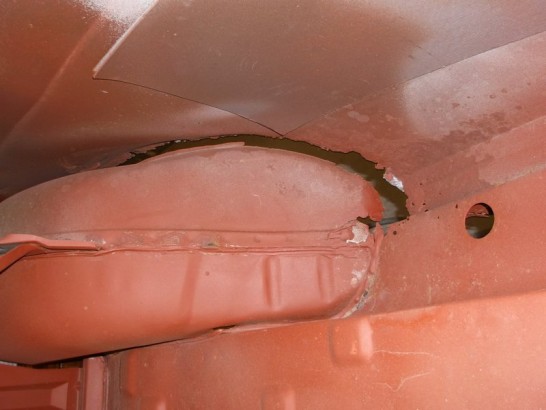

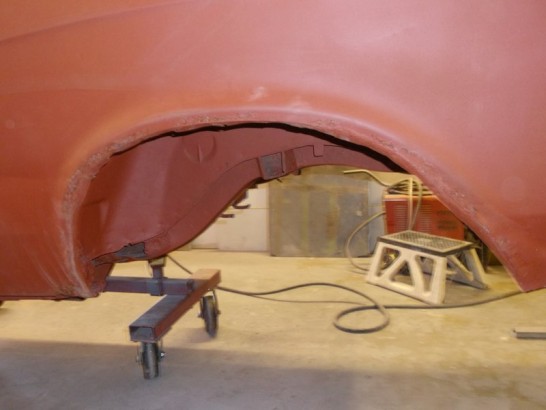

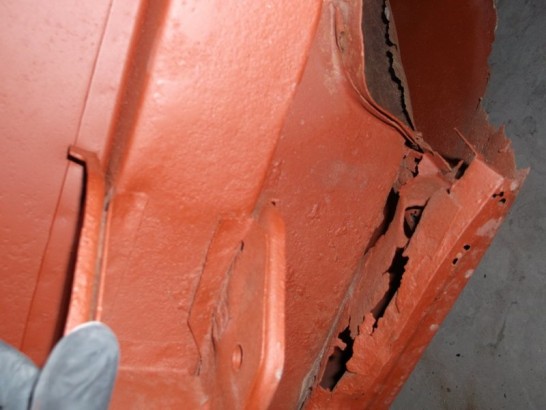

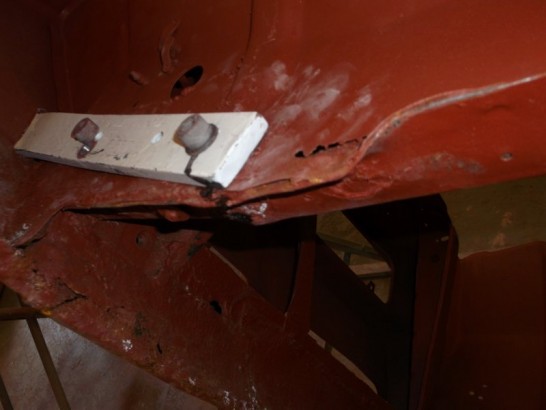

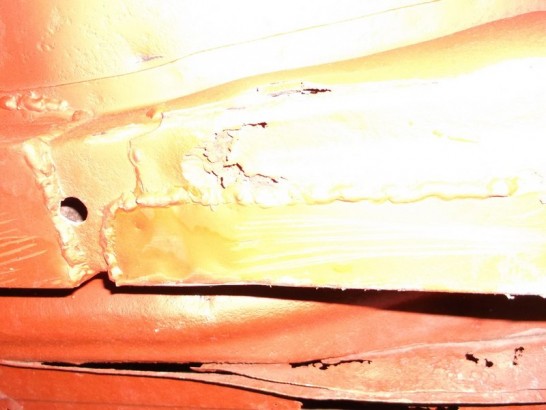

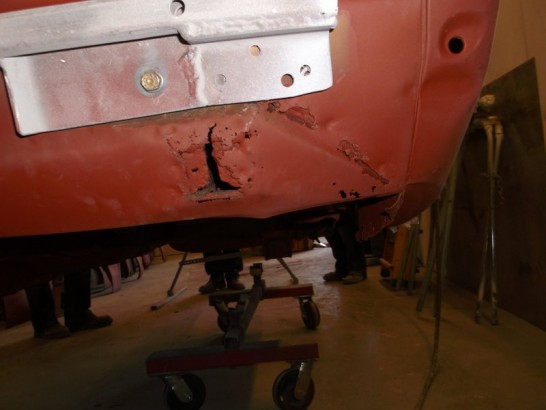

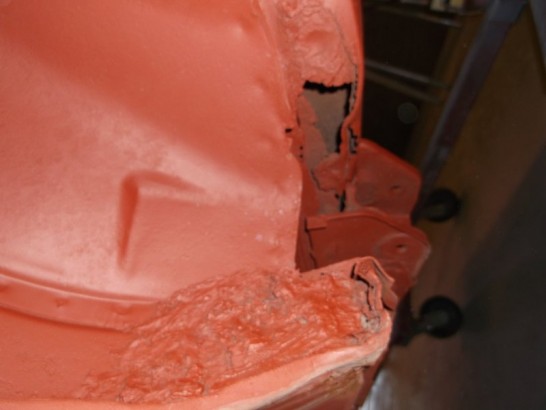

DSCF0884 DSCF0885 DSCF0886 DSCF0888 DSCF0890 DSCF0891 DSCF0893 DSCF0894 DSCF0895 DSCF0897 DSCF0898 DSCF0901 DSCF0904 DSCF0905Just about every panel on the Escort has suffered extensive corrosion with the exception of the roof, boot floor and the rear firewall.DSCF0906 DSCF0907 DSCF0908 DSCF0912 DSCF0913 DSCF0914 In addition to the corrosion the Escort has had its fair share of mot type repairs.  DSCF0915 DSCF0916 DSCF0920 DSCF0919 DSCF0918 DSCF0917 DSCF0924 DSCF0934 DSCF0935 DSCF0936 DSCF0937 DSCF0940 DSCF0942

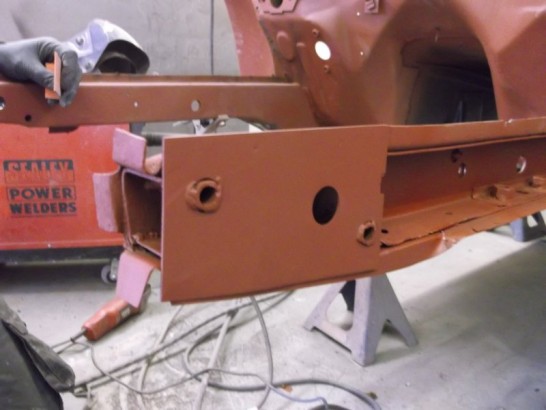

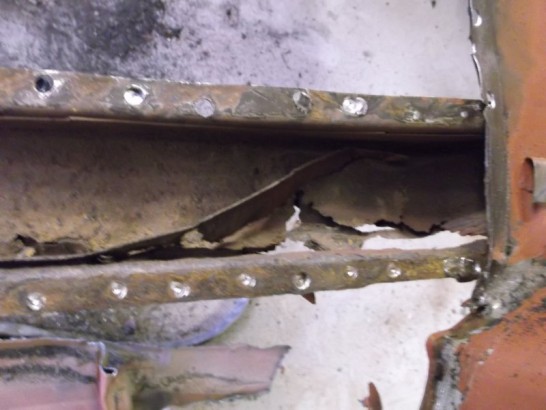

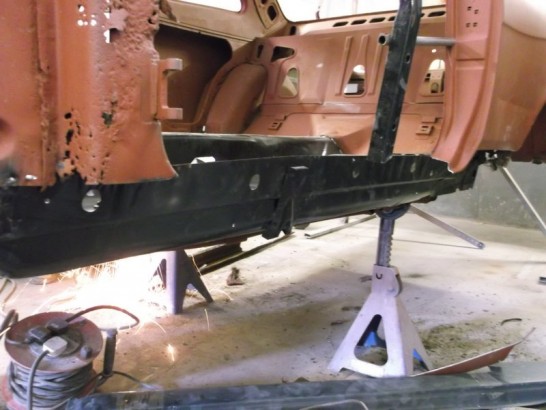

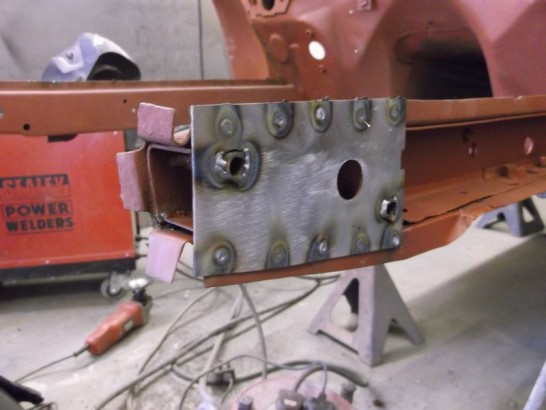

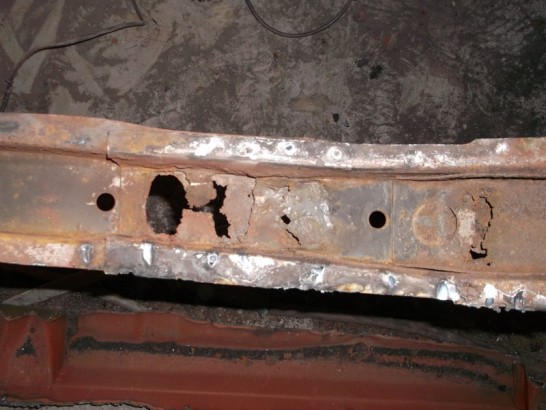

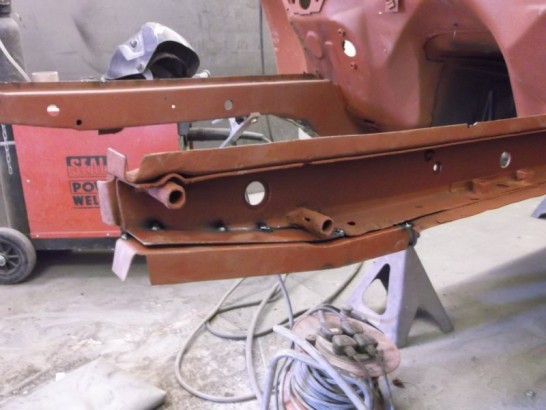

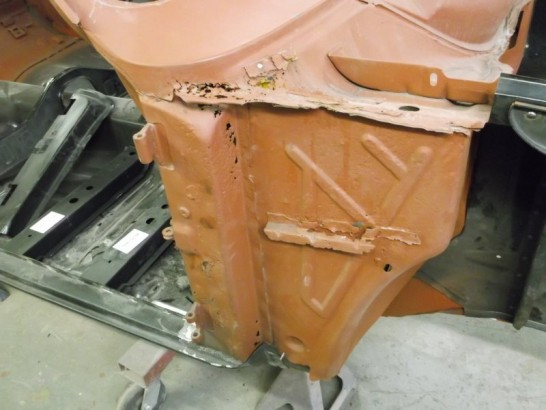

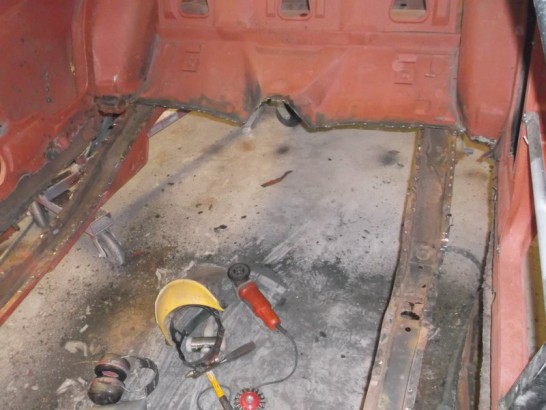

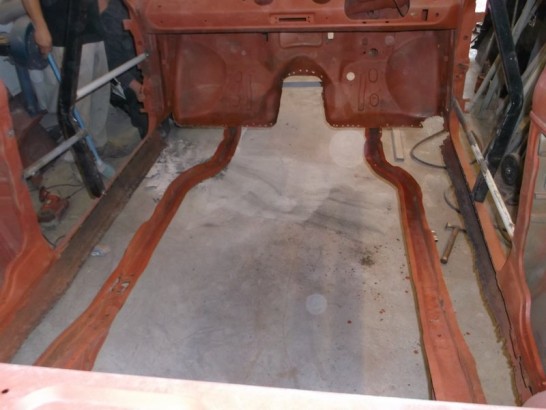

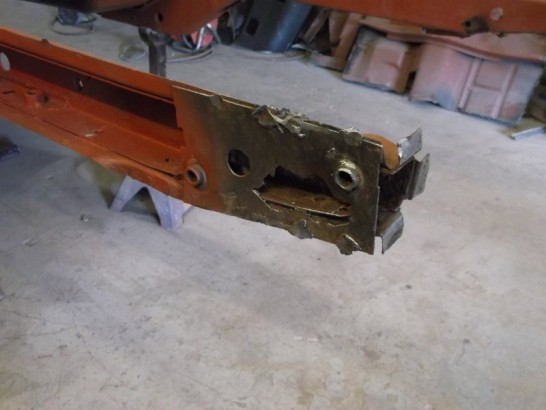

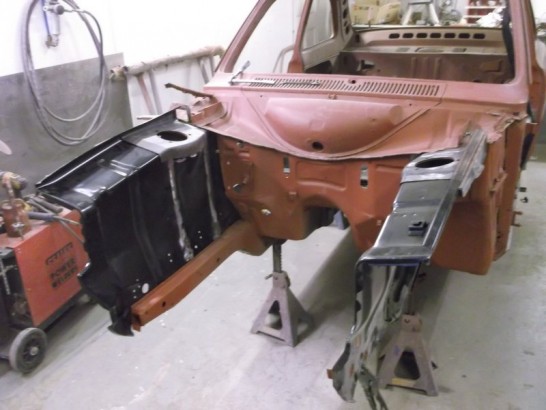

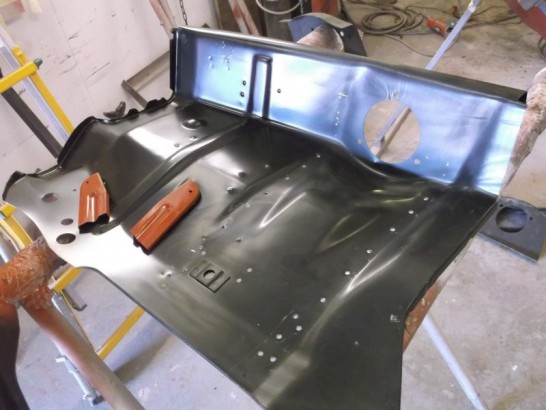

The first task is to remove the rotted floor section and slot in the complete new one.DSCF0957 DSCF0959 DSCF0960 DSCF0964 The chassis legs have been left in place along with some extra bracing until the new floor and outer sills have been welded in to place to help retain the integrity of the shell. DSCF0968With the new floor in place the outer sills will now be grafted on. DSCF0969 A pair of brand new inner wings are among the the selection of new parts sourced for the restoration, the quality of these panels is second to none butt do not come with the suspension towers or extra reinforcing panels, luckily all the parts required are readily available.DSCF0971 All six parts that make up the chassis of the Escort are badly corroded but we could only secure two new centre sections and a pair of the good second hand rear sections so the front two will require some new sections fabricated .DSCF0972 DSCF0973 DSCF0975 DSCF0976 With the end of the chassis sections replaced with some new steel the inner wings can now be fitted.DSCF0977 DSCF0980 DSCF0983

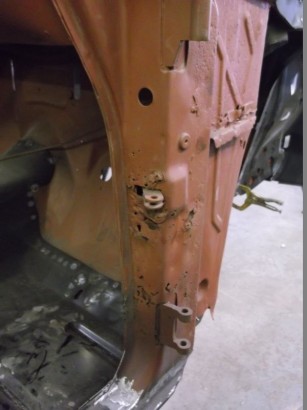

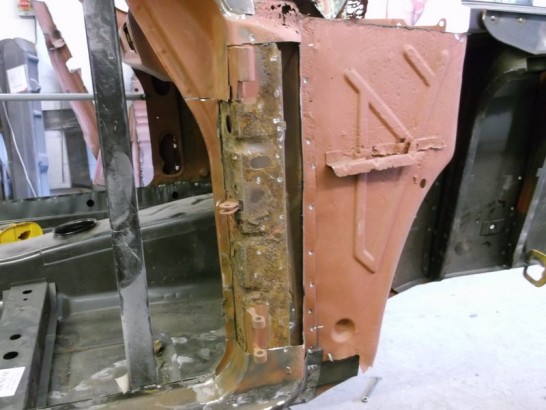

Both the A posts and bulkhead sides will be replaced with new panels along with a section of the upper bulkhead which will have to be hand fabricated .

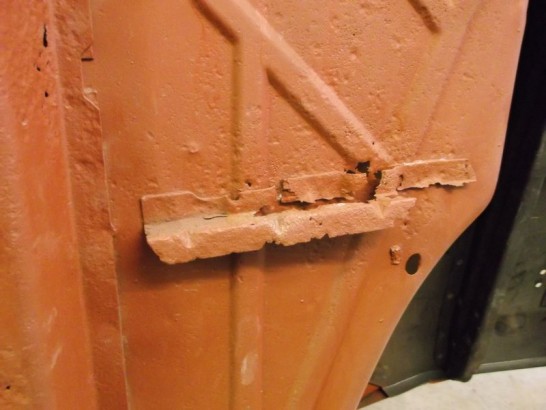

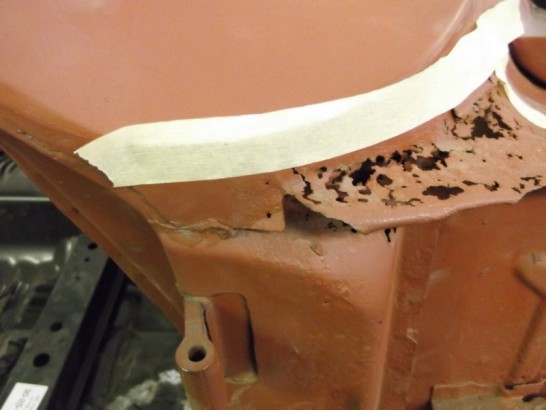

DSCF0985 DSCF0986 DSCF0987 DSCF0989

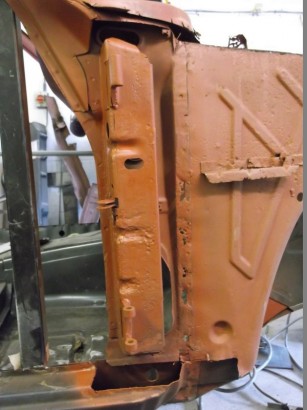

Fortunately the inner reinforcing panel is in tact and wont need replacing or repairing.

DSCF0990 DSCF0991

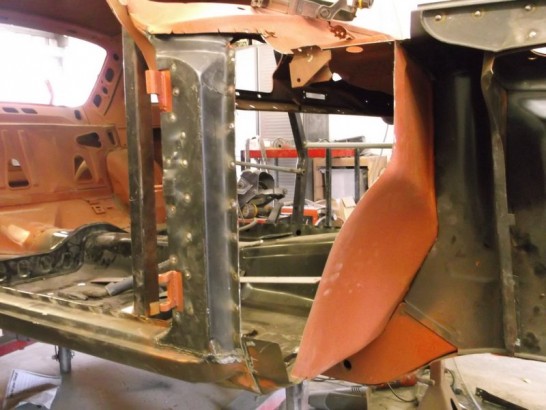

With the new A post in place the bulkhead side can be removed .



DSCF0992 DSCF0993

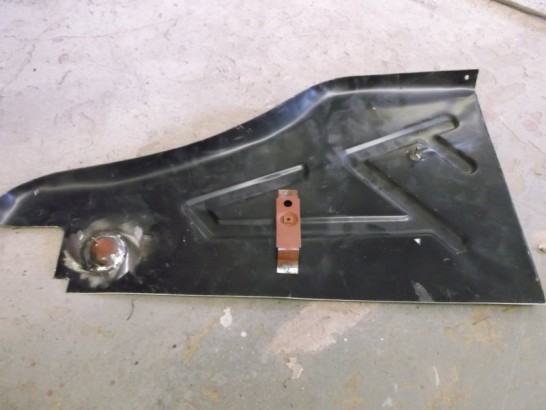

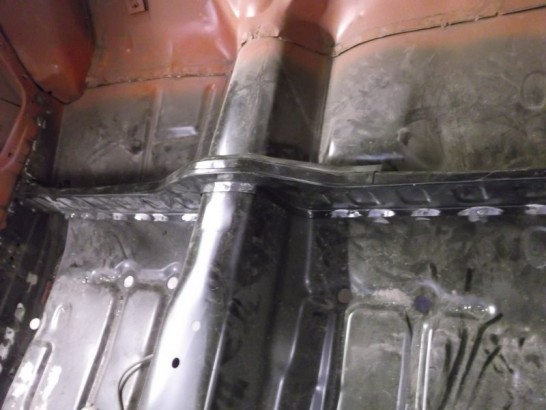

The new reproduction panels are quite basic and don’t come with any of the tags and brackets  for the kick panels or the parcel shelf so the old ones from the original panels have been grafted into the new panels.

DSCF0997 DSCF0998

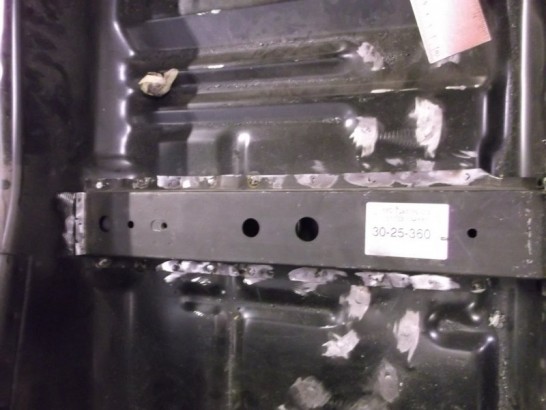

New seat mount crossmembers had to be fitted along with the new floor .

DSCF1005

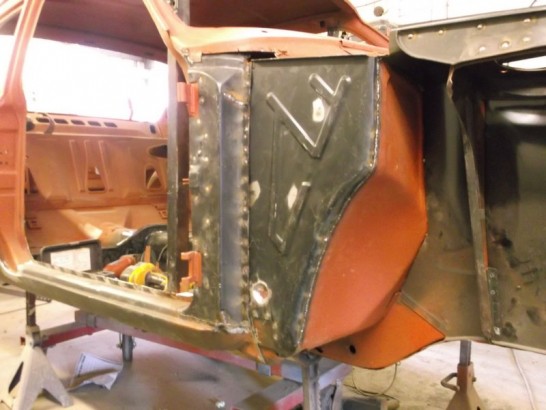

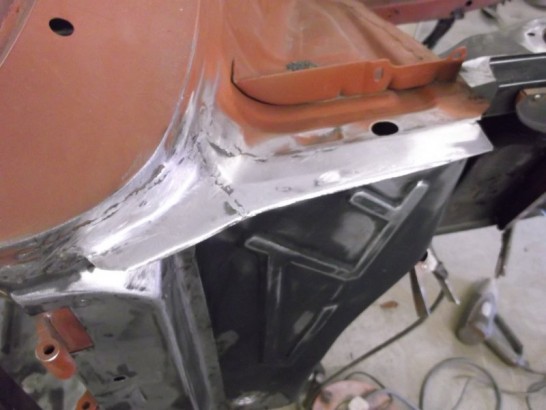

With the A post and bulkhead repaired the upper portion of the bulkhead had to be hand fabricated as replacement panels are not readily available,a new section of the wing rail has been  sourced and will be fitted once the inner wings have been aligned and welded into place.

DSCF1007

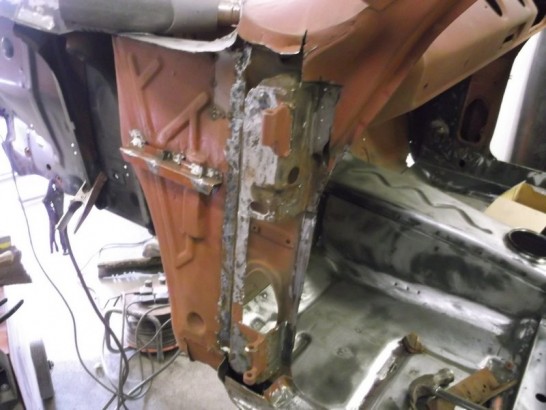

With the Drivers side A post completed we can turn our attention to the passenger side which has’nt faired as well as the other, a large section of the inner and outer post has completely corroded away including the door check strap.

DSCF1008

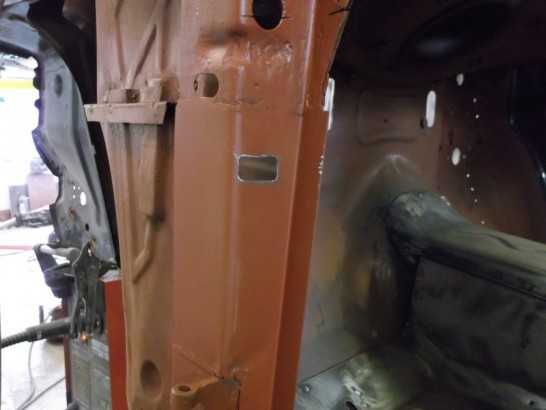

A section of the inner A post was replaced with the appropriate grade steel and grafted into  place.

DSCF1009

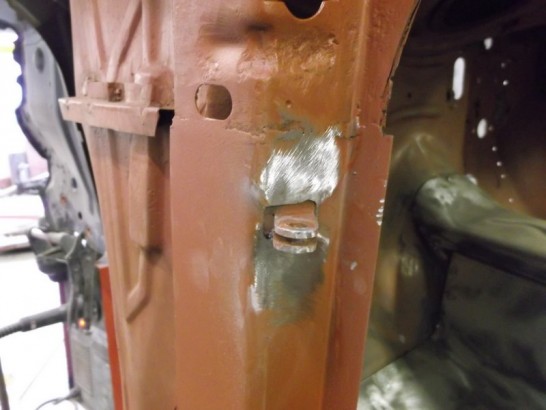

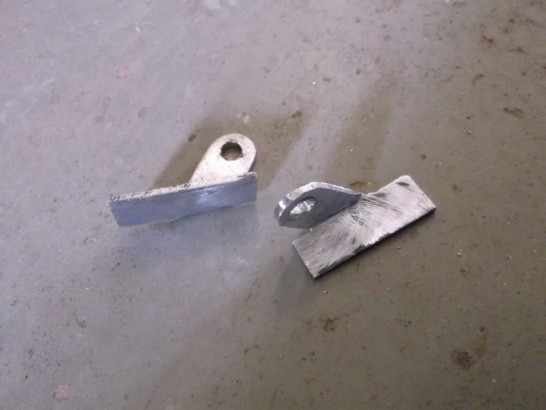

Some new check strap brackets had to be fabricated from scratch using the drivers side ones as a template as the old ones have been lost.DSCF1010 DSCF1012

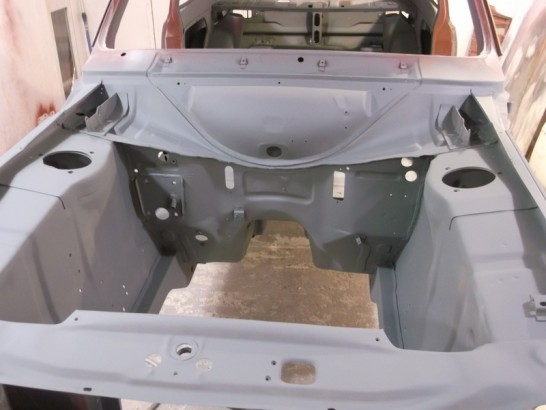

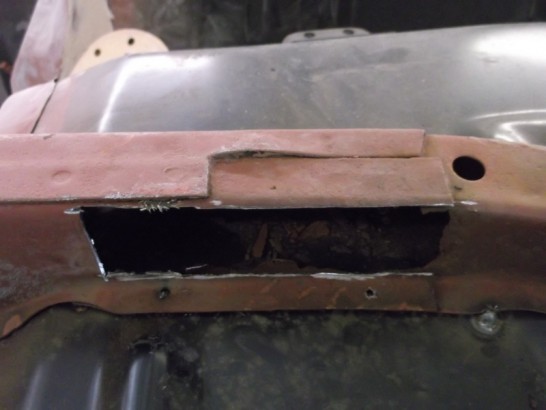

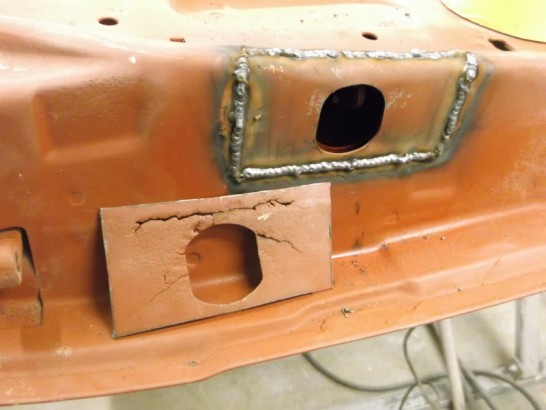

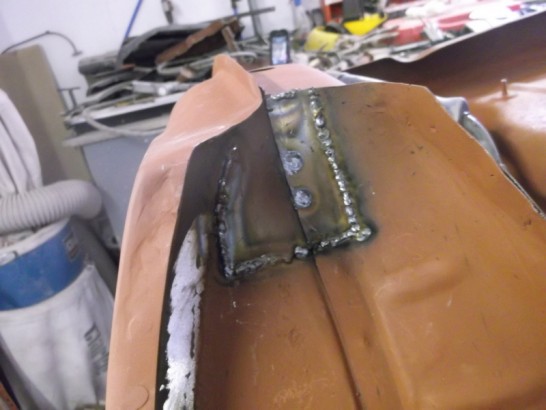

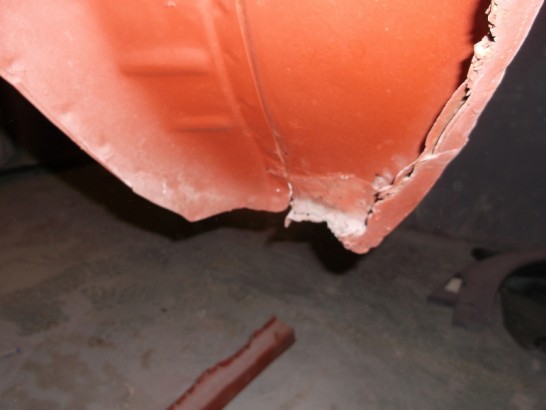

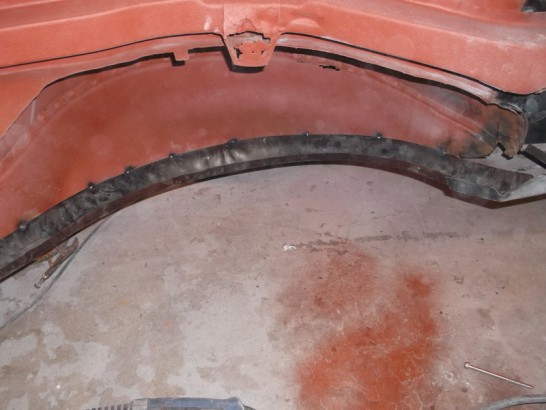

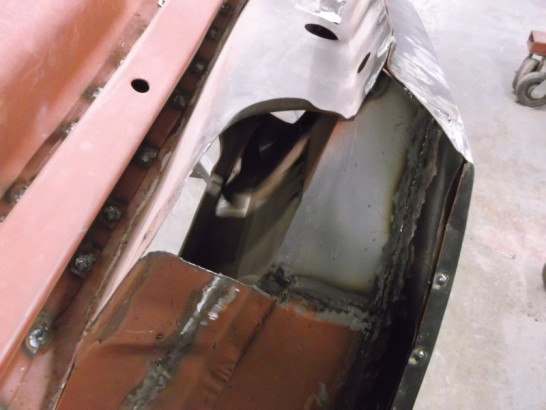

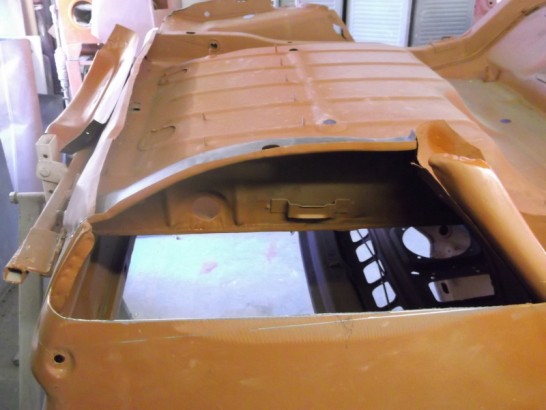

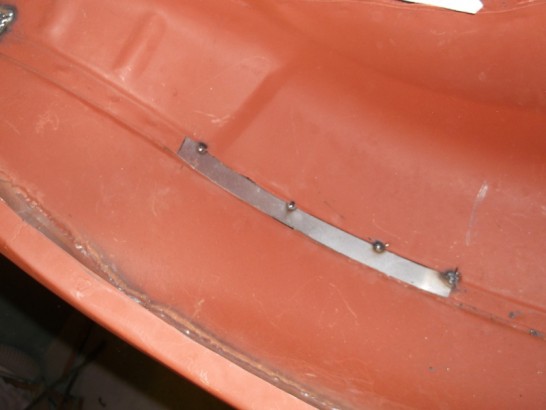

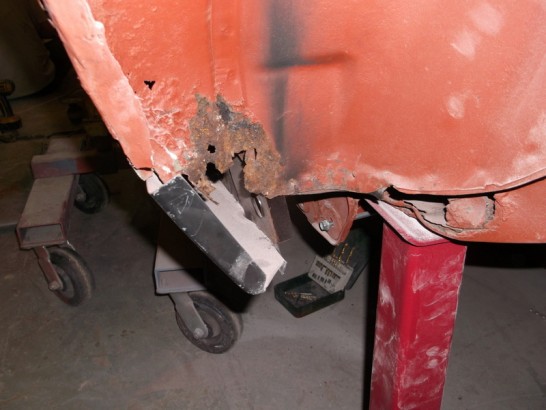

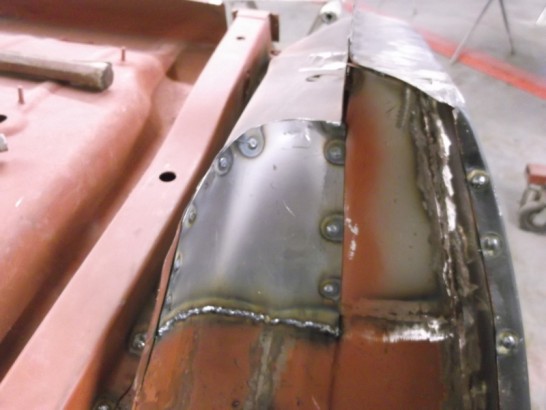

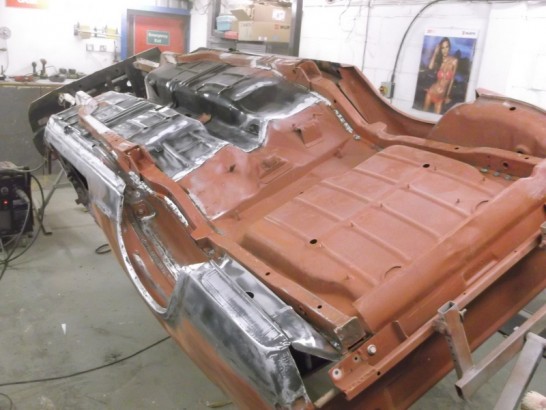

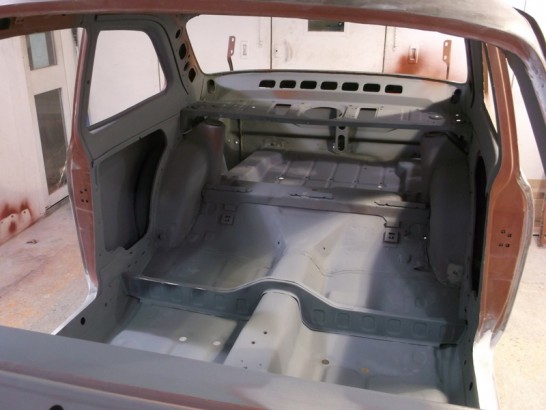

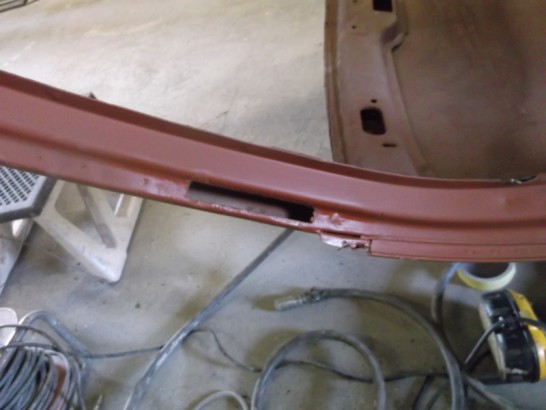

DSCF1093 DSCF1098 DSCF1099 DSCF1100 DSCF1102 DSCF1103 DSCF1107 DSCF1108 DSCF1109 DSCF1115 DSCF1118 DSCF1119 DSCF1121 DSCF1122 DSCF1510 DSCF1511 DSCF1513 DSCF1514 DSCF1515 DSCF1516 DSCF1517 DSCF1528 DSCF1621 DSCF1622 DSCF1678 DSCF1679 DSCF1680 DSCF1681

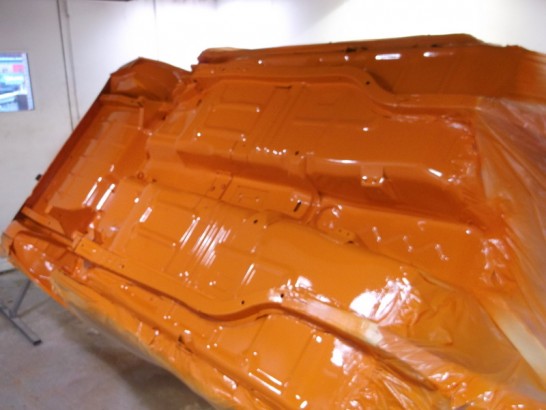

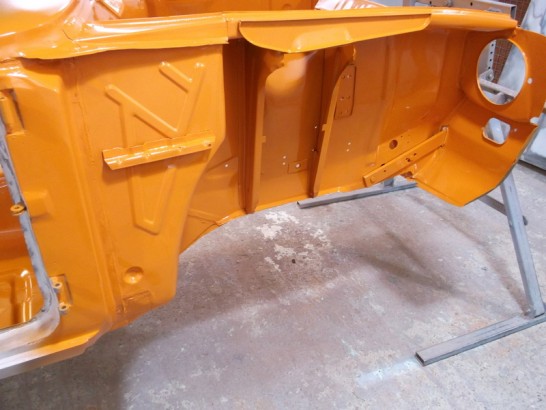

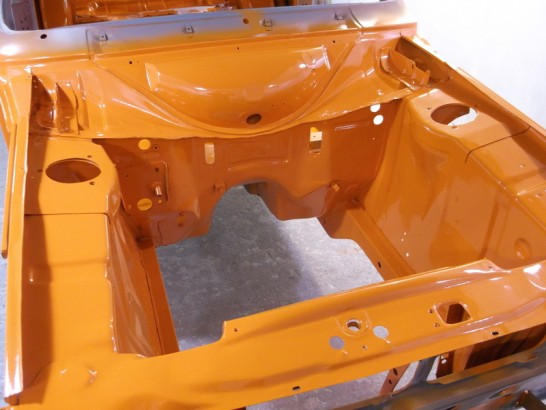

DSCF1703 DSCF1704 DSCF1705 DSCF1706 DSCF1707 DSCF1708 DSCF1711 DSCF1712

Watch this space for regular updates.
