Mk 2 RS 2000 Restoration

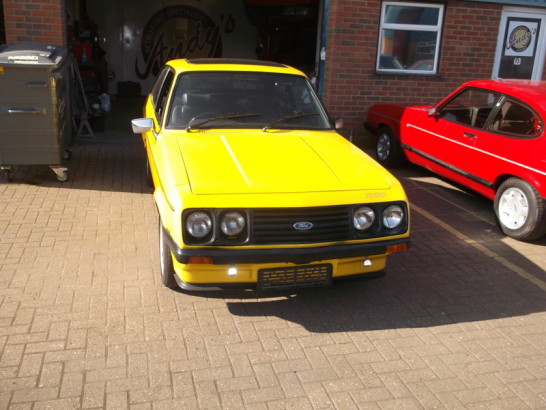

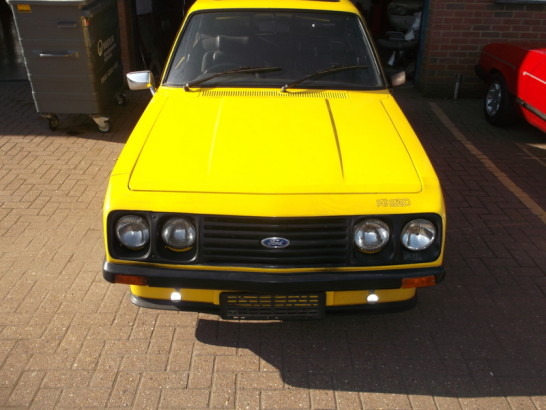

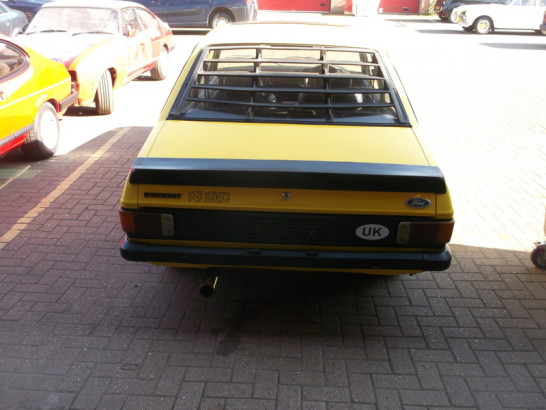

This Mk2 RS200 has been bought to us to give it a full ground up rebuild, sporting various mods the RS will be returned to standard and refinished in Diamond white .

DSCF2402 DSCF2408 DSCF2413 DSCF2412

The plan is to strip the RS down to a bare shell and send for blasting, replace all the incorrect parts, and refreshwith as many original Ford items as possible.



DSCF2409 DSCF2404

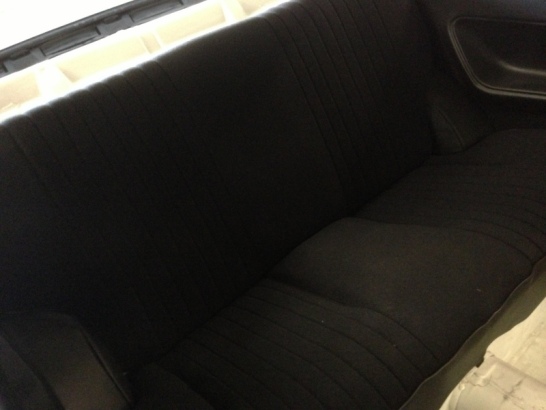

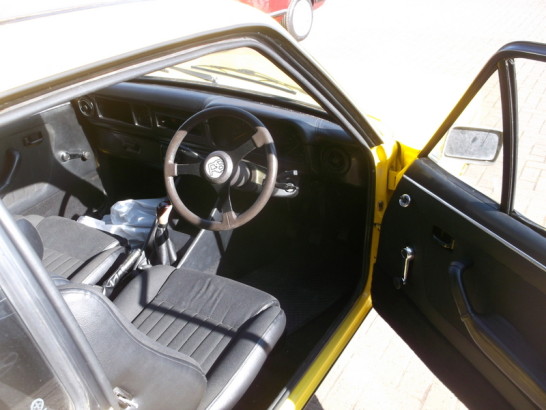

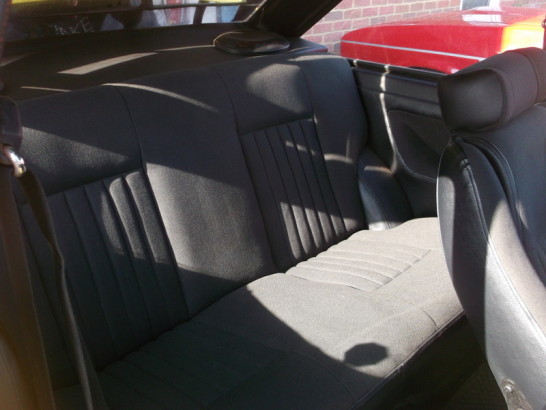

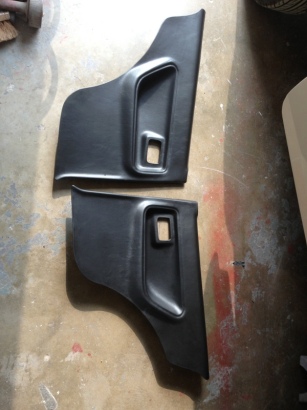

The interior though in good condition has all been retrimmed in aftermarket materials so will be retrimmed in the correct Beta cloth along with new door cards etc from Aldridge trimming.

DSCF2406 IMG_1638

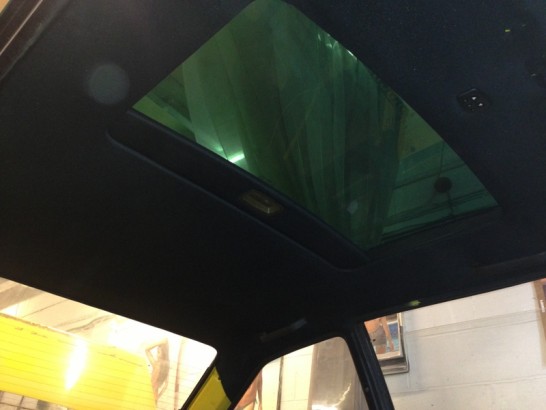

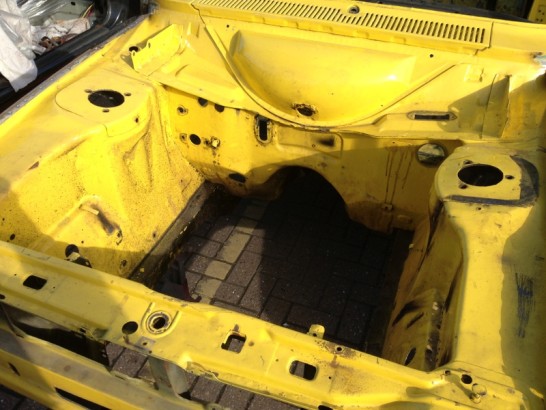

The aftermarket electric tilt and slide sunroof will also be removed and the roof skin replaced .

IMG_1670 DSCF2478

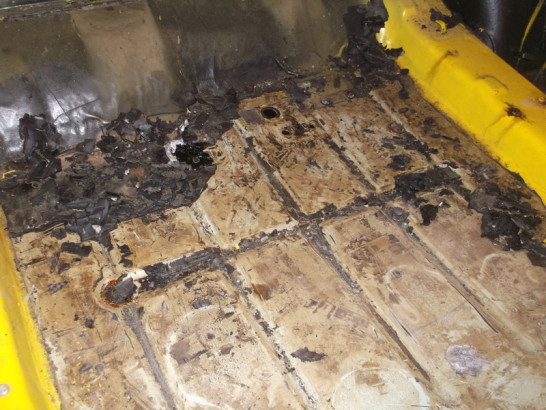

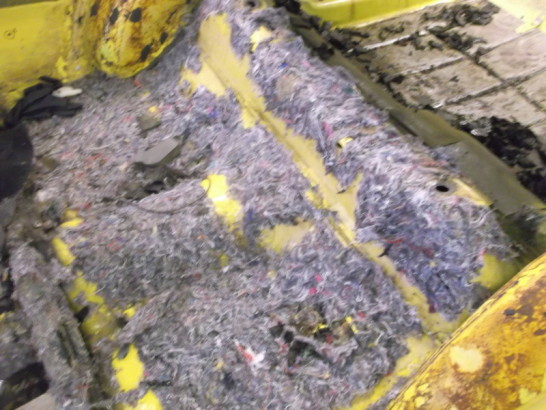

In an attempt to reduce the cabin noise vast ammounts of sound proofing and sound deadening pads have been glued into the interior.

DSCF2479

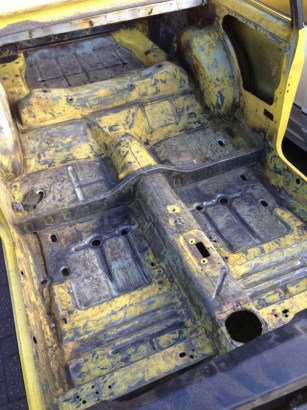

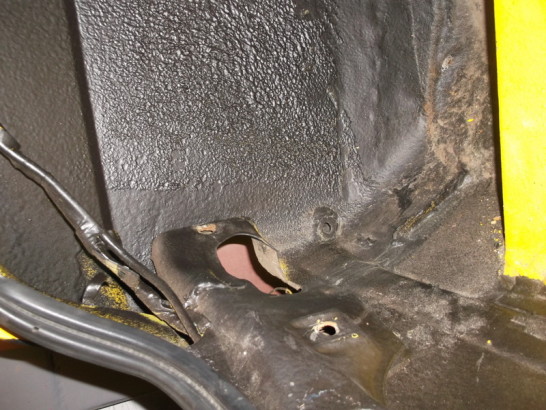

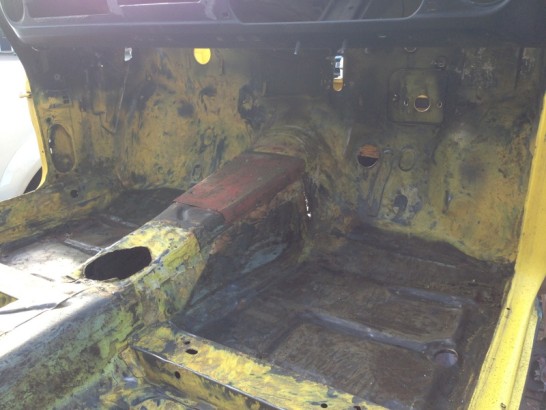

Many hours later with a hot air gun, blow torch and zip wheel the inside of the cabin is ready for media blasting.

DSCF2455

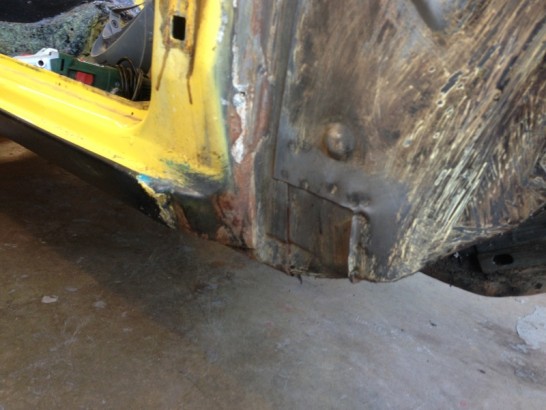

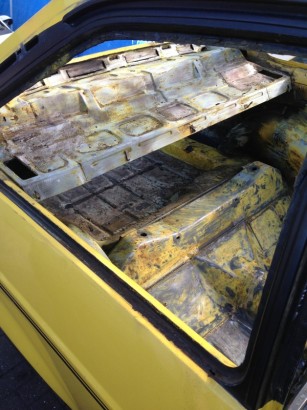

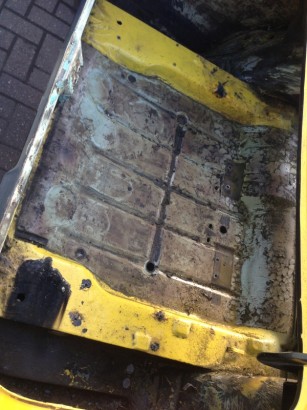

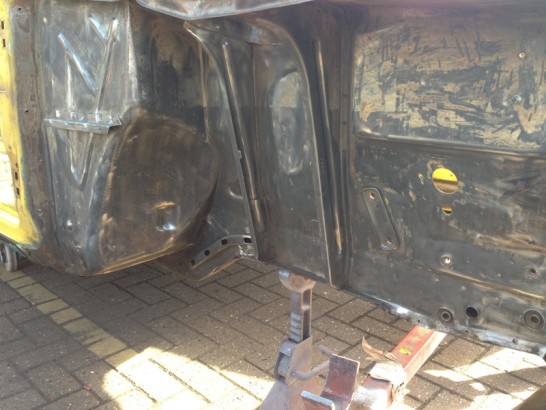

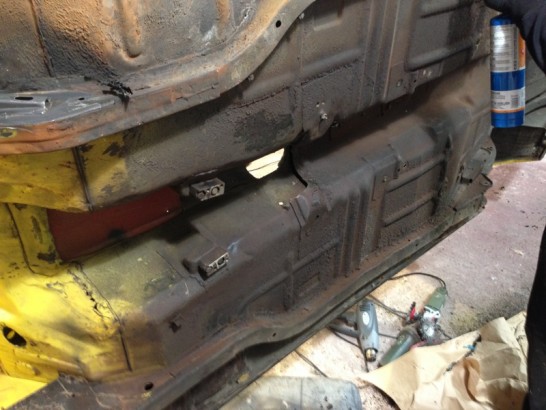

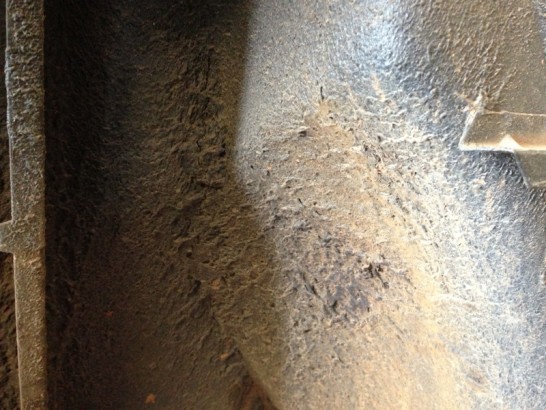

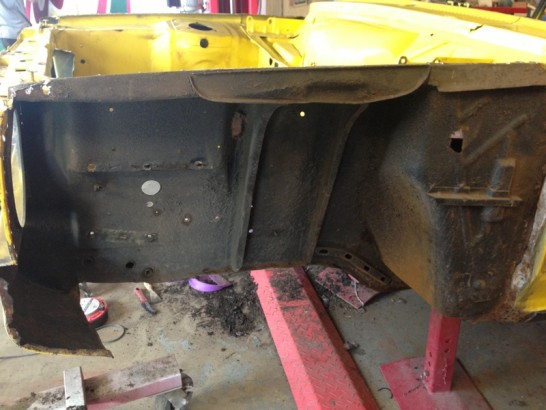

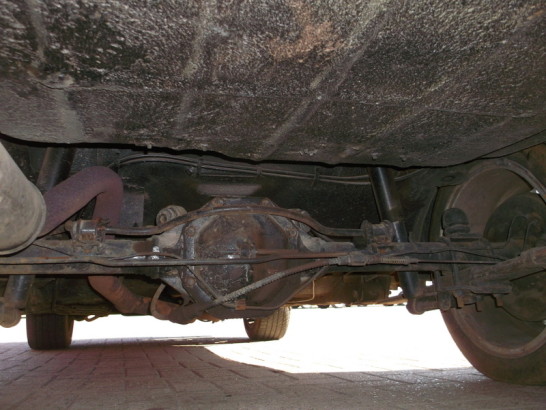

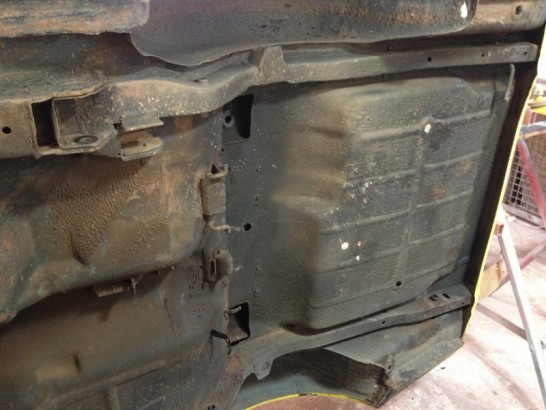

The underside of the Escort and boot area have also been heavily coated in sealer and underseal which is going to need to be removed before it can go to blasting.

DSCF2418 IMG_1654 IMG_1656 IMG_1653 IMG_1663 IMG_1664 IMG_1669 IMG_1668 IMG_1667 IMG_1666 IMG_1665

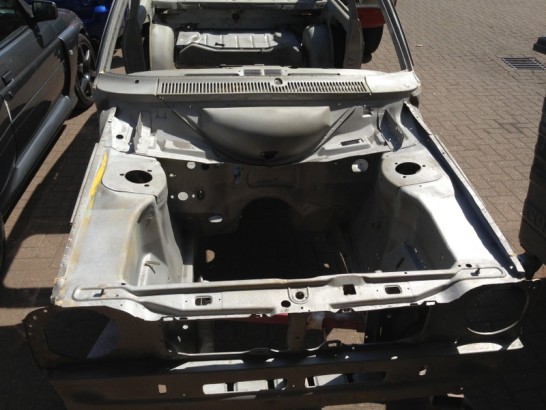

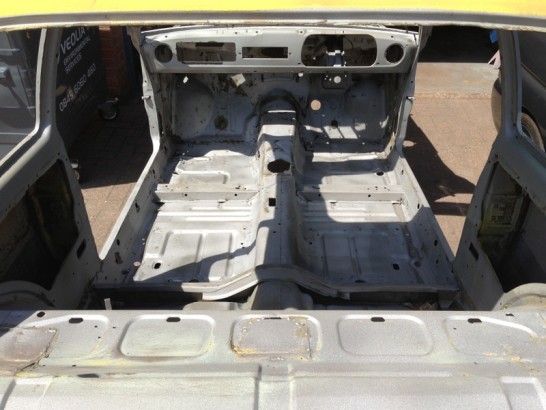

With the inside and the underside stripped and the wings carefully removed the Rs2000 will be shipped to the media blasters.

IMG_1750 IMG_1748 IMG_1747 IMG_1746

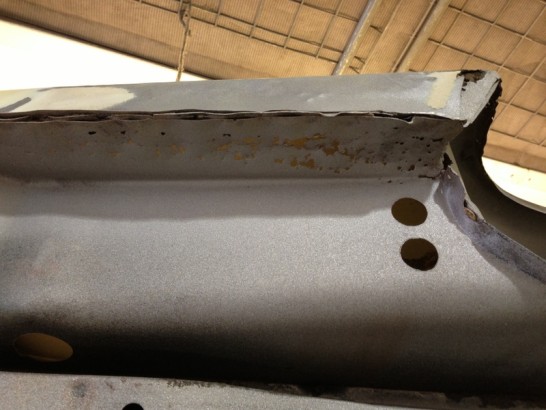

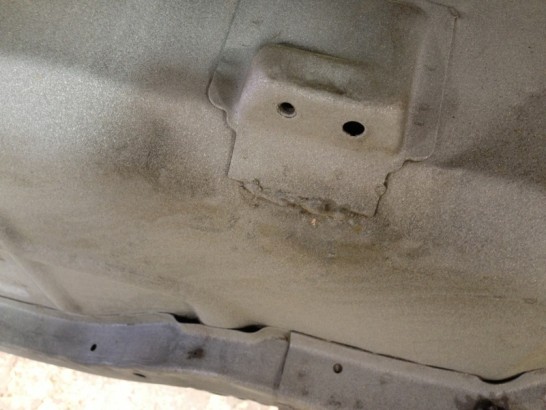

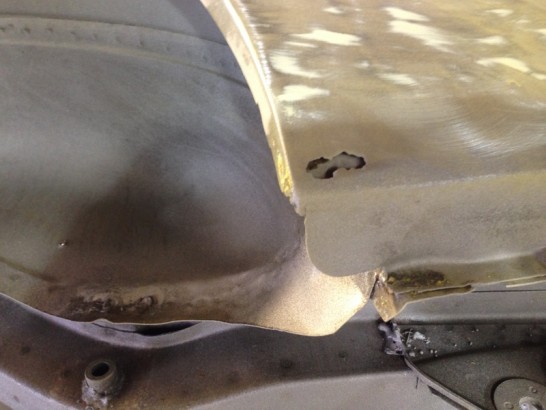

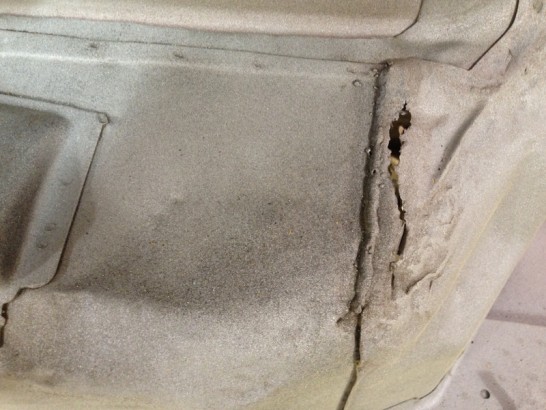

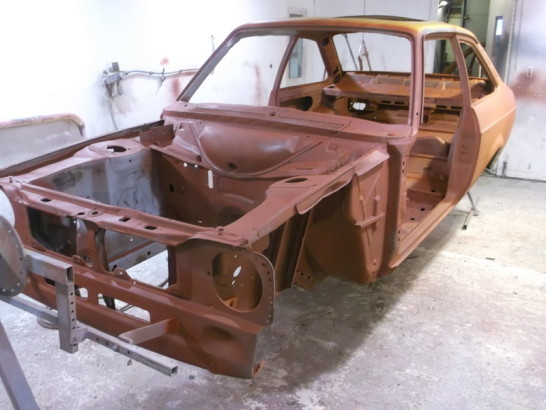

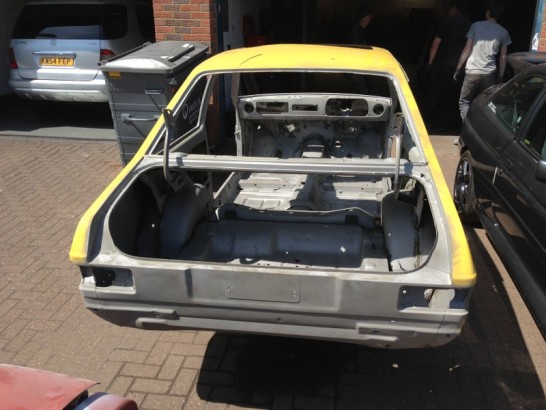

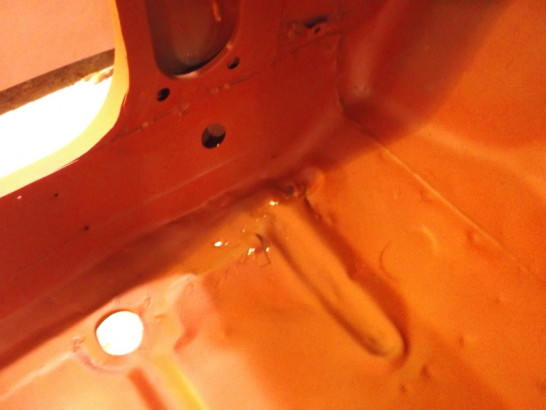

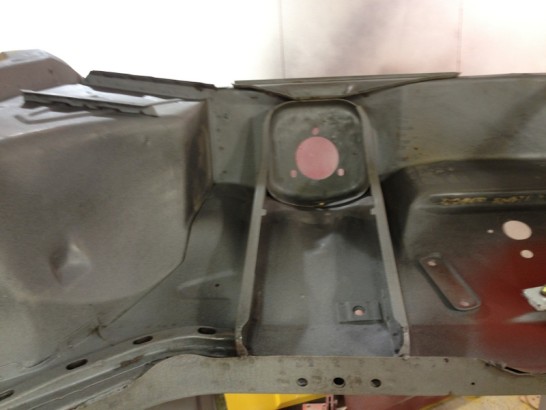

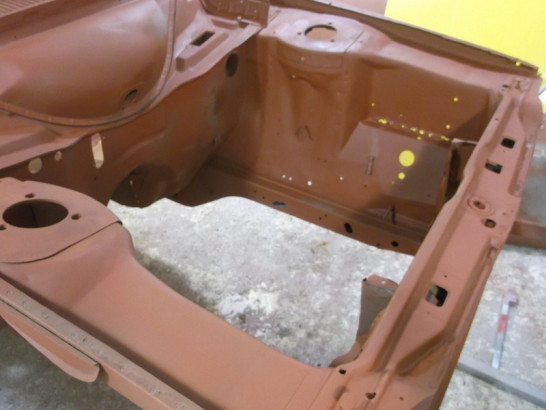

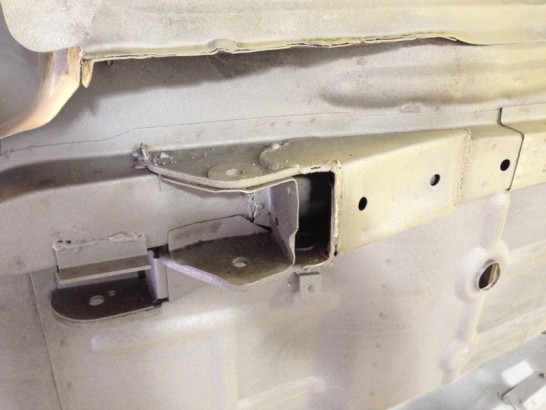

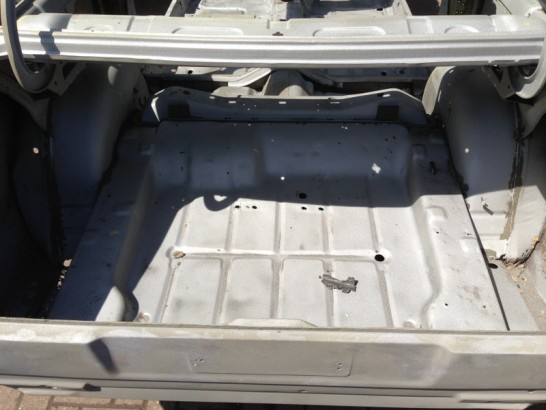

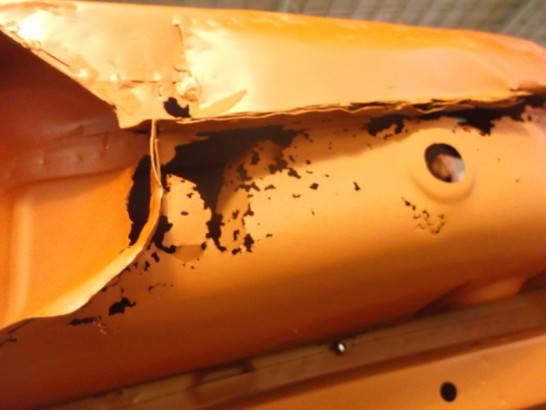

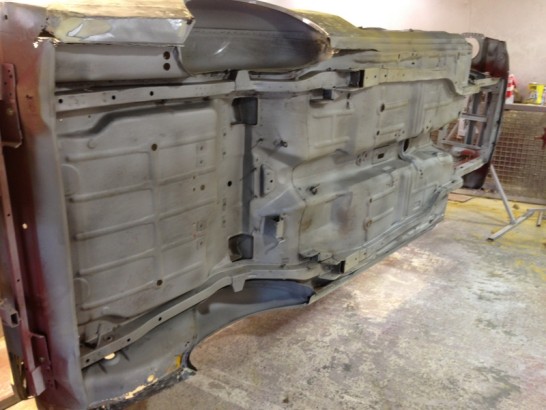

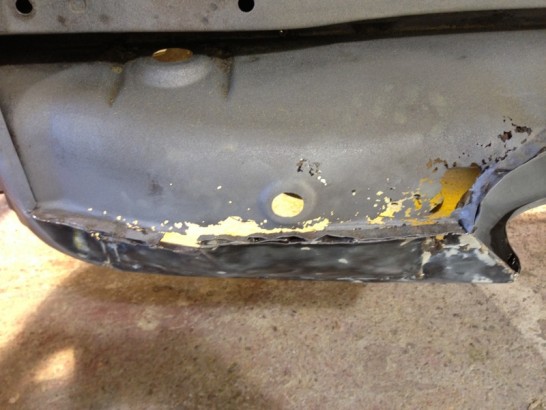

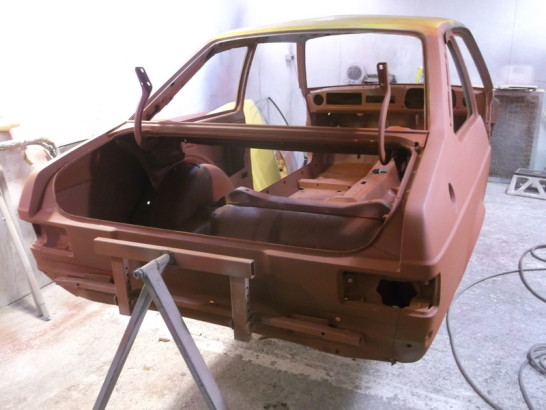

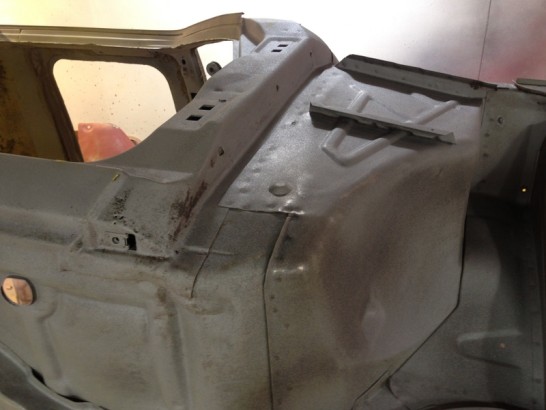

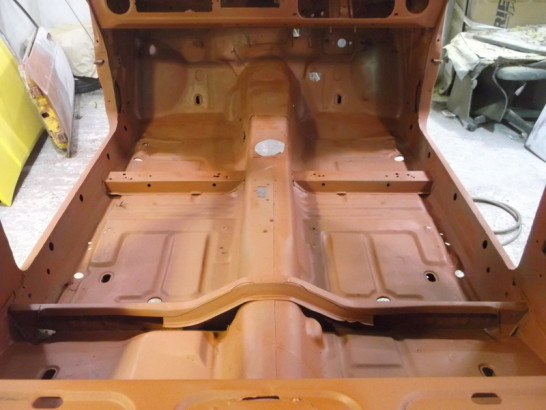

Back from blasting and no real surprises,the shell has some corrosion of the rear lower quarters and the odd few holes but very solid.

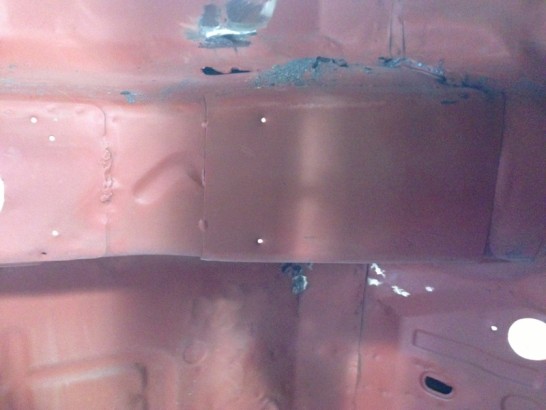

IMG_1745 IMG_1765 IMG_1773 IMG_1772 IMG_1771 IMG_1770 IMG_1769 IMG_1768 IMG_1767 IMG_1766 IMG_1825

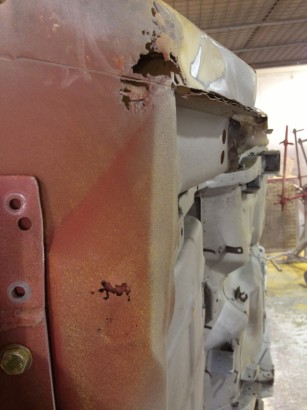

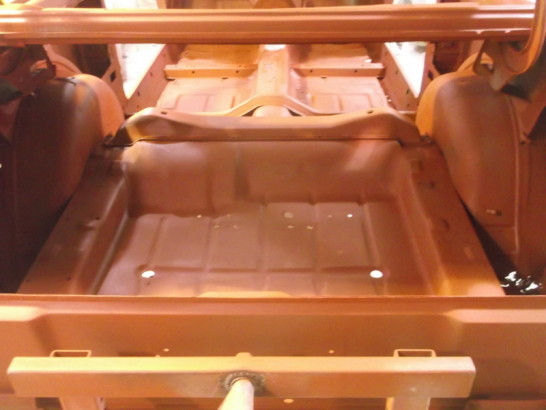

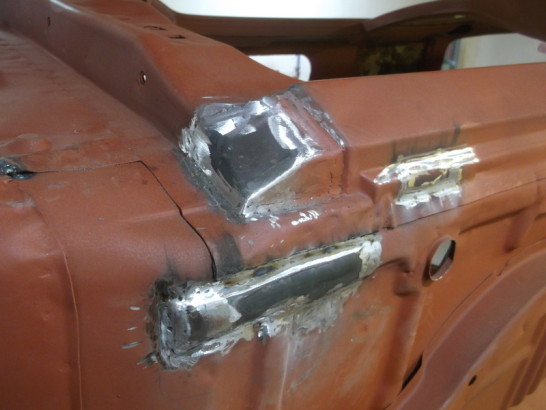

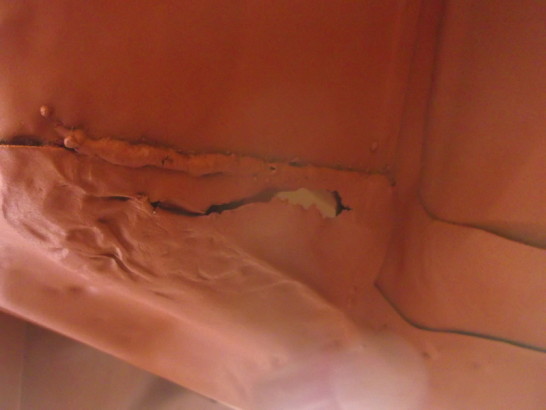

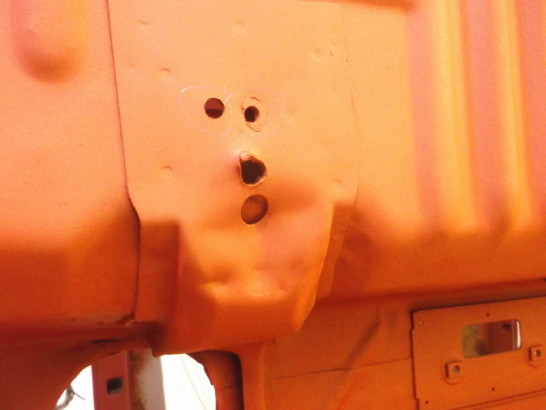

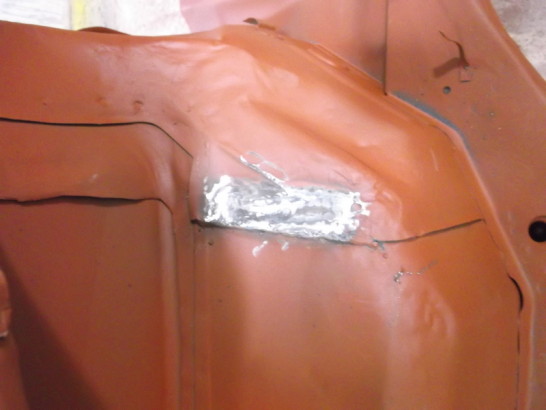

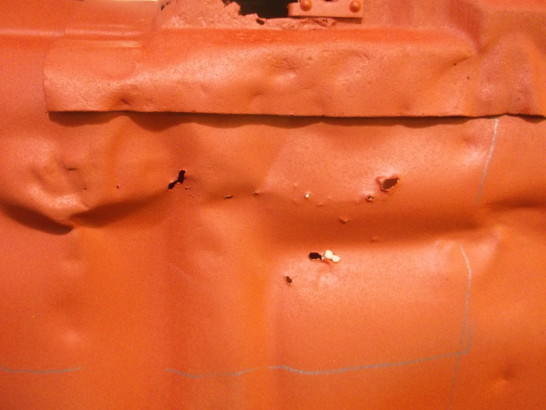

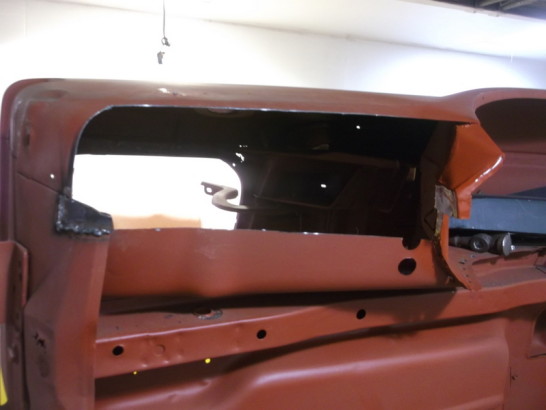

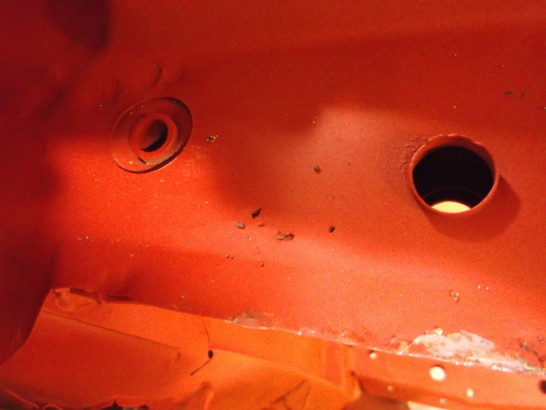

Some odd repairs to the transmission tunnel will need to returned to normal.

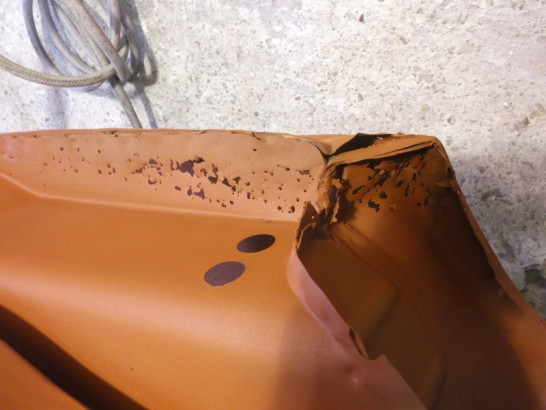

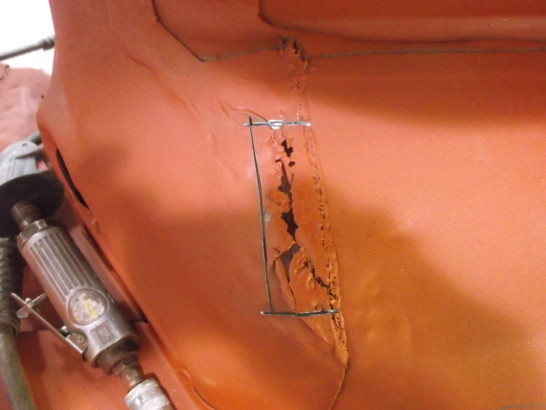

IMG_1775 DSCF2529 DSCF2532 DSCF2531 DSCF2534 DSCF2530 DSCF2535 DSCF2539 DSCF2538 DSCF2537 DSCF2536 DSCF2541 DSCF2542 DSCF2543 DSCF2546 DSCF2547 DSCF2549

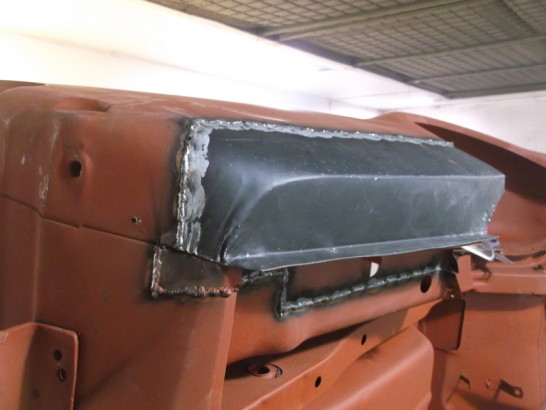

DSCF2551 DSCF2553 DSCF2557 DSCF2561

DSCF2569

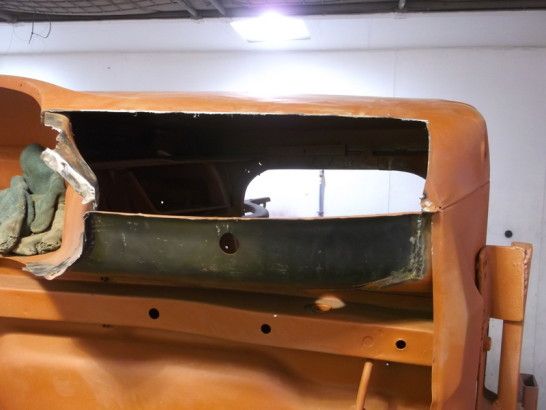

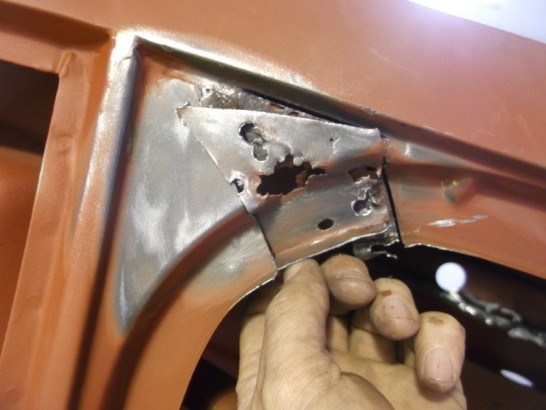

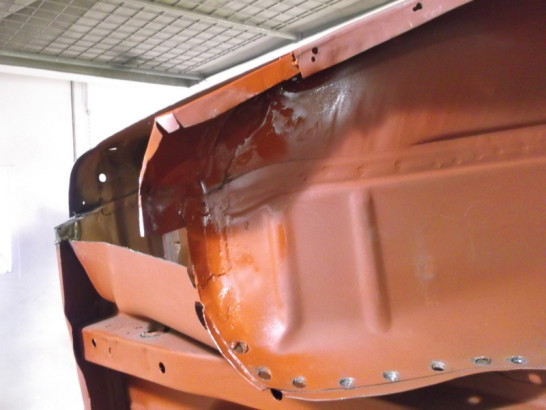

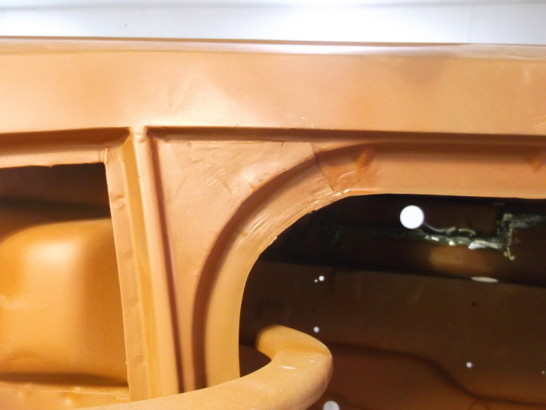

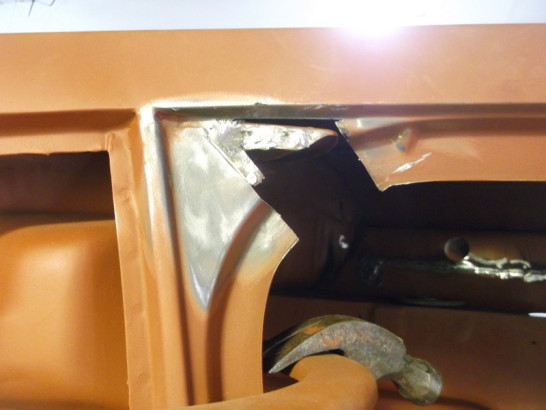

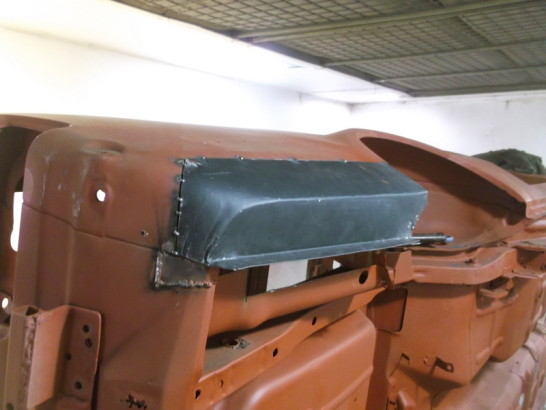

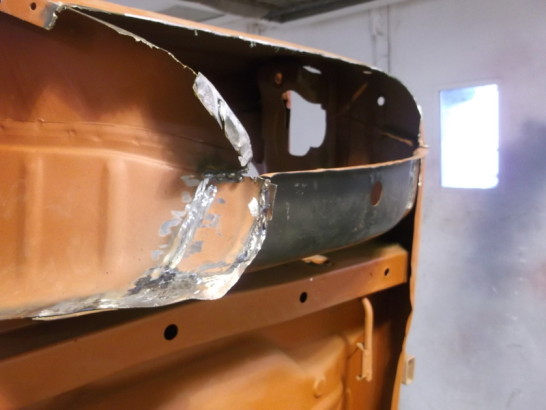

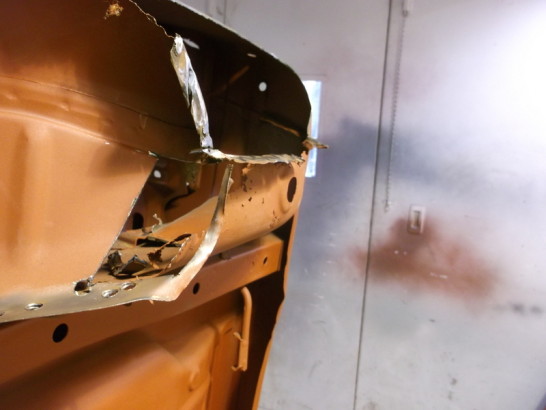

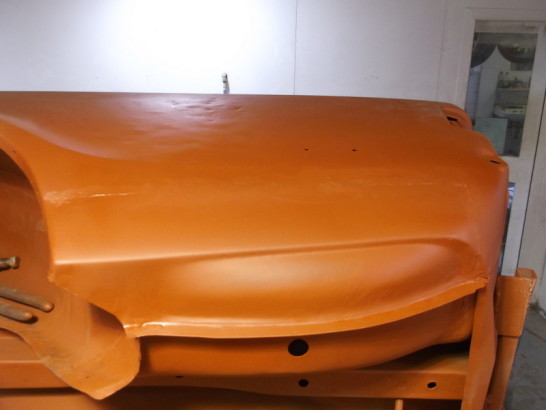

Two new inner and outer sections of the rear quarters are grafted into place.

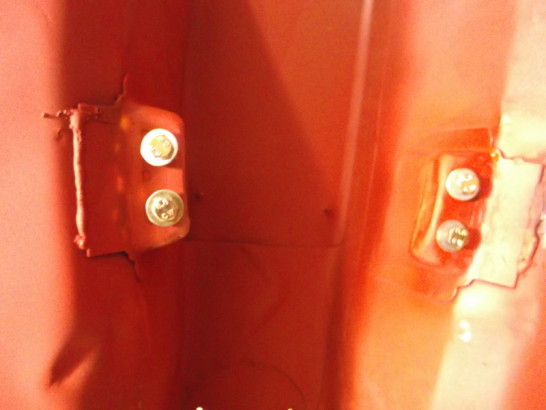

DSCF2564 DSCF2566 DSCF2570 DSCF2574 DSCF2576 DSCF2578 DSCF2579 DSCF2584 DSCF2548

Some new captive nuts needed to be fitted into the gearbox mounting points.

DSCF2588 DSCF2587

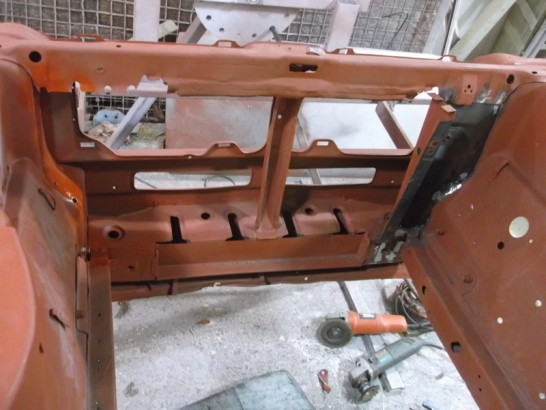

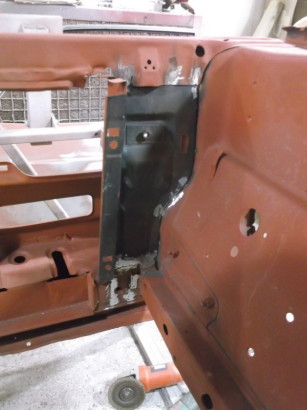

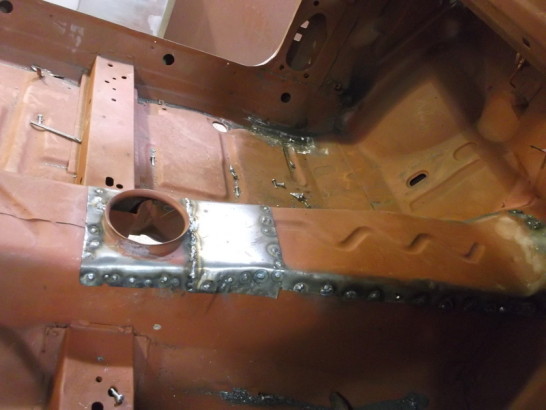

Both the radiator towers need to be replaced with some new standard items.

DSCF2590

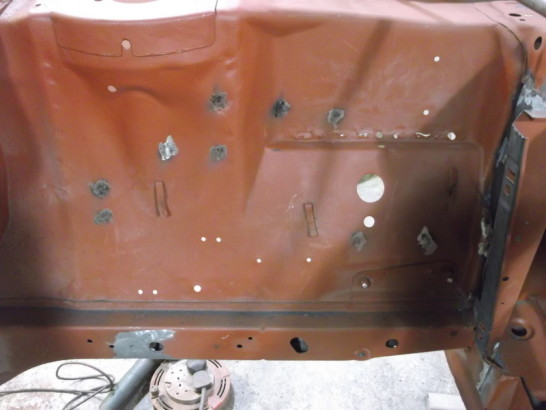

The tunnel has been returned to standard using salvaged parts from another Escort.

DSCF2591

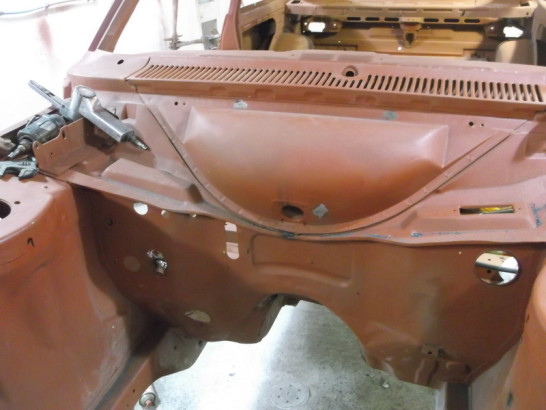

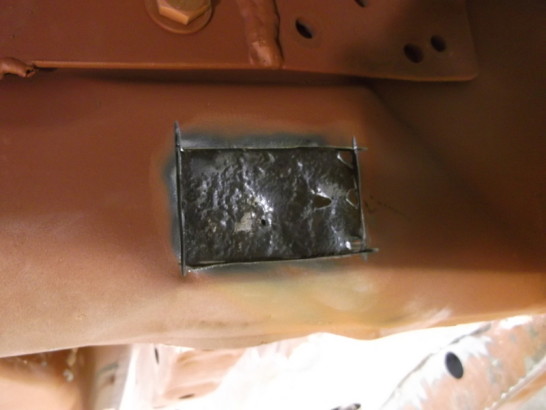

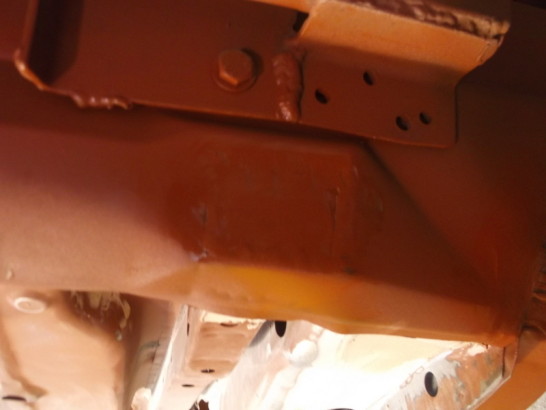

All the additional holes that have been added over the years are removed.

DSCF2592 DSCF2596 DSCF2598

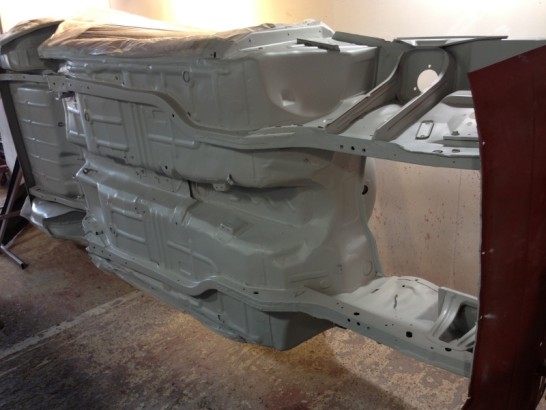

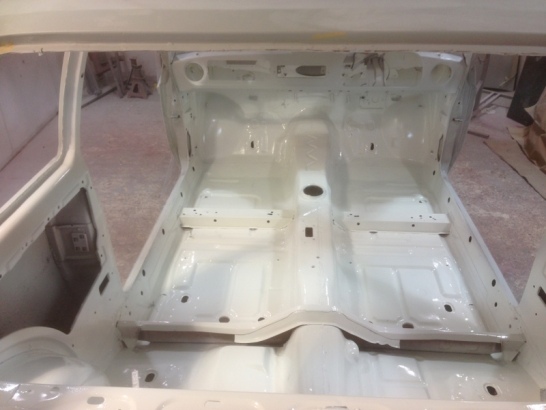

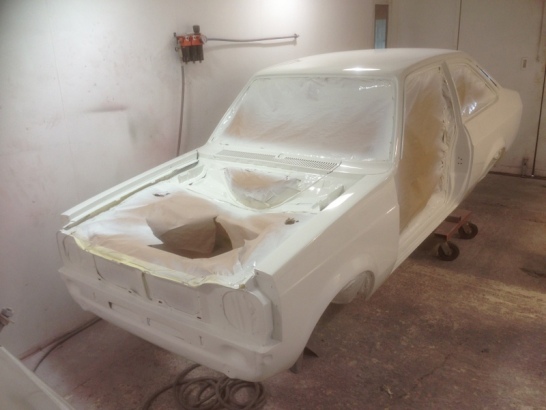

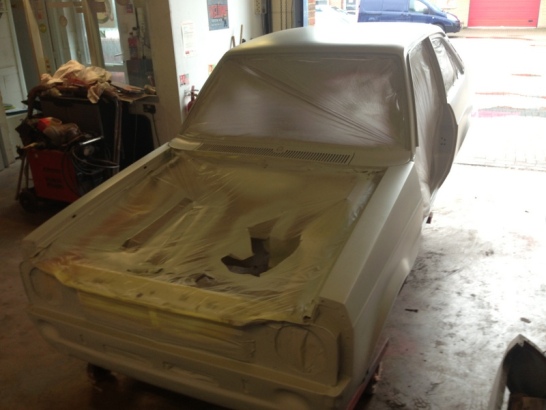

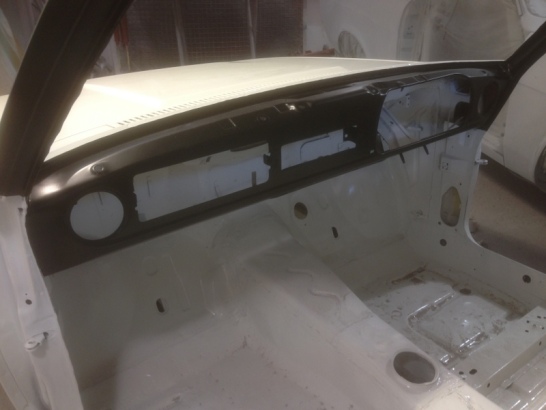

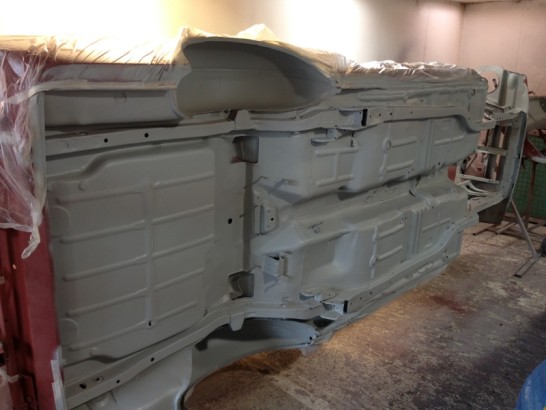

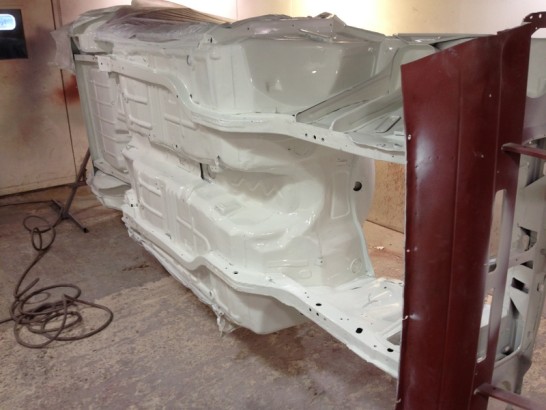

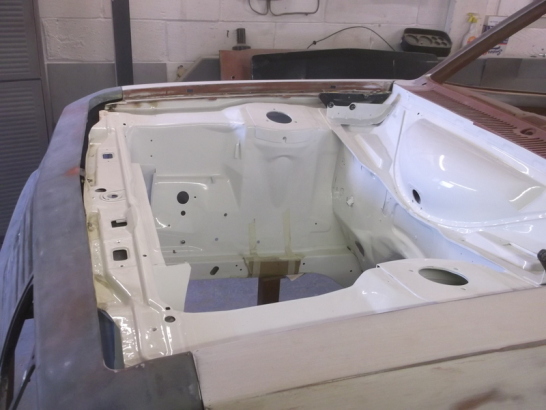

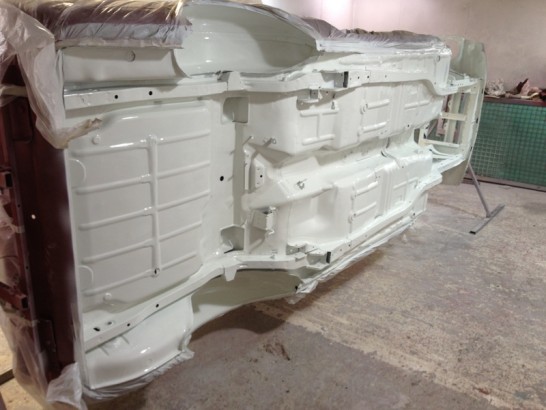

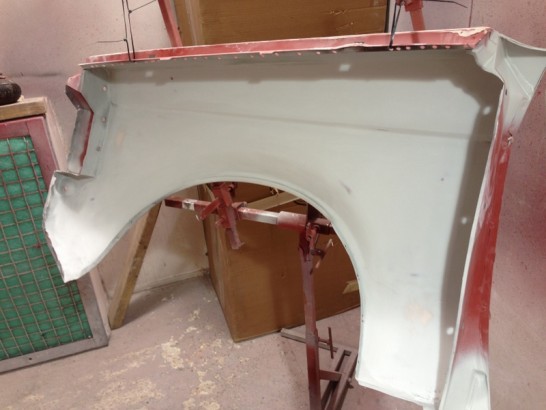

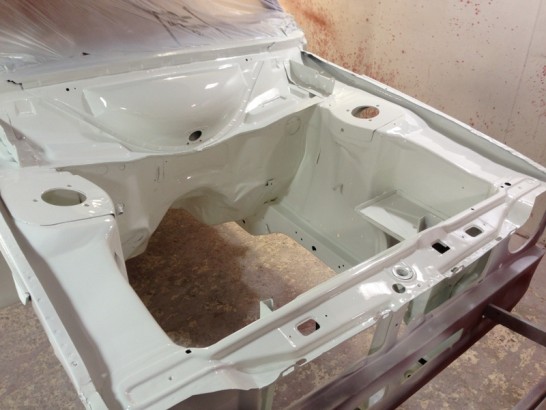

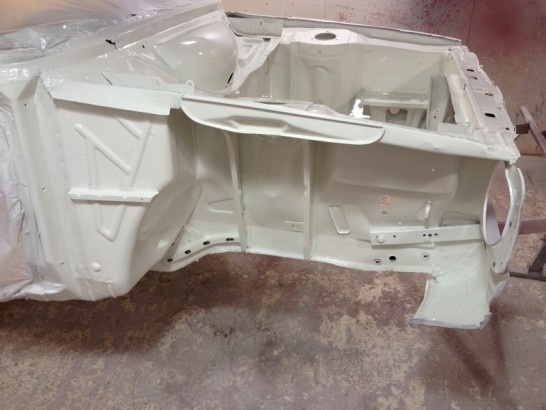

With the underside repairs complete a light coat of stonechip the floorpan and engine bay is ready for a coat of Diamond white.

IMG_1954 IMG_1956 IMG_1990 IMG_1989 IMG_1988 IMG_1987 IMG_1985 IMG_1975

DSCF2617

DSCF2623 DSCF2624 DSCF2625 DSCF2626 DSCF2627 DSCF2628 DSCF2630 DSCF2632 DSCF2634 DSCF2638 DSCF2684 DSCF2688 DSCF2689 DSCF2690 DSCF2702 DSCF2703 DSCF2755 DSCF2756 DSCF2758 DSCF2761 DSCF2763 DSCF2766 DSCF2768

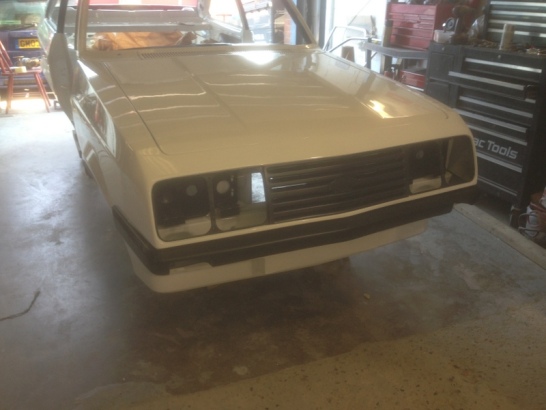

IMG_2135 IMG_2136 IMG_2137 IMG_2138 IMG_2152 IMG_2169 IMG_2170 IMG_2349 IMG_2350 IMG_2352 IMG_2353 IMG_2496 IMG_2497 IMG_2503 IMG_2504 IMG_2508 IMG_2513 IMG_2514 IMG_2515 IMG_2516 IMG_2517 IMG_2518 IMG_2521 IMG_2526 IMG_2531 IMG_2532 IMG_2533 IMG_2547 IMG_2549 IMG_2555 IMG_2572 IMG_2576 IMG_2579 IMG_2580 IMG_2631
