Mk 1 Escort YB Cosworth turbo

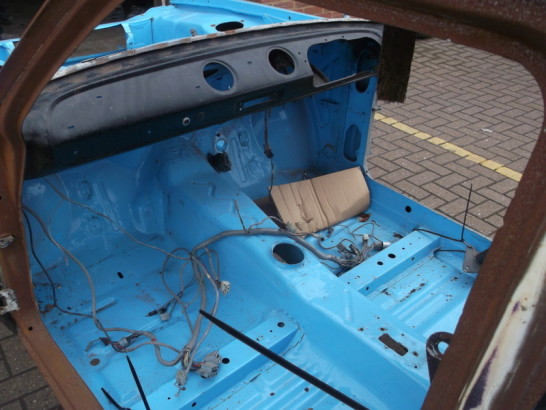

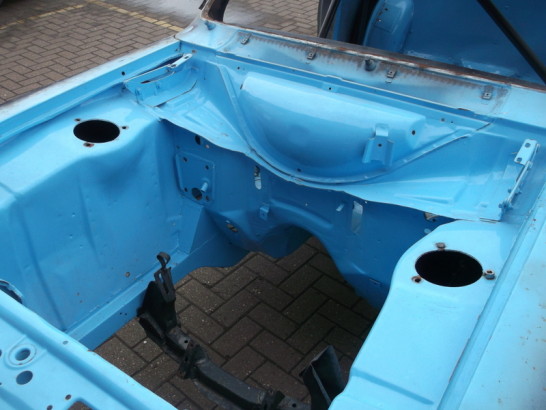

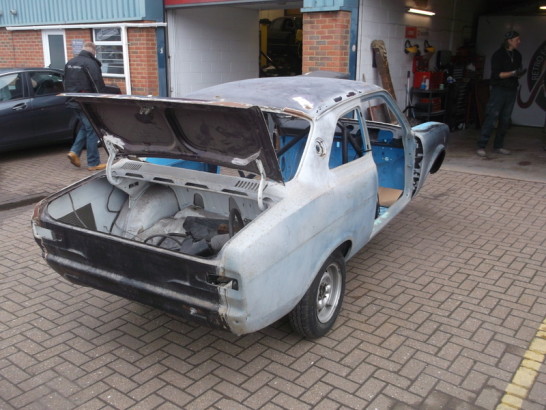

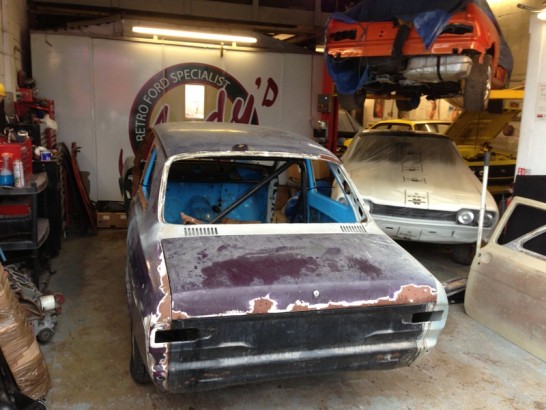

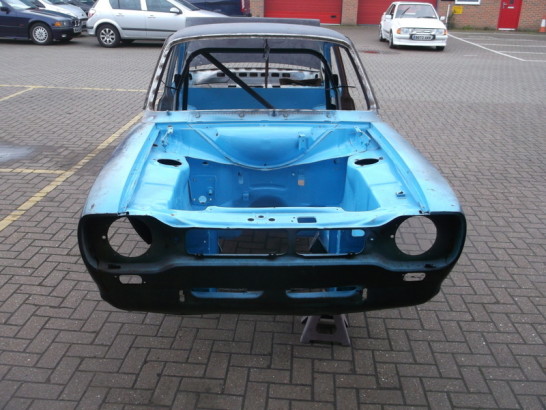

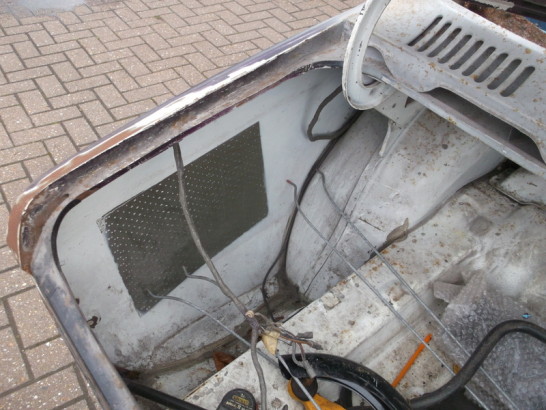

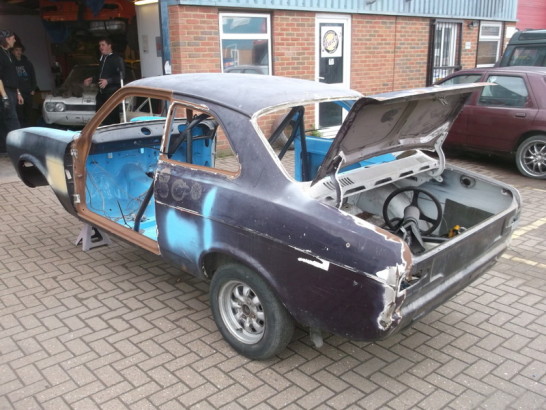

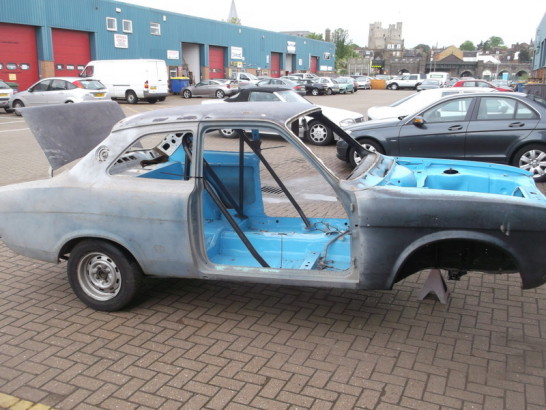

Bought as just a bare shell with an axle and front crossmember this mk1 has been dry stored for the last 30 years. In excellent condition it will under go a total rebuild sporting candy red paintwork, Rs2000 decals, a Cosworth YB turbo engine, brake and suspension upgrades and stripped out interior.

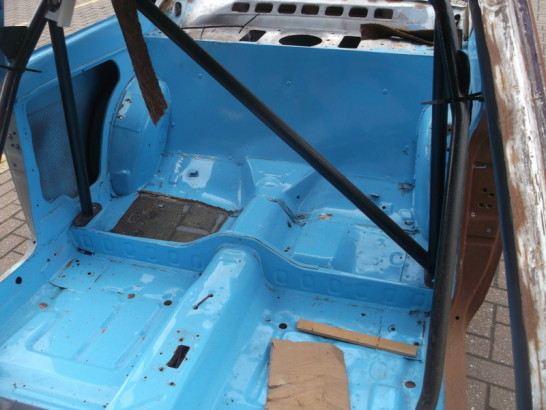

DSCF2442 DSCF2443 DSCF2444 DSCF2445 DSCF2447 DSCF2448 DSCF2449 DSCF2451 IMG_1628

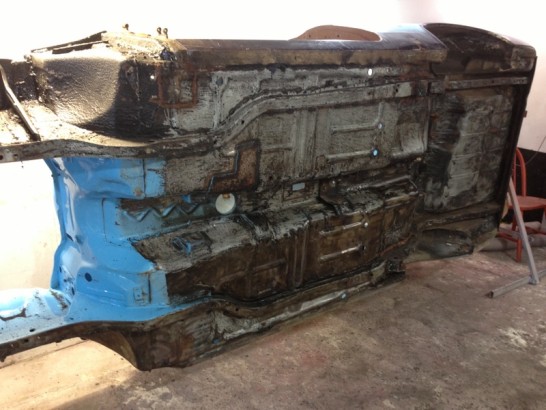

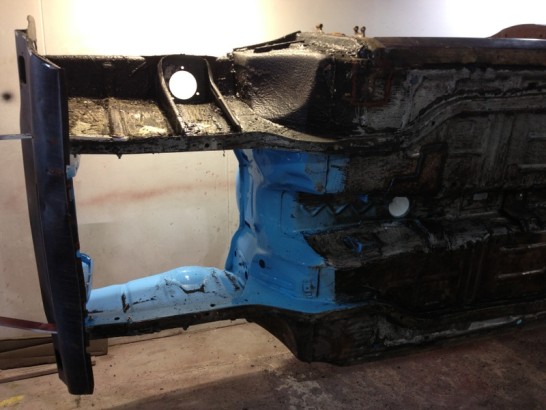

The underside has been coated in some type of bitumen which has to be removed before the shell can go to blasting.

IMG_1677 IMG_1676

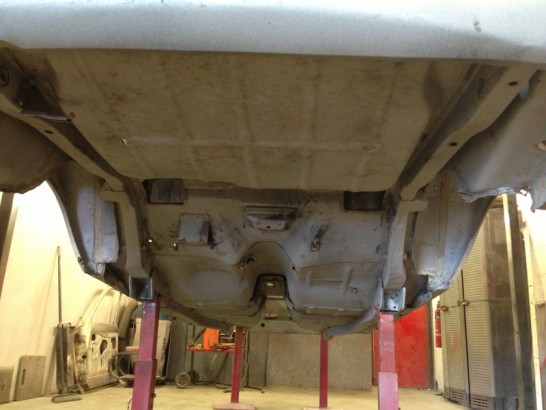

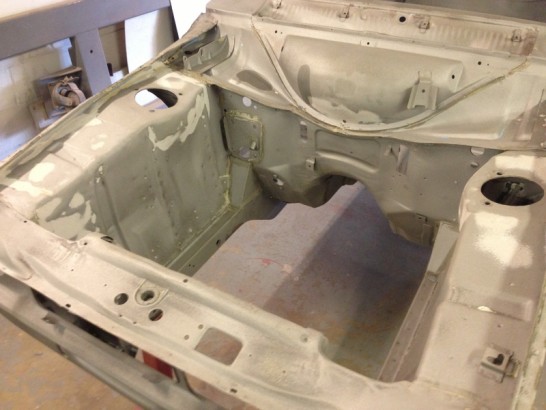

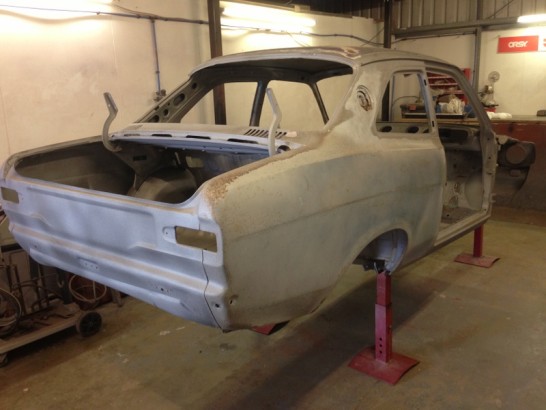

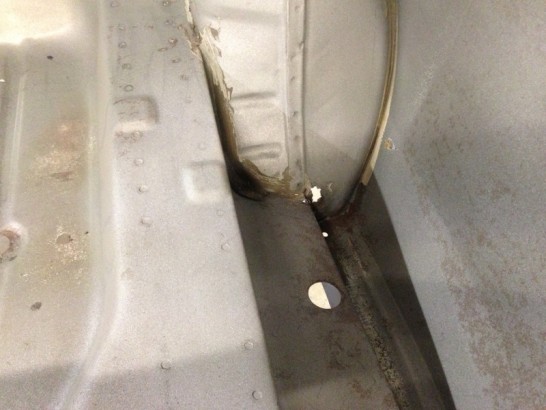

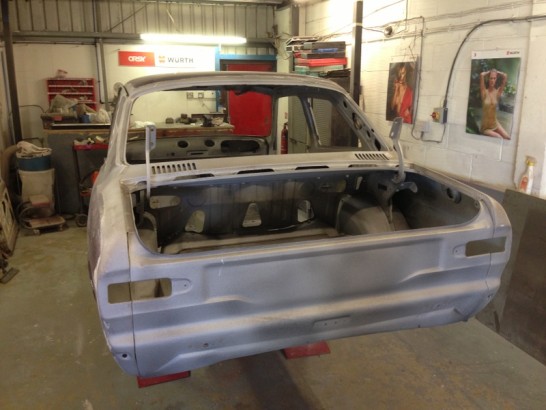

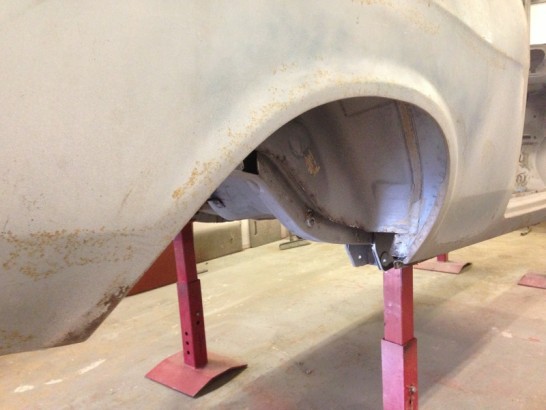

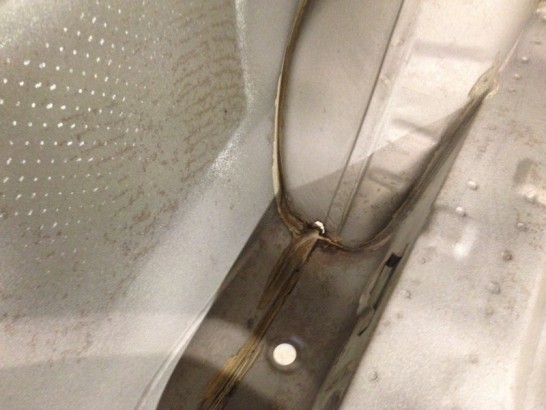

With the bitumen removed and the flat panels hand stripped to bare metal the shell is shipped of for media blasting.

IMG_1827 IMG_1831 IMG_1832 IMG_1833 IMG_1834 IMG_1835 IMG_1836 IMG_1837 IMG_1838 IMG_1839

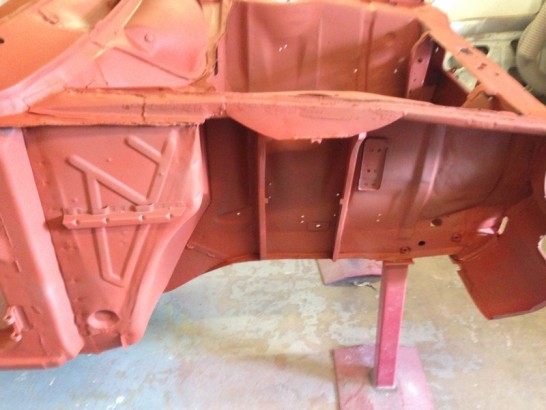

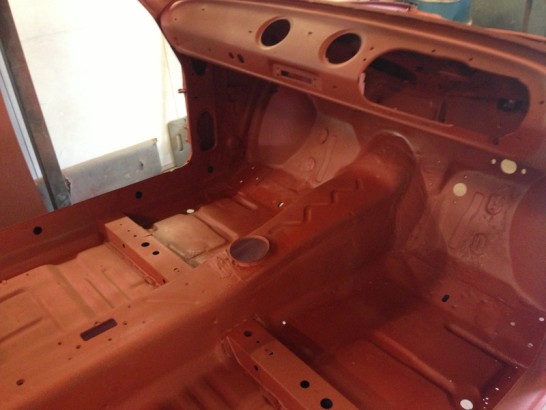

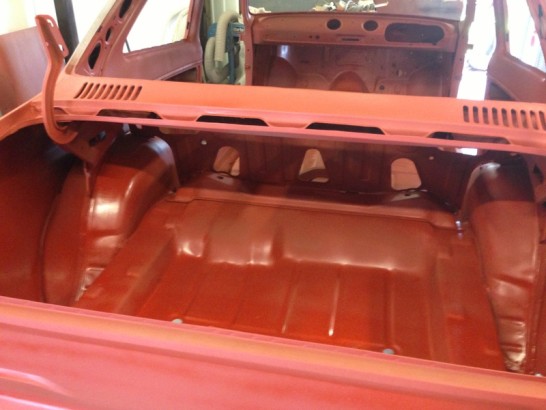

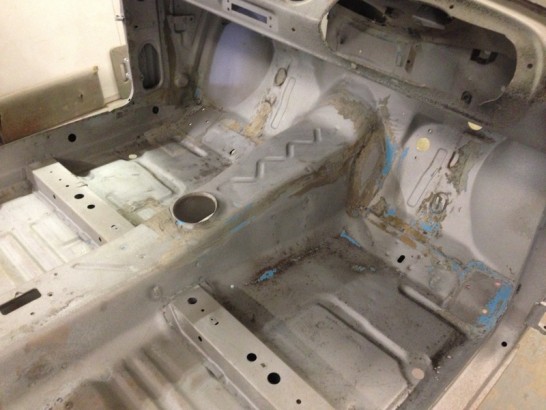

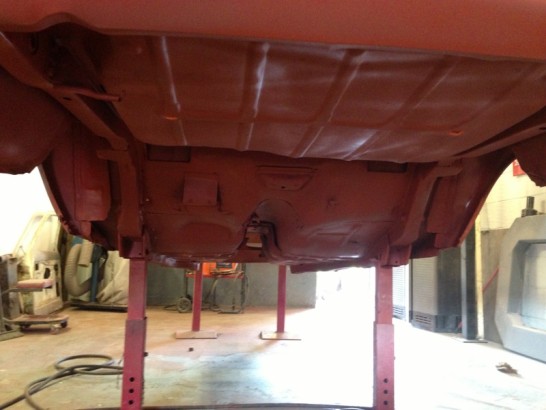

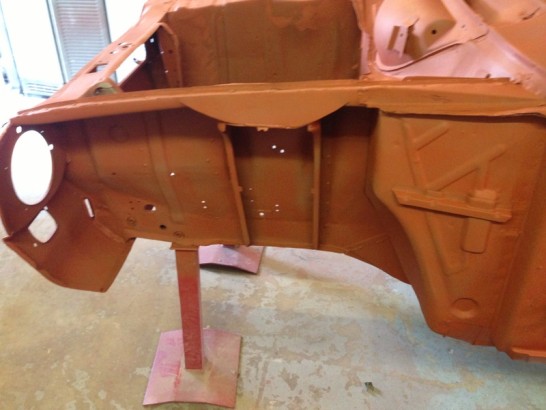

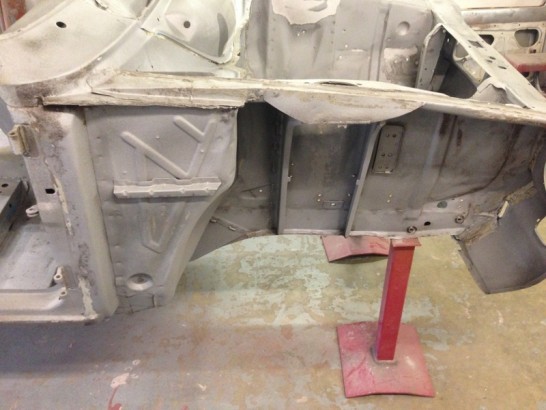

With the shell blasted its evident that the Escort is in excellent shape.

IMG_1842 IMG_1843 IMG_1844 IMG_1845 IMG_1846 IMG_1847 IMG_1848

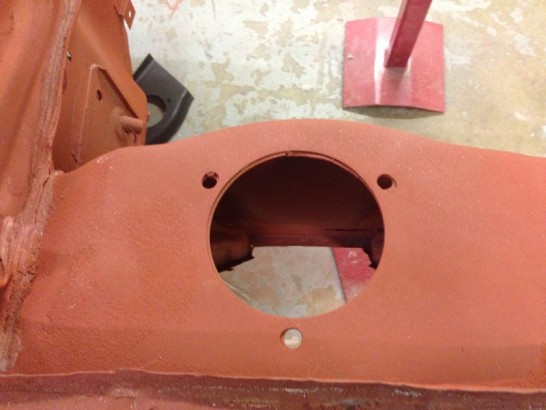

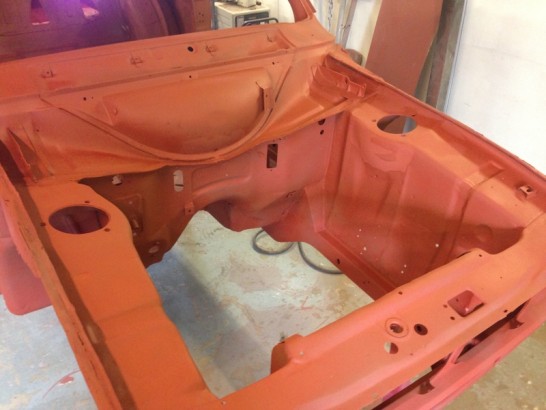

With the body shell zinc coated the fabrication can begin.



IMG_1674 IMG_1858

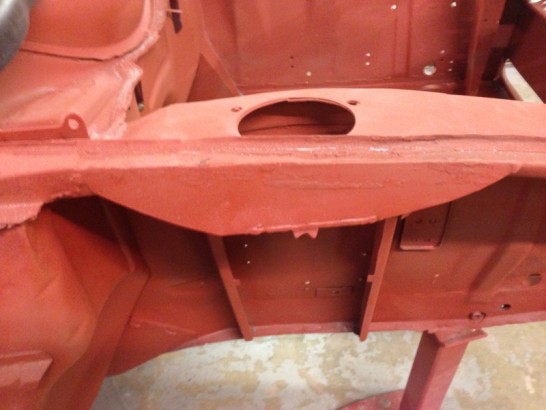

The homemade reinforcers will be removed and replaced with the correct items.

IMG_1859

IMG_1863

IMG_1864

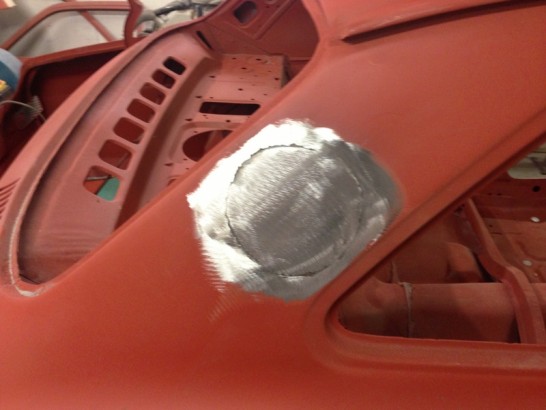

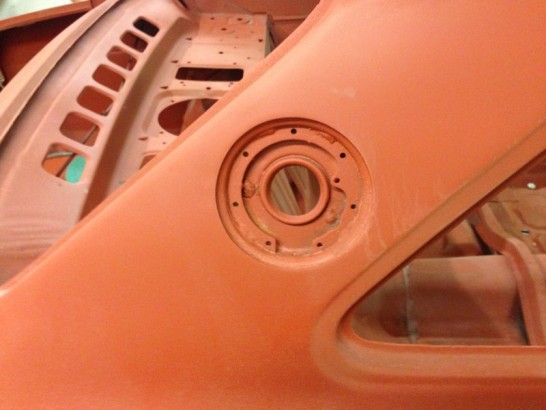

At some point an aero style fuel filler cap has been fitted in the rear post which need to be removed as an alloy tank will be fitted with the filler cap in the boot.

IMG_1881 IMG_1882 IMG_1884

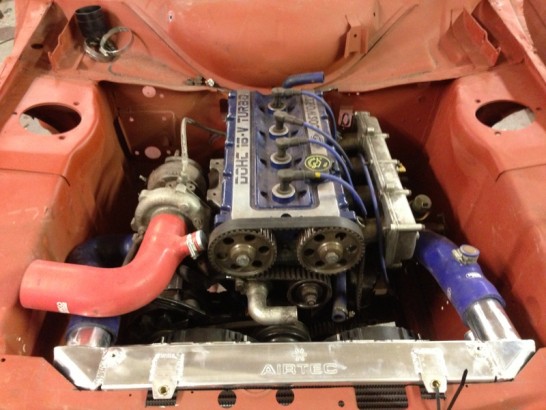

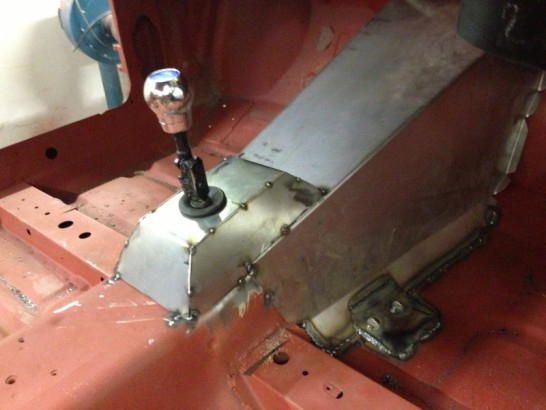

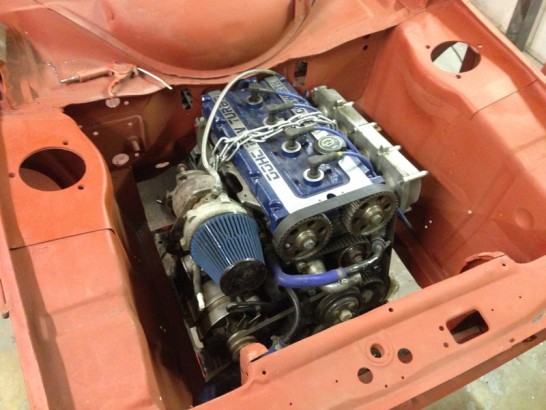

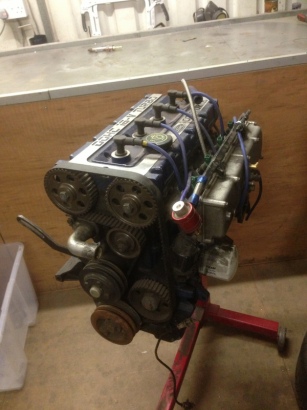

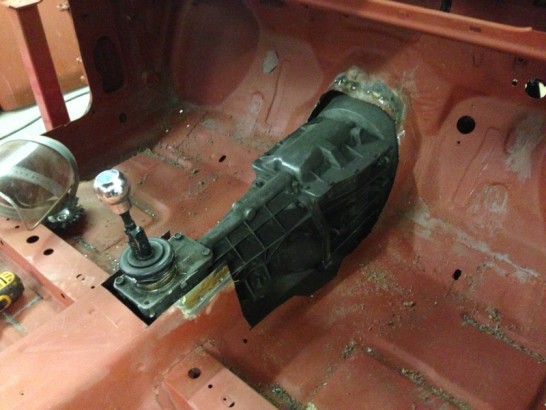

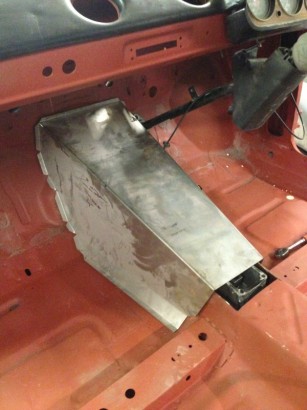

With the Cosworth engine and gearbox in place we can start modifying the transmission tunnel and fabricate the gearbox mounts.

IMG_1886 IMG_1887 IMG_1891 IMG_1900

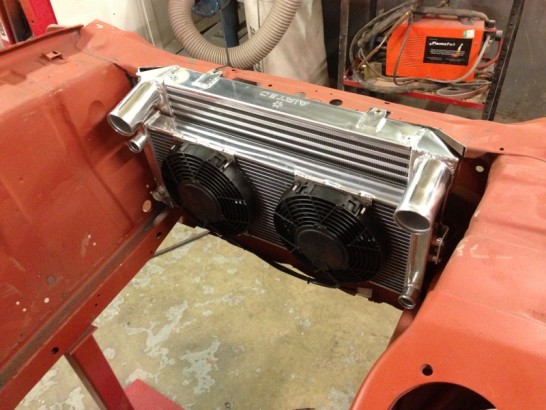

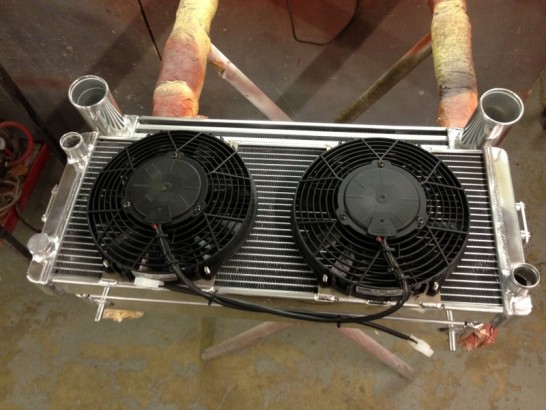

An Airtec radiator and intercooler will take care of the cooling.



IMG_1898

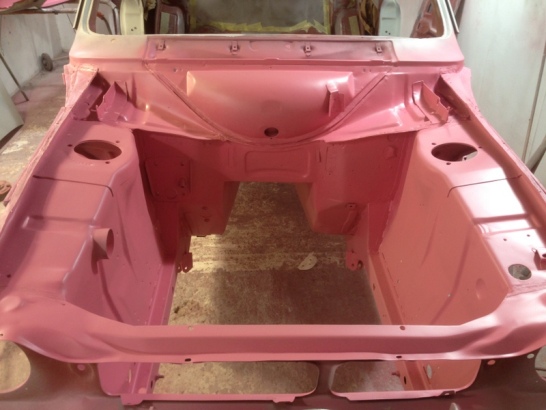

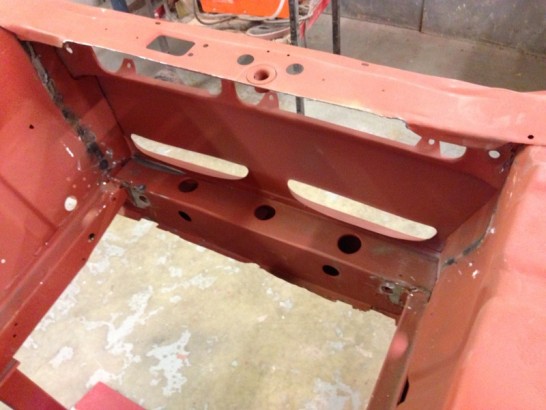

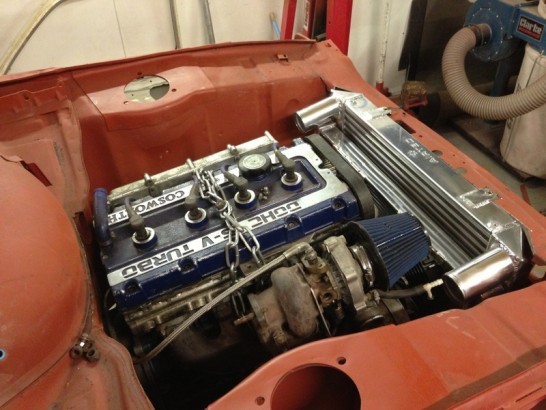

Due to the size of the rad/intercooler the original radiator towers and a large portion of the slam panel has had to be removed .

IMG_1923 IMG_1924 IMG_1925

IMG_1927

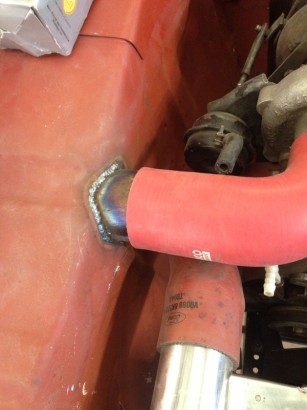

To avoid high intake temperatures and  limited space in the engine bay the air filter will be housed under the wing .

IMG_2417

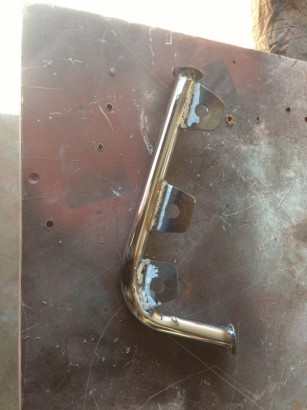

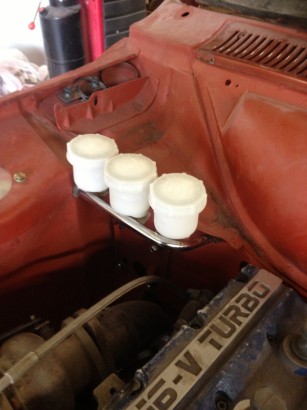

A bespoke mounting rail to house the brake and clutch resevoirs .

IMG_2422 IMG_2421

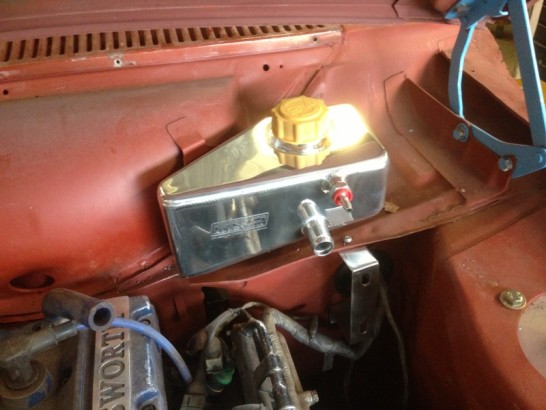

With very little to no space in the engine bay  and the new header tank  in the original washer bottle position we had to mount a slim line washer tank under the inner wing  and behind the headlight bowl with the filler neck protruding into the bay.

IMG_2427 IMG_2428 IMG_2436

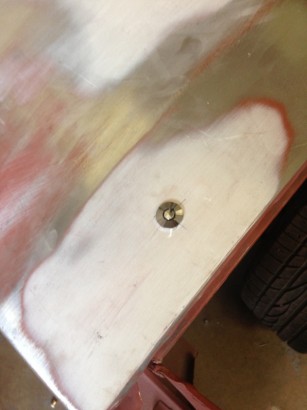

As we have had to remove most of the original slampanel and theoriginal bonnet catch a couple of discreet locking bonnet pins have been fitted to keep the bonnet secured..



IMG_2434

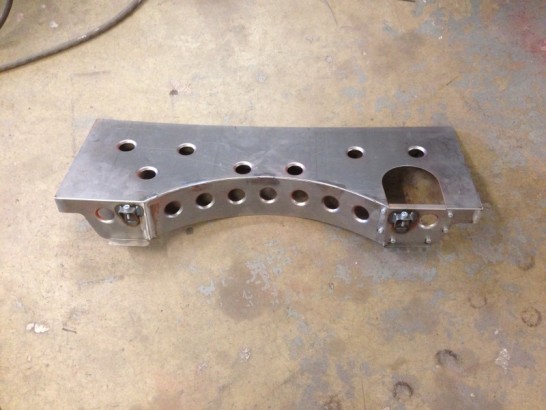

IMG_2430

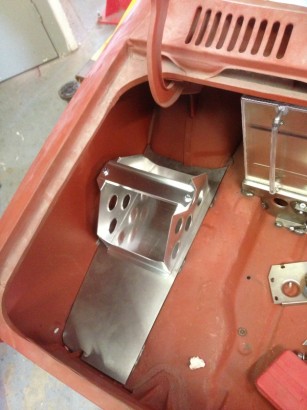

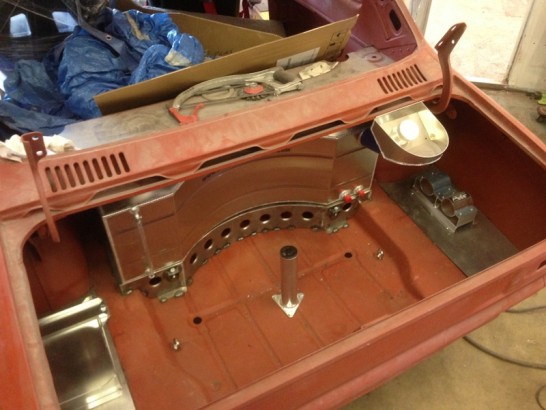

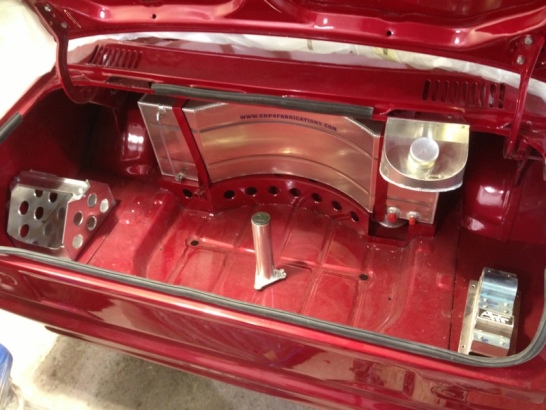

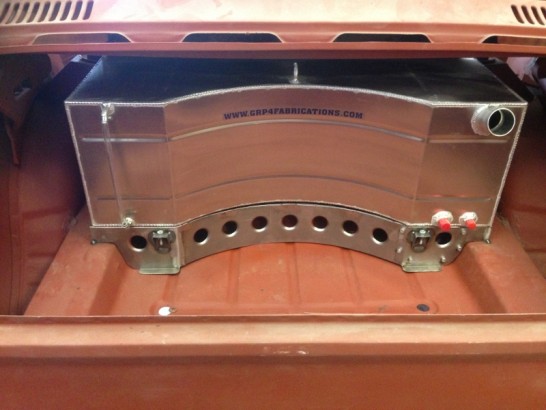

A group 4 fabrication tank with built in swirl pop and jic fittings.

IMG_2432

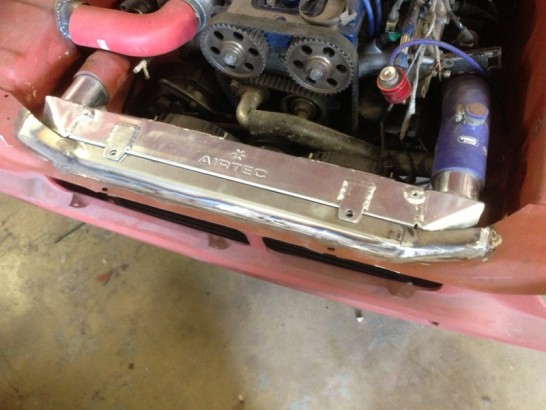

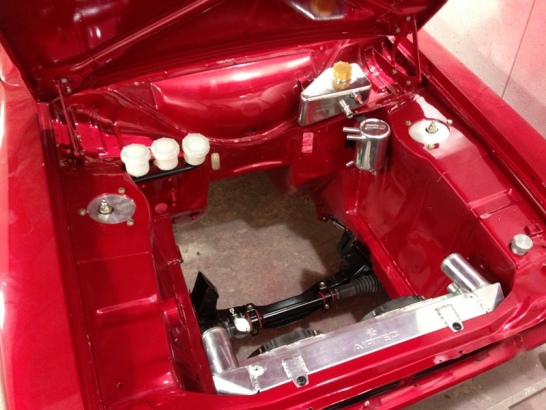

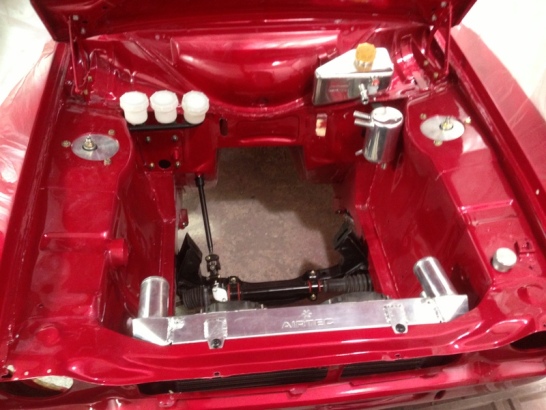

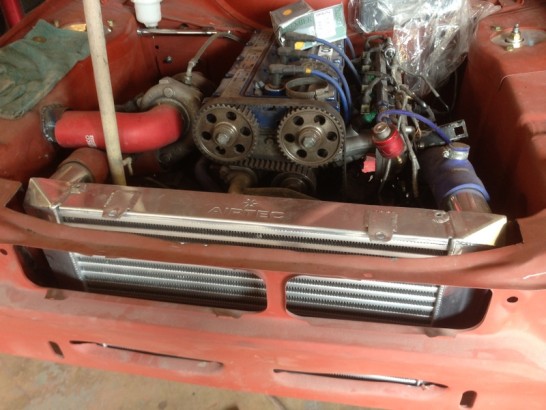

With the engine in and the rad/ intercooler in their final position the slam can be finnished off

IMG_2423 IMG_2435

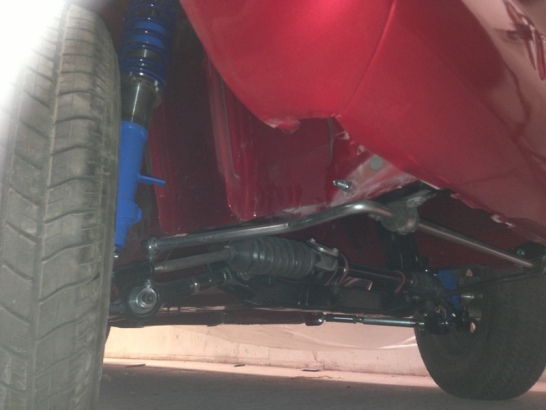

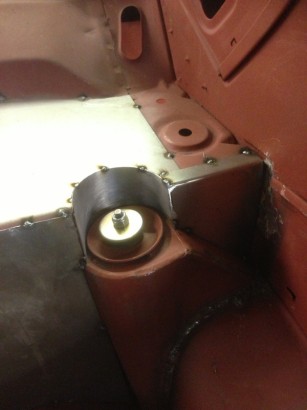

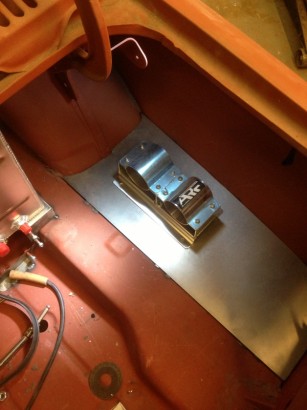

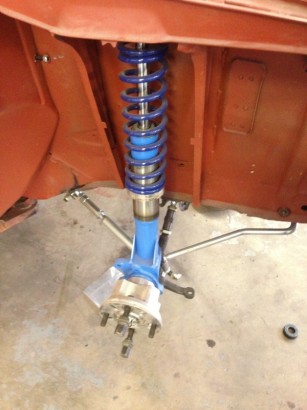

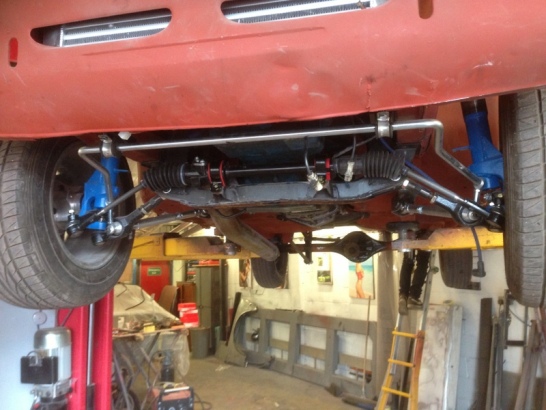

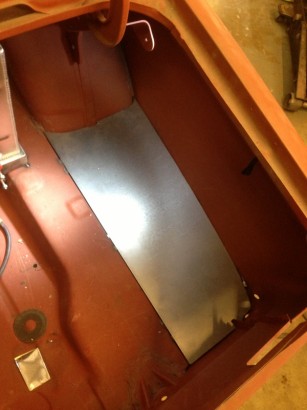

Compression struts, adjustable track control arms,RIX roll bar, GAZ coil overs and a quick rack takes care of the front end.

IMG_2418 IMG_2437 IMG_2438 IMG_2440

IMG_2442

IMG_2443 IMG_2445 IMG_2446

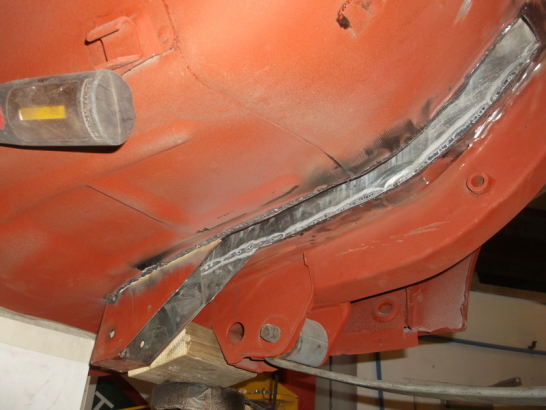

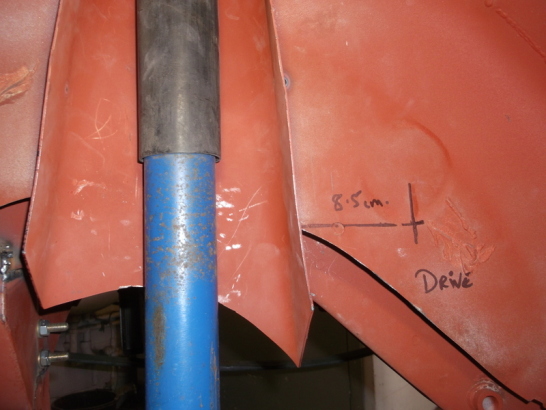

DSCF2642 DSCF2644 DSCF2646 DSCF2649 DSCF2655 DSCF2658 DSCF2661 DSCF2663 DSCF2673 DSCF2700 DSCF2714 DSCF2717 DSCF2724 DSCF2733 DSCF2741

IMG_2456

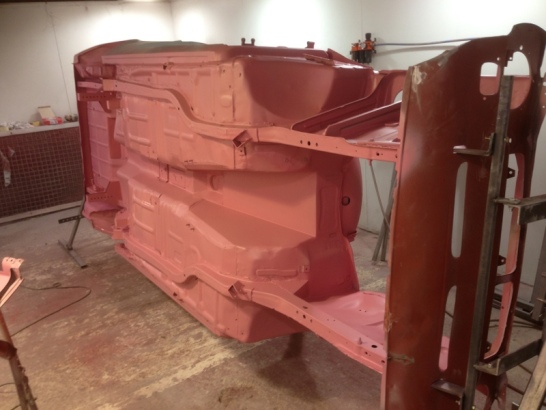

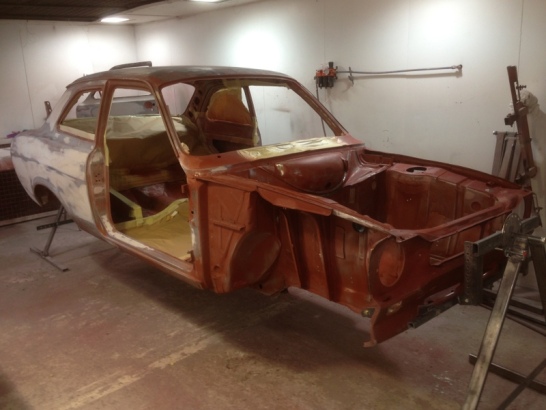

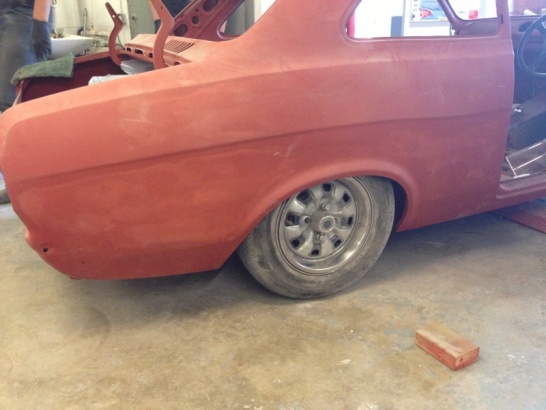

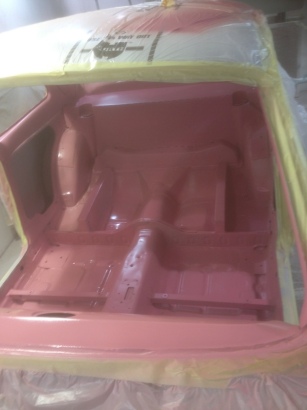

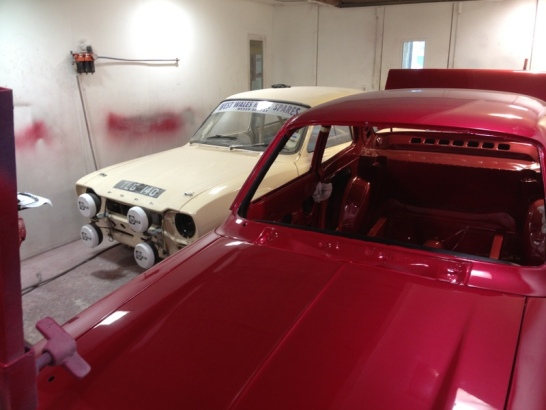

DSCF2819 DSCF2820 DSCF2821 DSCF2822 DSCF2823 DSCF2826 DSCF2827 DSCF2829 IMG_2174 IMG_2450 IMG_2451 IMG_2452 IMG_2454 IMG_2455 IMG_2466 IMG_2467 IMG_2468 IMG_2469 IMG_2472 IMG_2473 IMG_2474 IMG_2475 IMG_2476 IMG_2477 IMG_2478 IMG_2481 IMG_2486 IMG_2487 IMG_2536 IMG_2544 IMG_2546 IMG_2548 IMG_2551 IMG_2557 IMG_2559 IMG_2583 IMG_2584 IMG_2585 IMG_2586
