Mk 1 Capri X-pack (current restoration)


Owned by the current owner 30 years ago and sold 20 years ago he discovered his old Facelift capri  discarded in a local breakers yard.

Still complete and with the X-pack he had fitted on the car more than 2 decades ago the Capri looked as if a little cash and TLC could have it back on the road again, but after buying back his car, shipping it home and stripping the kit off the full horror of the corrosion became apparent.

After considering the costs and the amount of panels needed someone suggested fitting a floor pan and inner wings from a mk3, and as the MK1 facelift floor and chassis is almost identical the owner decided this was the way to go.

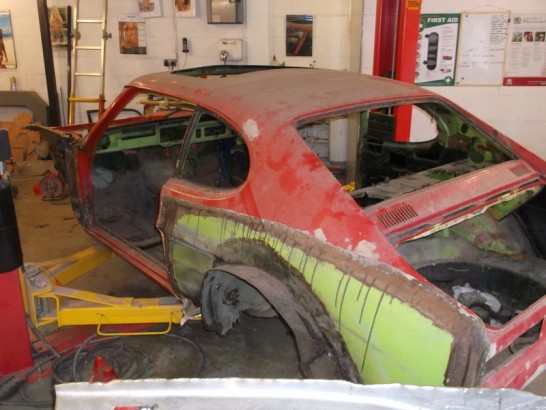

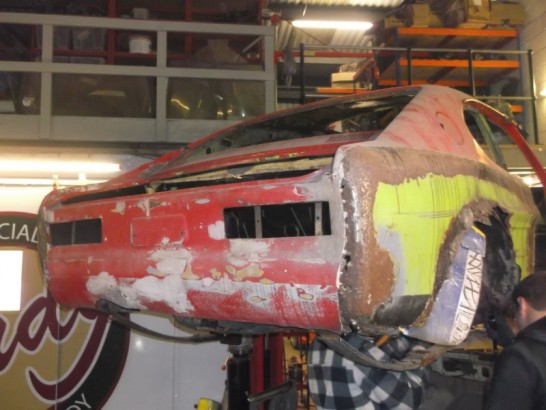

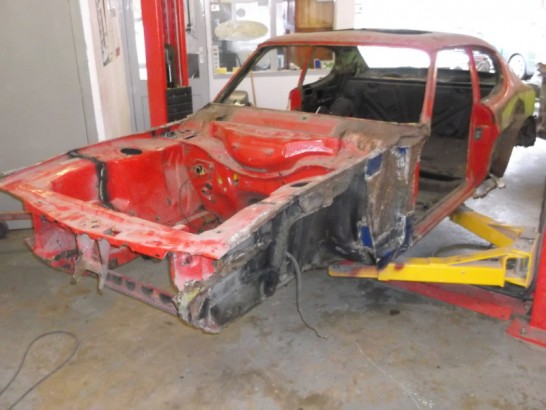

Arriving stripped and accompanied by a floor pan and inner wings donated from a MK3 Laser, a selection of panels and a new X-pack body kit.

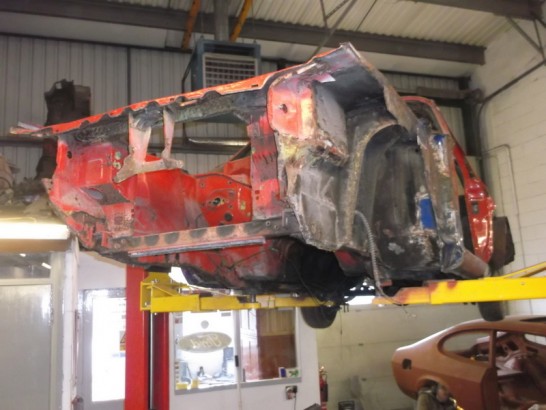

DSCF1931

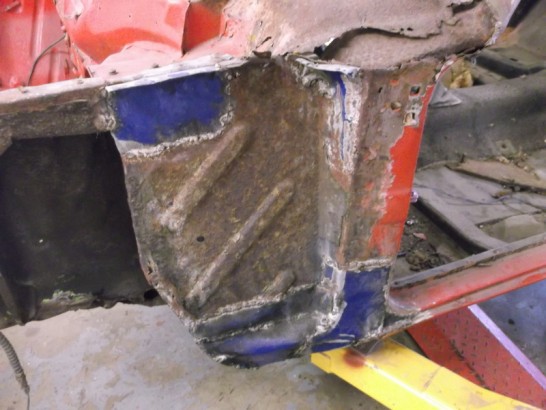

DSCF1934 DSCF1938 DSCF1939 DSCF1940

DSCF1941

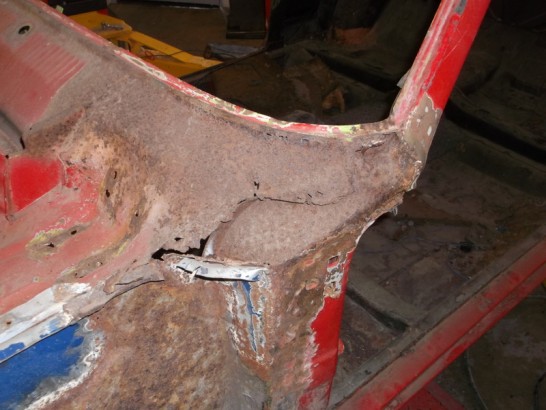

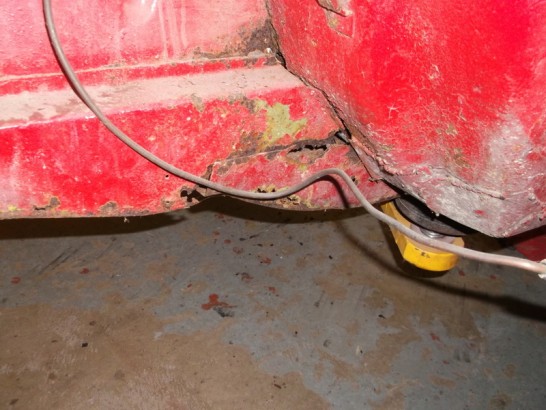

The corrosion is so bad that the chassis has collapsed at the front.

DSCF1942

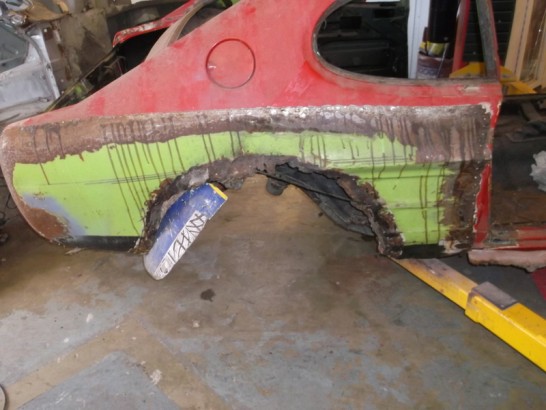

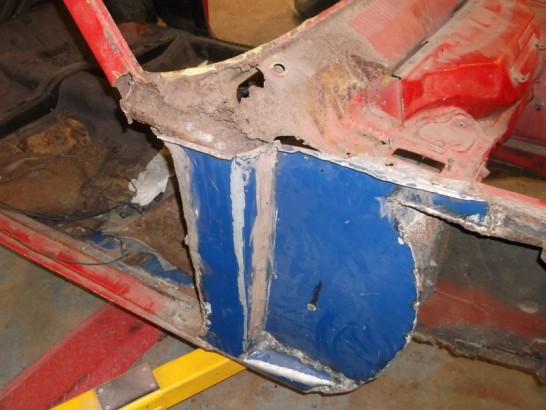

Before deciding on grafting in the MK3 floor the Capri was originally sent to a local garage to be repaired, but the owner was unhappy with the workmanship.



DSCF1943 DSCF1944 DSCF1945

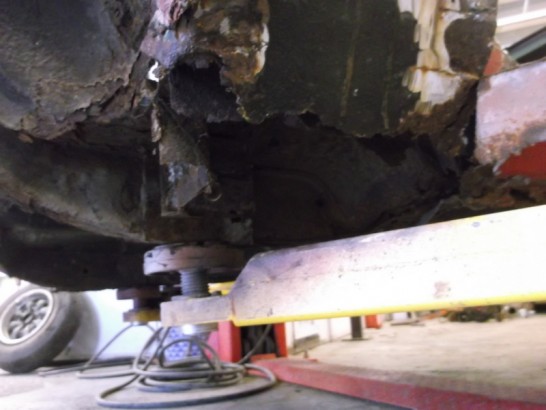

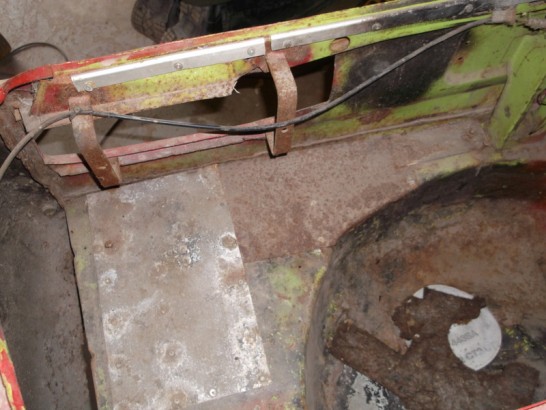

It was a surprise the leaf springs hadn’t dropped of the car.

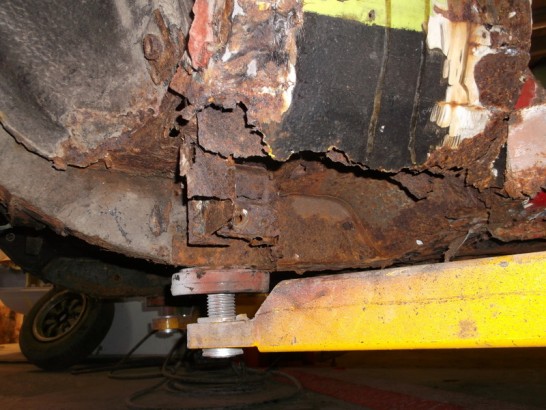

DSCF1946 DSCF1947

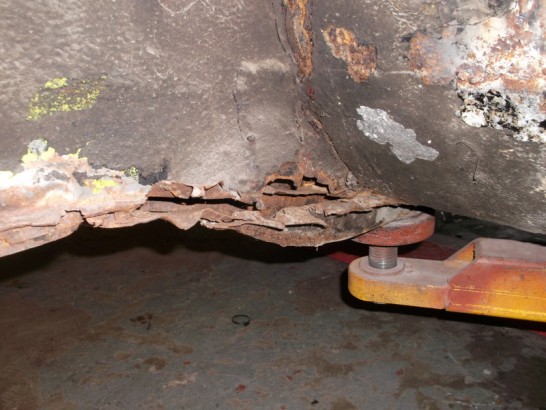

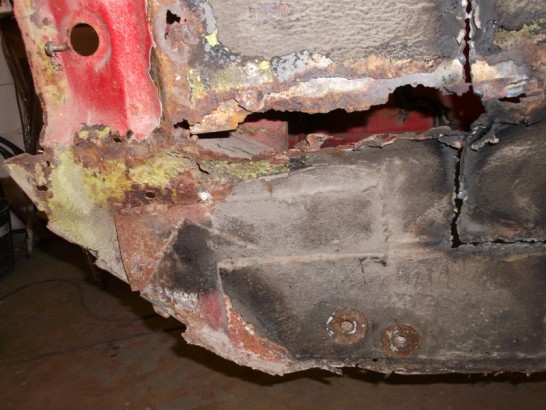

Some of the usual Mot style repairs.

DSCF1948 DSCF1950

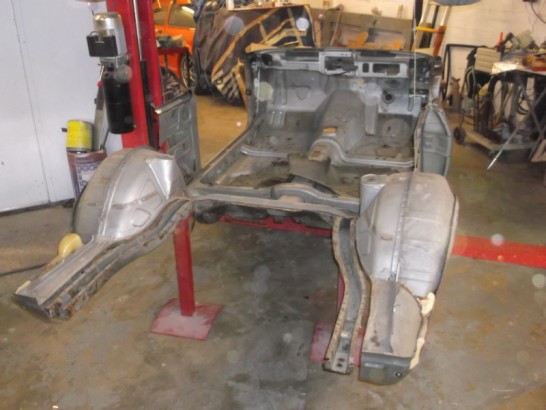

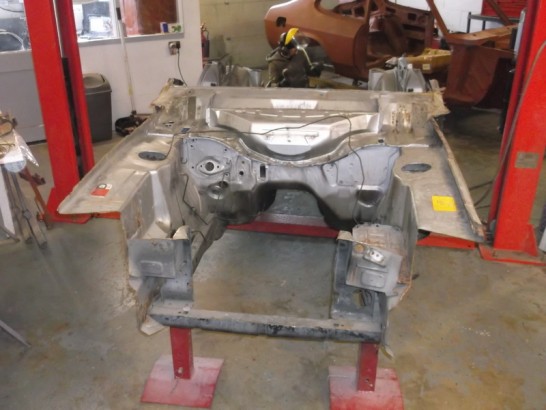

The MK3 floor pan is generally in good condition needing only a few repairs and a little trimming to ready it for fitting.

DSCF1930 DSCF1929

IMG_0932

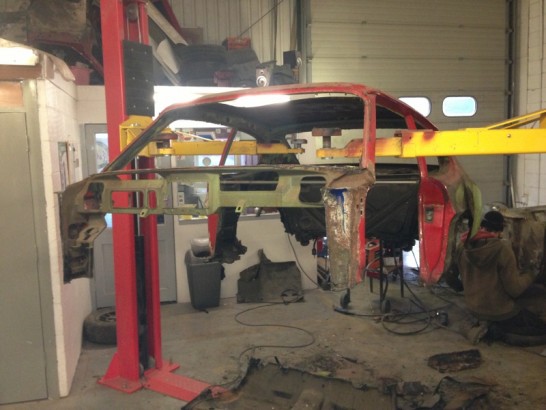

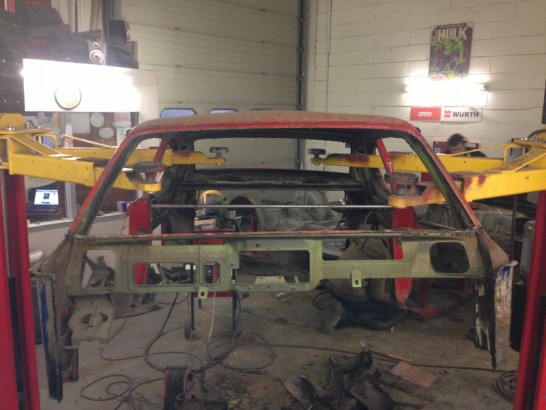

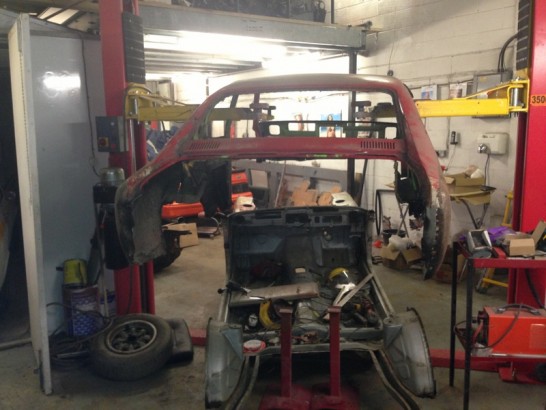

The first task is to remove all the unwanted rotten sections.The roof, A posts inner, outer  quarters and rear bulkhead and scuttle panel are all that remains.

IMG_0933 IMG_0935

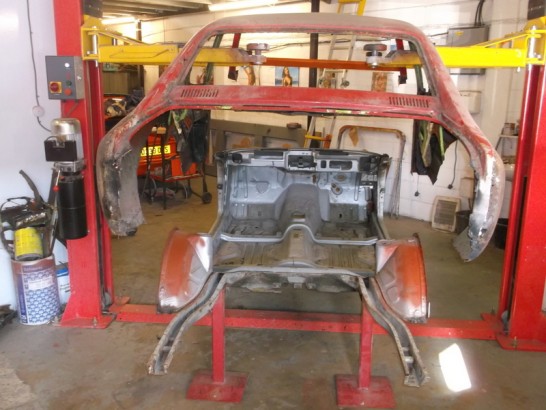

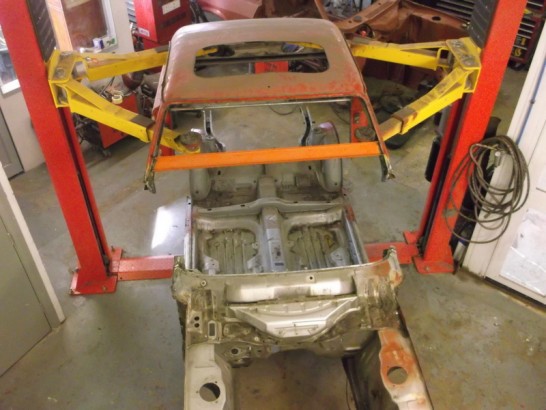

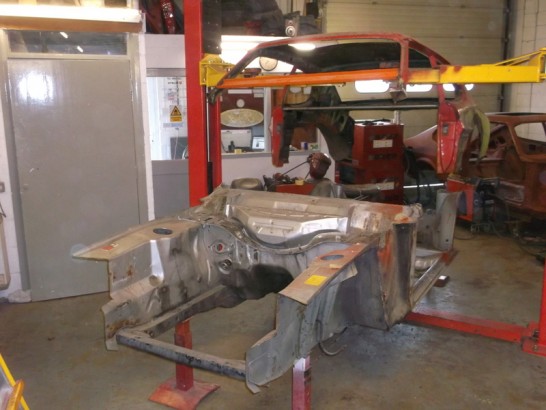

With both sections trimmed and the joins treated its time to lower the Mk1 upper portion on to the  MK3 floor.

DSCF1960 DSCF1961 DSCF1962

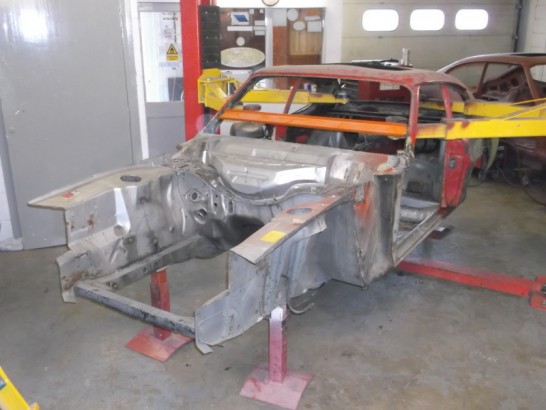

The measurements and alignments are double checked before welding the two halves together.

DSCF1964 DSCF1966

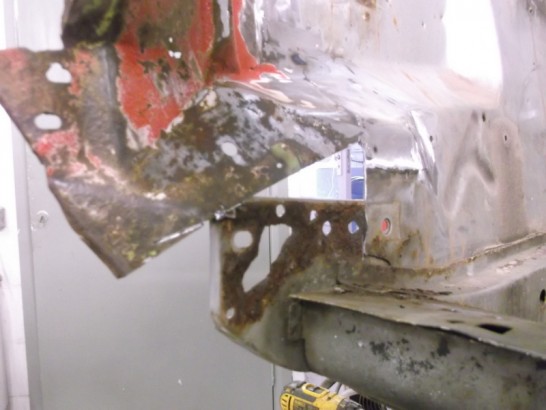

With the top and bottom joined its time to join the front section of inner wings and slam panel to the Mk3 inner wings.

DSCF1967

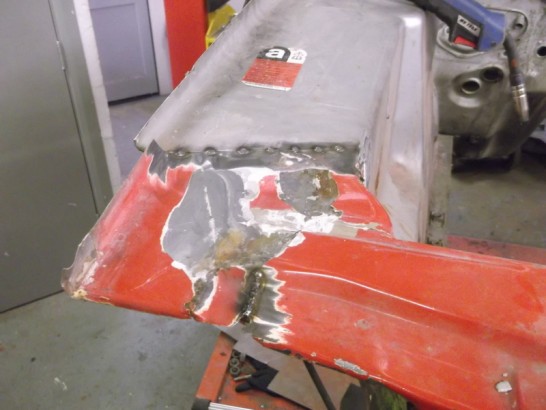

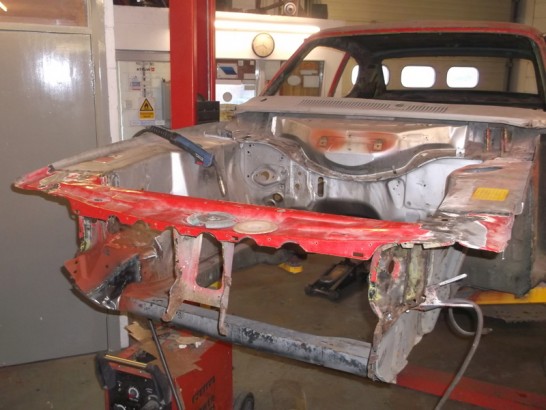

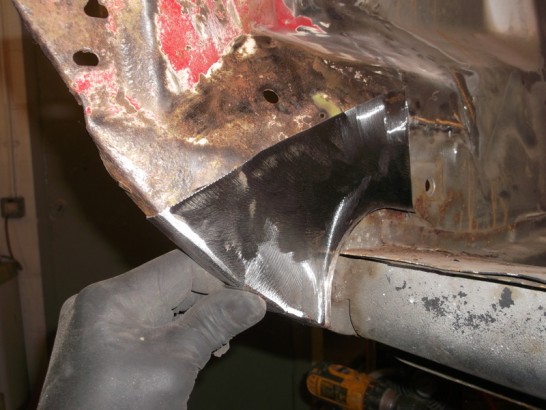

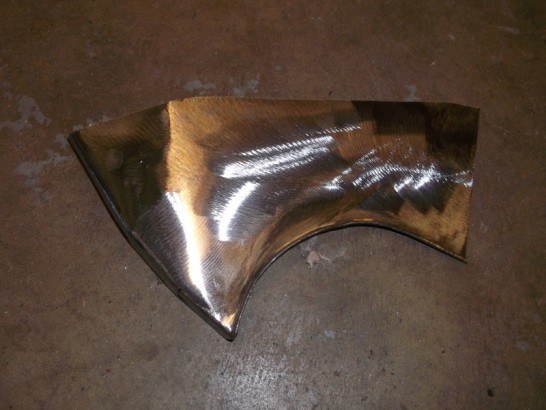

At the same time as grafting the front section on a few sections need rebuilding as they have corroded away.

DSCF1968 DSCF1969 DSCF1981 DSCF1983

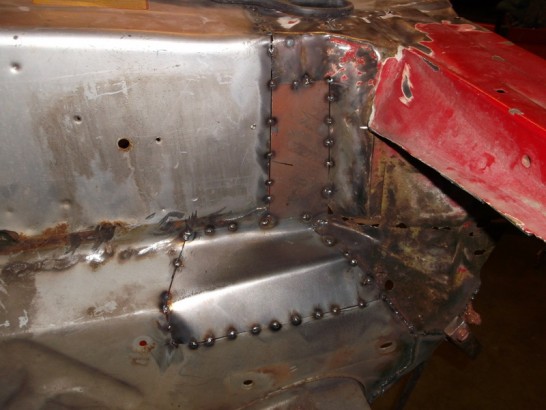

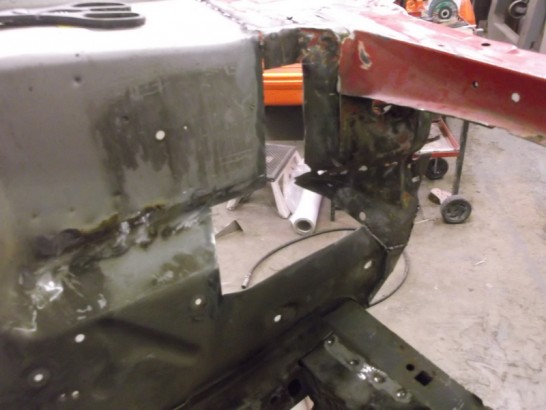

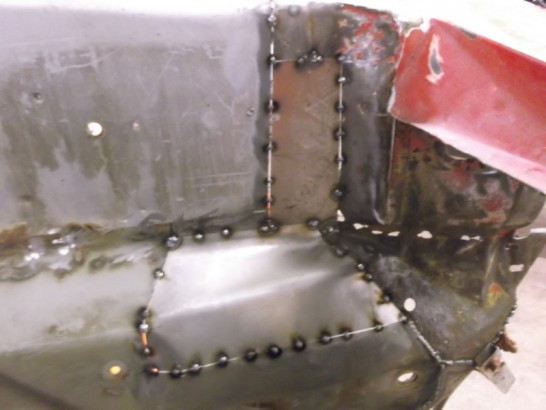

As the Mk3 inner wings and the Mk1 ones differ slightly an interim section has had to be fabricated.

DSCF1984 DSCF1985 DSCF1986

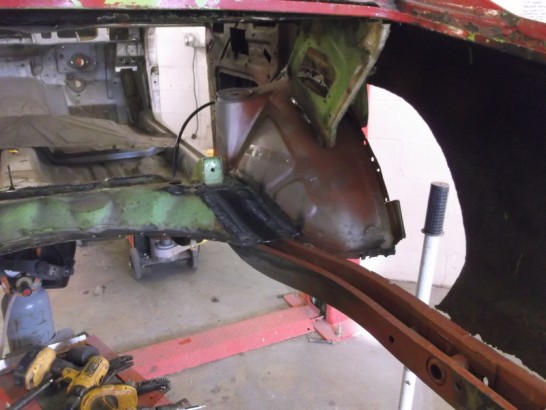

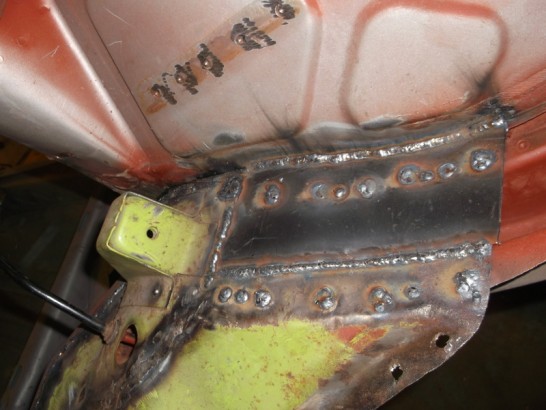

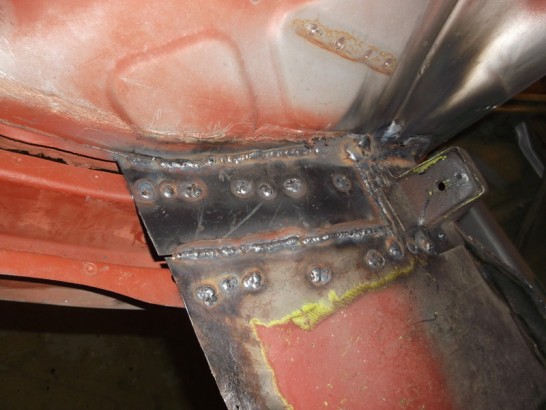

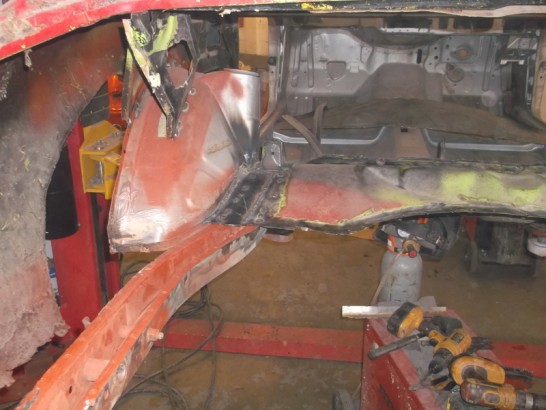

The Mk1 boot floor sections have been salvaged and grafted on to the Mk3 floor and chassis.



DSCF1971 DSCF1970 DSCF1975 DSCF1972

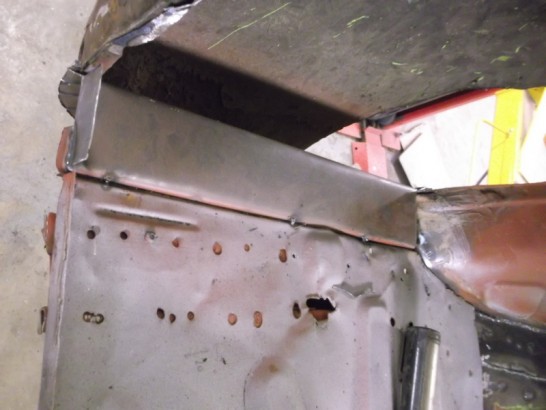

A couple of new boot floor drop side panels have been fabricated and fitted.

DSCF1993

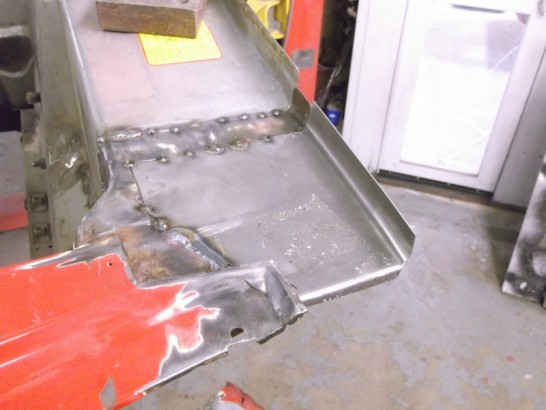

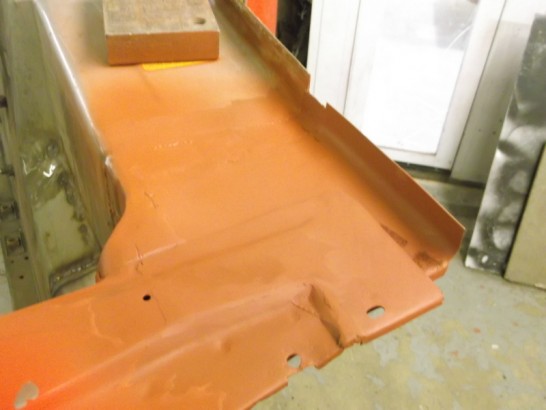

Some new inner wing sections and ends of the slam panel have been fabricated

DSCF1994. DSCF1995 DSCF1998

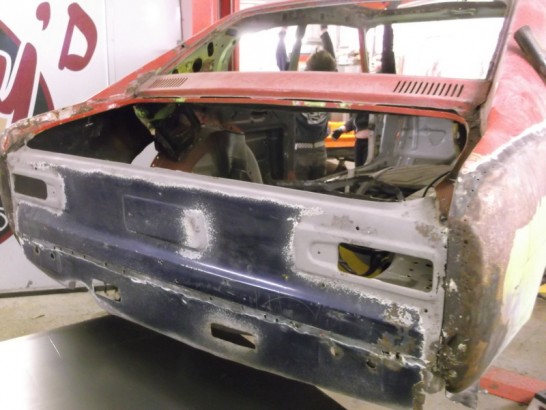

This is only a temporary rear panel to aid aligning the the rear quarters whilst ther’re being repaired and the wheel tub for the x-pack are fitted.

DSCF2001

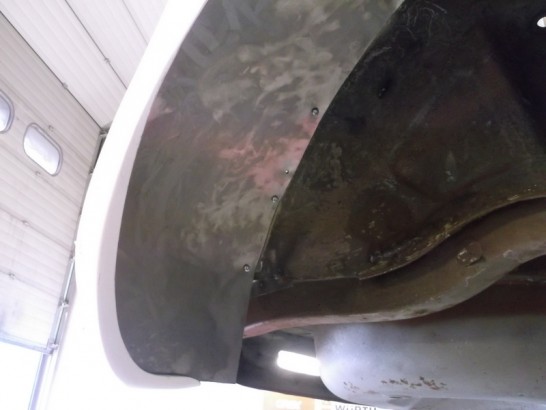

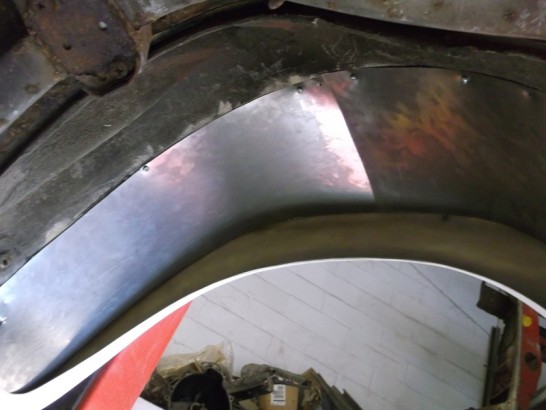

The wheel tub sections are fabricated and fitted.

DSCF2008 DSCF2010
